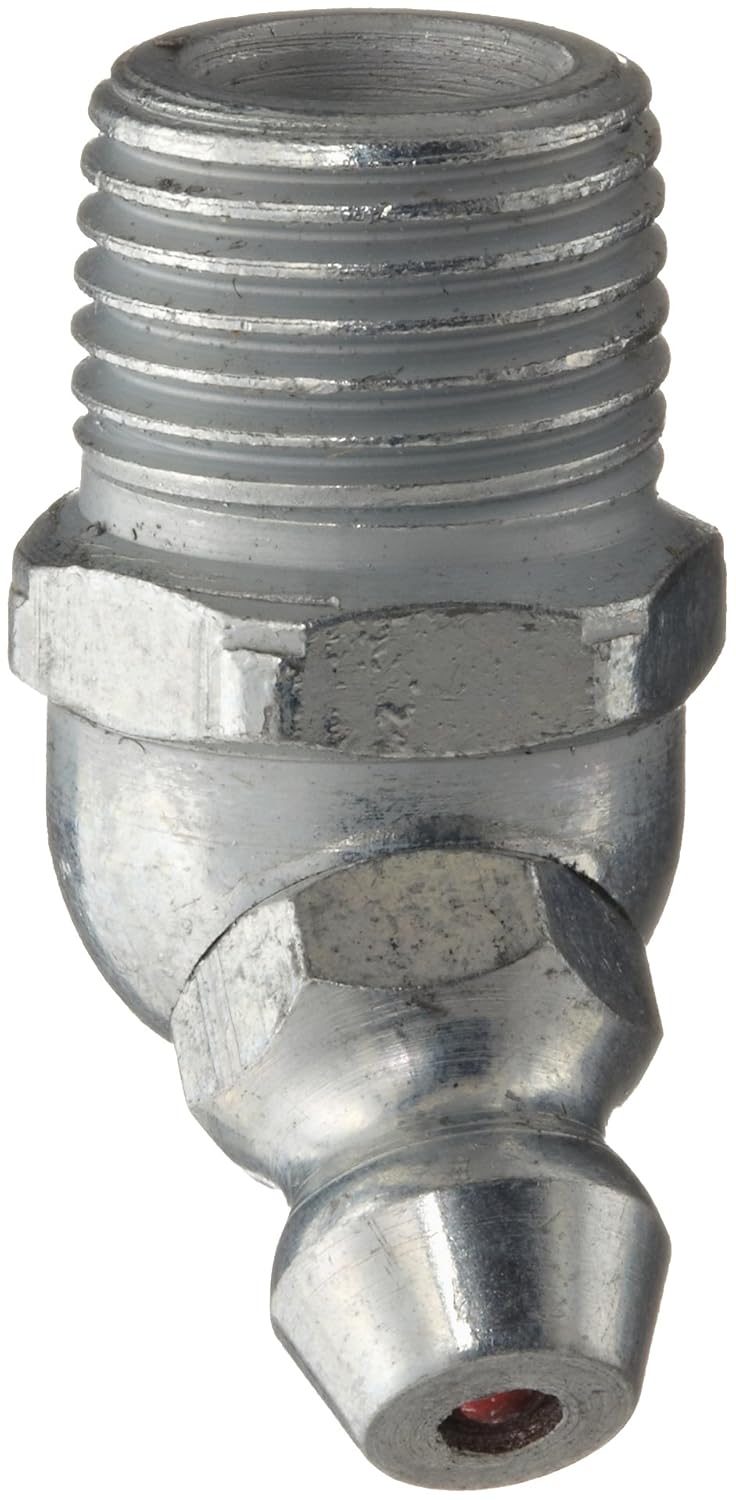

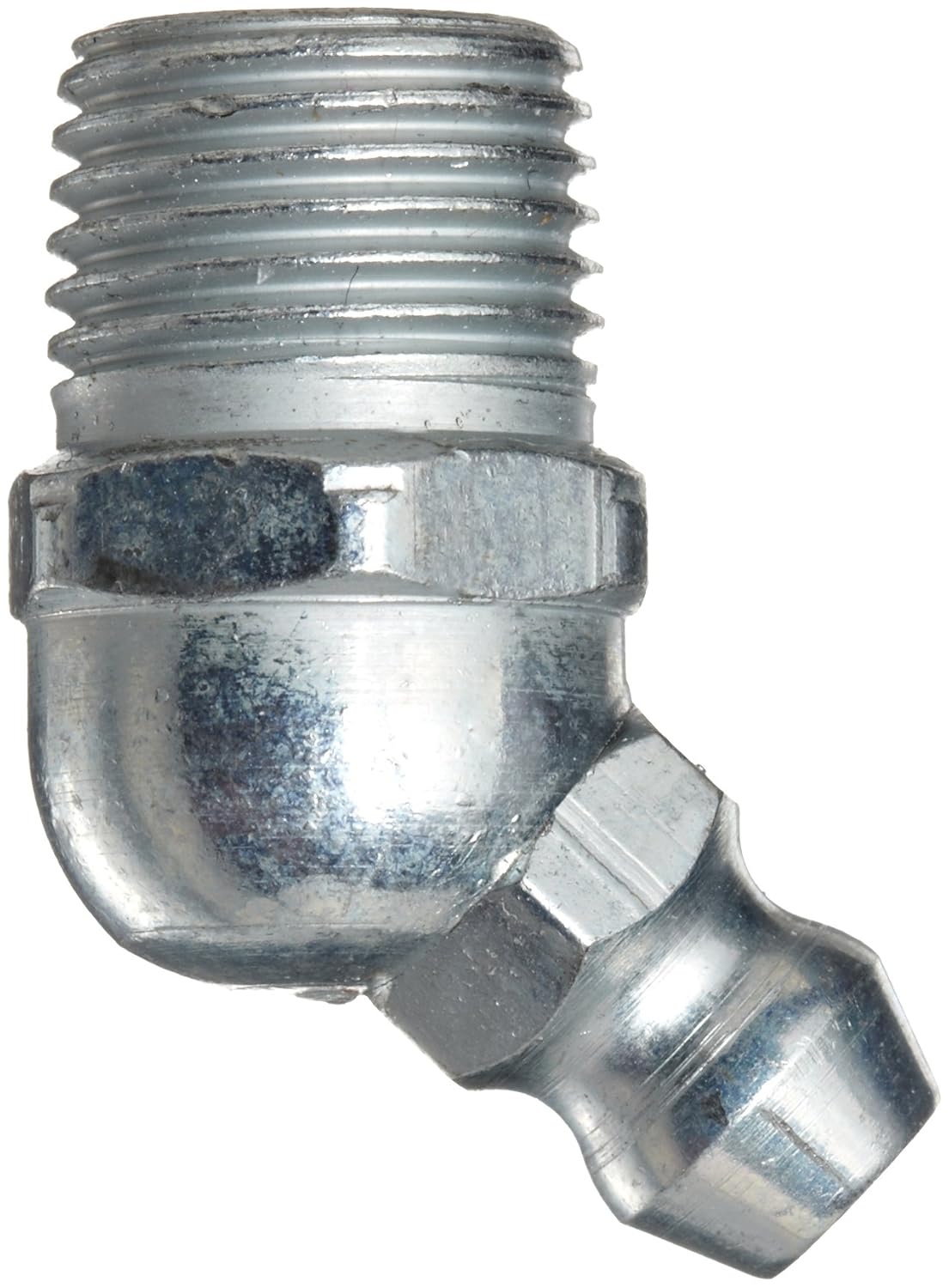

Alemite 1688-B Loose Fitting 45 Degree Angle SAE Special Short 1/8 Male PTF

Product Description

The Alemite 1688-B Loose Fitting provides an efficient solution for lubrication in mechanical systems. With a 45-degree angle and SAE Special Short, this fitting simplifies the lubrication process, especially in tight spaces.

• Grease fitting with 45-degree angle
• Trivalent zinc plating for corrosion resistance
• 1/8 male PTF connection

Product Highlights

The Alemite 1688-B Loose Fitting is designed for easy access with a grease gun. It features a trivalent zinc plating for enhanced resistance to corrosion, ensuring durability. The 1/8 male PTF-SAE Special Short connection minimizes tap travel, and a ball check valve helps exclude contaminants, making it suitable for industrial machines and heavy equipment.

Product Information

Standard Information

• Brand: Alemite
• MPN: 1688-B

Technical Specifications

• Material: Zinc
• Thread Type: PBT
• Connector Type: Barb
• Exterior Finish: Brass
• Dimensions: 7 x 7 x 6 inches
• Weight: 0.32 ounces
• Operating Pressure: 10,000 psi
• Wrench Size: 7/16 inches
• Shape: Elbow - 45 degrees
