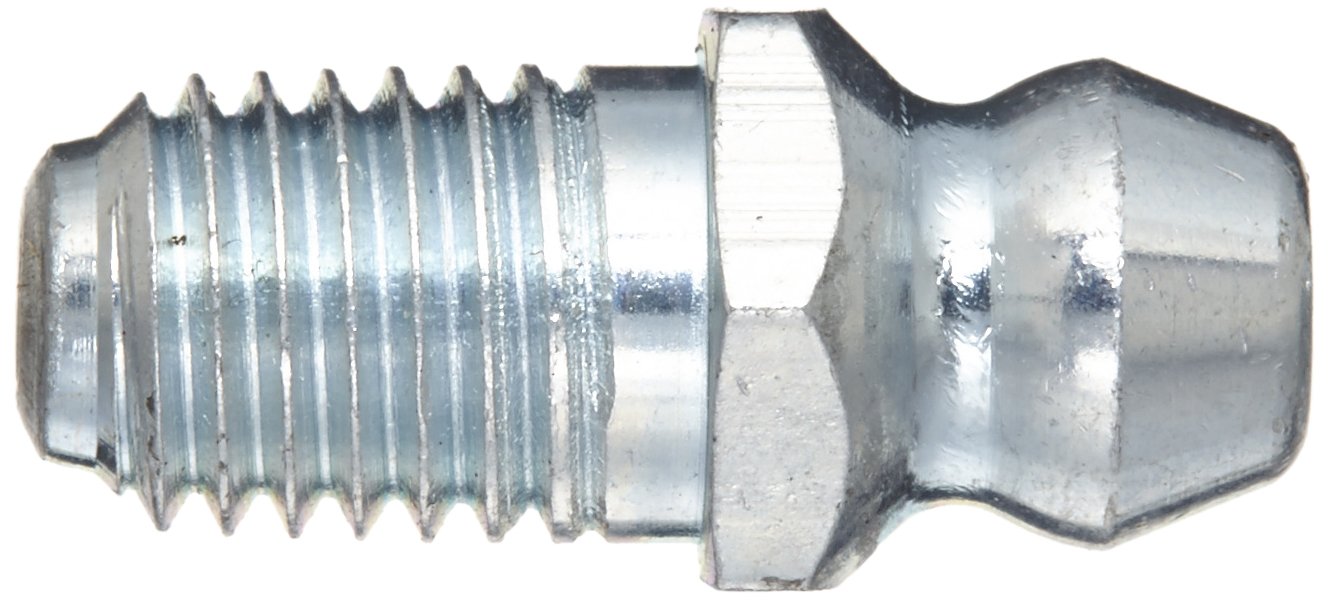

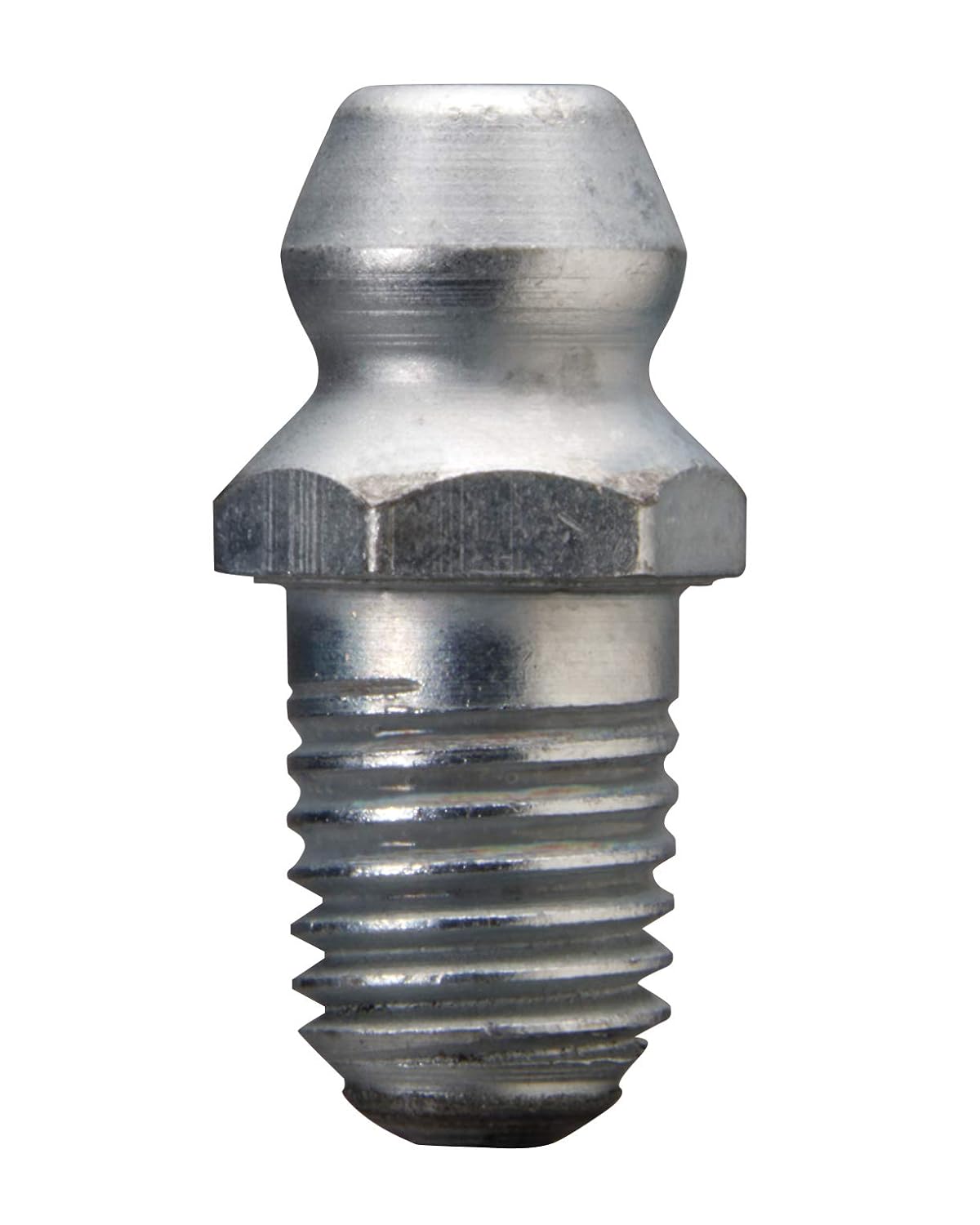

Alemite 1652-B Loose Fitting Straight SAE LT Special 1/4 Male Taper

Product Description

The Alemite 1652-B Loose Fitting is a specially designed straight fitting with an SAE LT taper thread, featuring a 1/4-inch male taper. This hydraulic fitting is engineered for industrial applications and is made from high-quality steel with a trivalent zinc plating. It meets SAE J534 standards and is suitable for automotive and industrial machinery.

• Overall Length: 11/16 inch
• Shank Length: 23/64 inch
• Hex Size: 5/16 inch

Product Highlights

Designed for use in hydraulic systems, the Alemite 1652-B provides reliable performance in high-pressure environments. It has a dirt-excluding check ball and exceeds the 72-hour salt spray test for corrosion resistance. The fitting's SAE-LT threads ensure a secure and efficient assembly into 1/4-28 UNF threaded holes.

Product Information

Standard Information

• Manufacturer: Alemite
• Brand: Alemite
• Model: 1652-B
• Category: Fittings

Technical Specifications

• Overall Length: 11/16 inch
• Shank Length: 23/64 inch
• Hex Size: 5/16 inch
• Thread Size: 1/4-28 taper thread (SAE-LT)
• Material: Steel with trivalent zinc plating
• Compliance: RoHS
• Pressure Rating: Max 10,000 psi
• Made In: US
