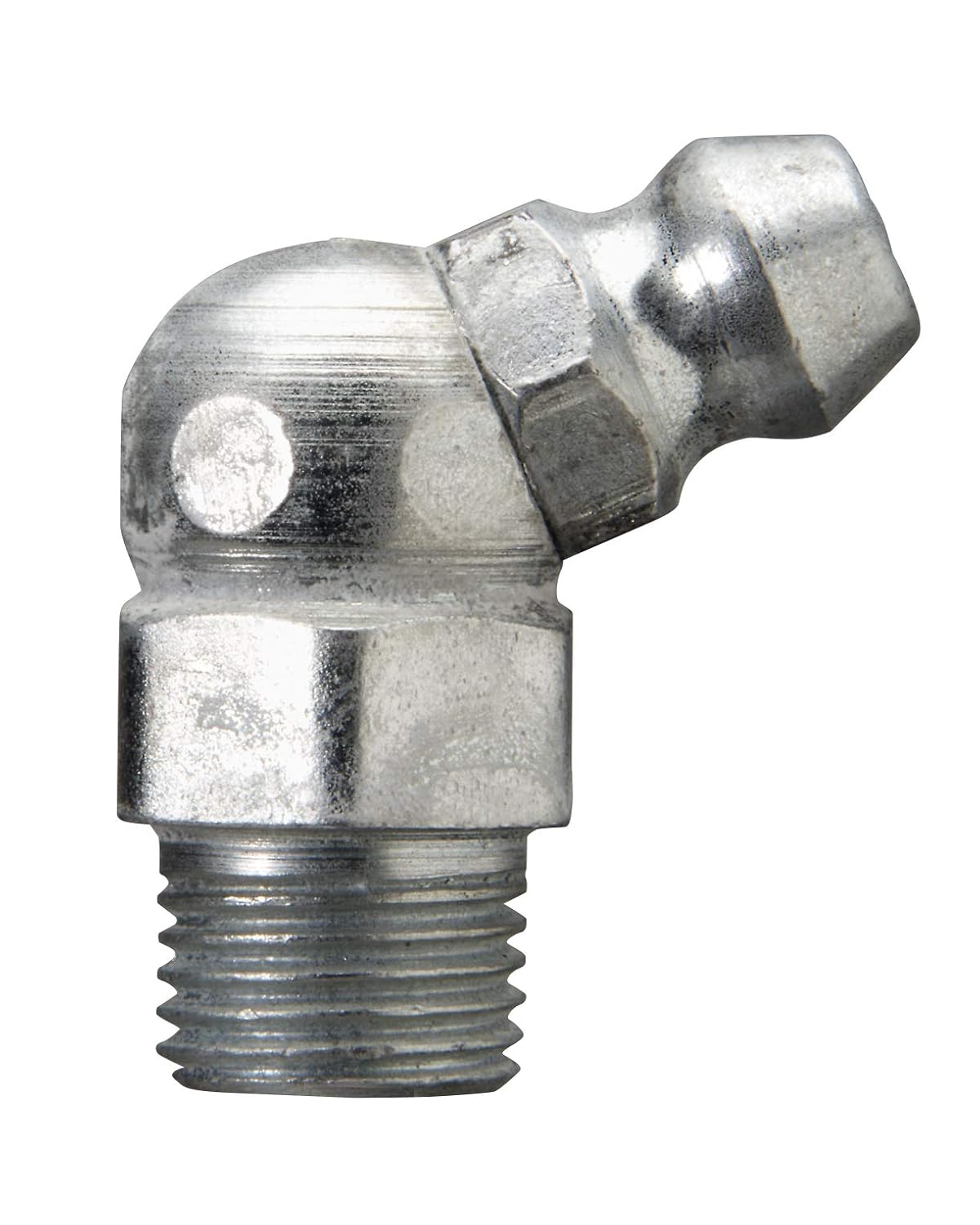

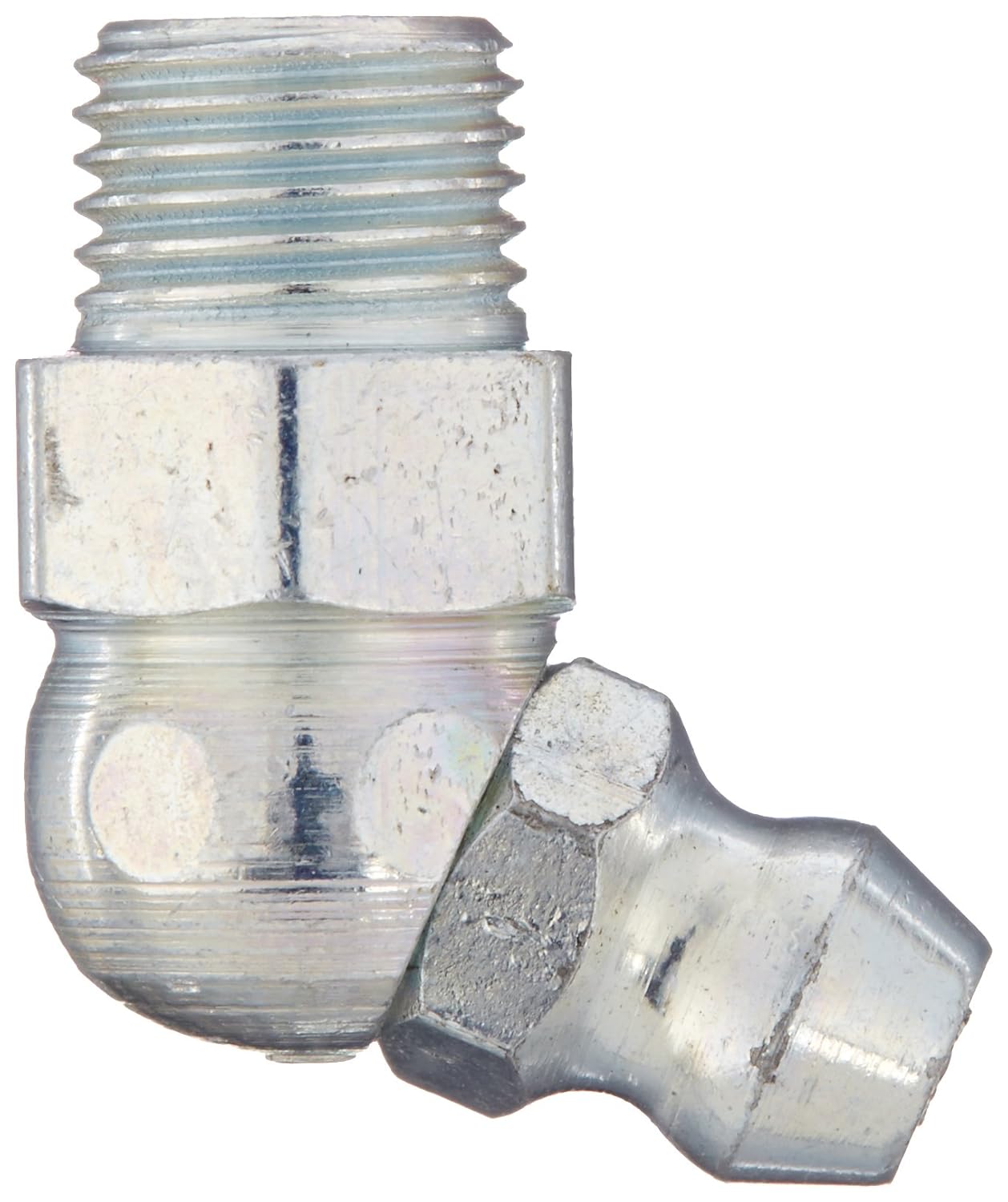

Alemite 1648-B1 Special Thread Fitting 65 Degrees 5/16 UNEF-2A

Product Description

The Alemite 1648-B1 Special Thread Fitting is designed for industrial machines and equipment. This fitting features male 5/16-32 UNEF-2A threads for attachment to female-threaded receptacles. The nozzle is angled at 65 degrees to improve access in tight spaces. Made of zinc-plated steel, this fitting provides strength, durability, and corrosion resistance. Additionally, it includes a check ball to protect from dirt and is compliant with RoHS hazardous substance regulations.

• Angled lubrication hex fitting
• Made of zinc-plated steel
• Male 5/16-32 UNEF-2A threads

Product Highlights

This fitting is ideal for use with a wide range of industrial equipment for lubrication applications. Its 65-degree angle allows for improved access in confined spaces, and the zinc-plated steel construction ensures durability and corrosion resistance.

Product Information

Standard Information

• Brand: Alemite
• MPN: 1648-B1
• Category: Automotive > Replacement Parts > Fuel System > Fittings
• Manufacturer: Alemite

Technical Specifications

• Color: Silver
• Material: Steel
• Thread Size: 0.3125 inch
• Thread Type: UNEF-2A
• Connector Type: Unef-2a
• Exterior Finish: Zinc
• RoHS Compliant: Yes
• Angle: 65 degrees
• Shank Length: 0.17 inch
• Overall Length: 0.80 inch
