Alarm Lock DL2700IC/10B Trilogy Electronic Pushbutton Lock

Product Description

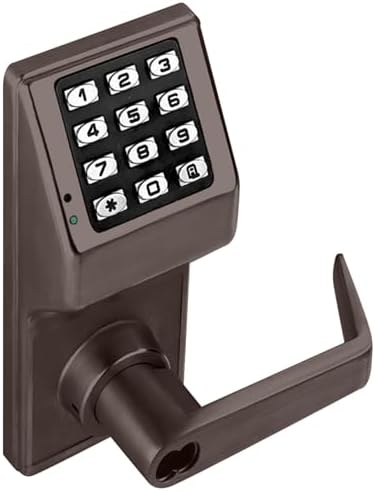

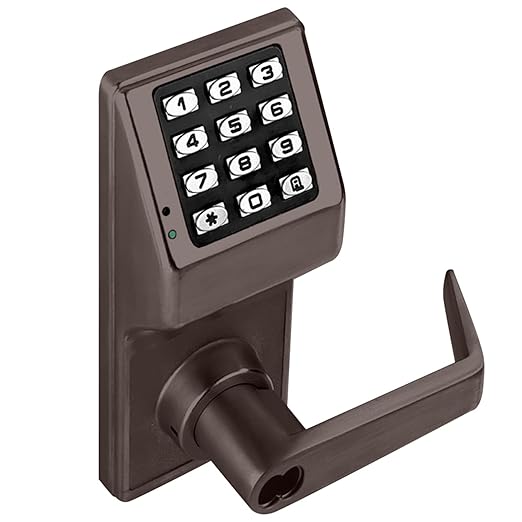

The Alarm Lock DL2700IC/10B Trilogy Electronic Pushbutton Lock is a digital pushbutton lock supplied with a cutout for standard Best and compatible IC cores. It features a clutch mechanism for reliability and a heavy-duty trim design with a programmable 12-digit metal keypad. The lock is battery-powered and provides visual and audible entry indicators.

• Clutch mechanism offers exceptional reliability and strength
• Super Heavy-duty trim design with self-contained, fully programmable 12 digit metal keypad
• Battery powered for long-life dependability & audible low power alert

Product Highlights

This electronic pushbutton lock is non-handed for easy installation and offers remote override or key bypass capability. It is UL Listed Grade One and meets BHMA specifications.

Product Information

Standard Information

• Brand: ALARM LOCK
• Manufacturer Part Number: DL2700IC/10B

Technical Specifications

• Special Feature: Alarm
• Lock Type: cylinder
• Material: Zinc
• Series: Trilogy T2 DL2700
• Function: Keypad w/ Key Override
• Lockset type: Cylindrical Lock
• Lever Style: Straight Lever
• Cylinder: SFIC Prep Less Core
• DOOR THICKNESS: 1 5/8" to 1 7/8".
• BACKSET: 2 3/4" Standard. 2 3/8" backset also available
• KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
• STANDARD KEY OVERRIDE CYLINDER: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks.

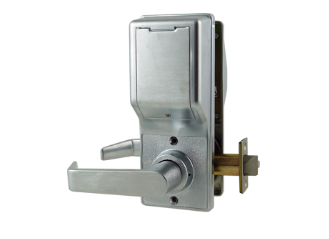

• LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
• STRIKE: 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
• LATCH FRONT: 1 1/8” x 2 1/4” wrought brass or stainless steel
• HANDING: Non-handed
• CYLINDER TYPE: SFIC Prep Less Core

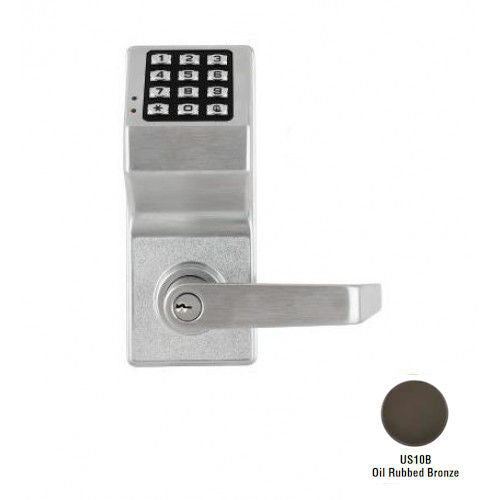

• FINISHES: US3 polished brass, US26D satin chrome, 10B Duronodic
• POWER: 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
• DOOR PREP: Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes
• COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets
• Model: Alarm Lock DL2700IC
• INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
