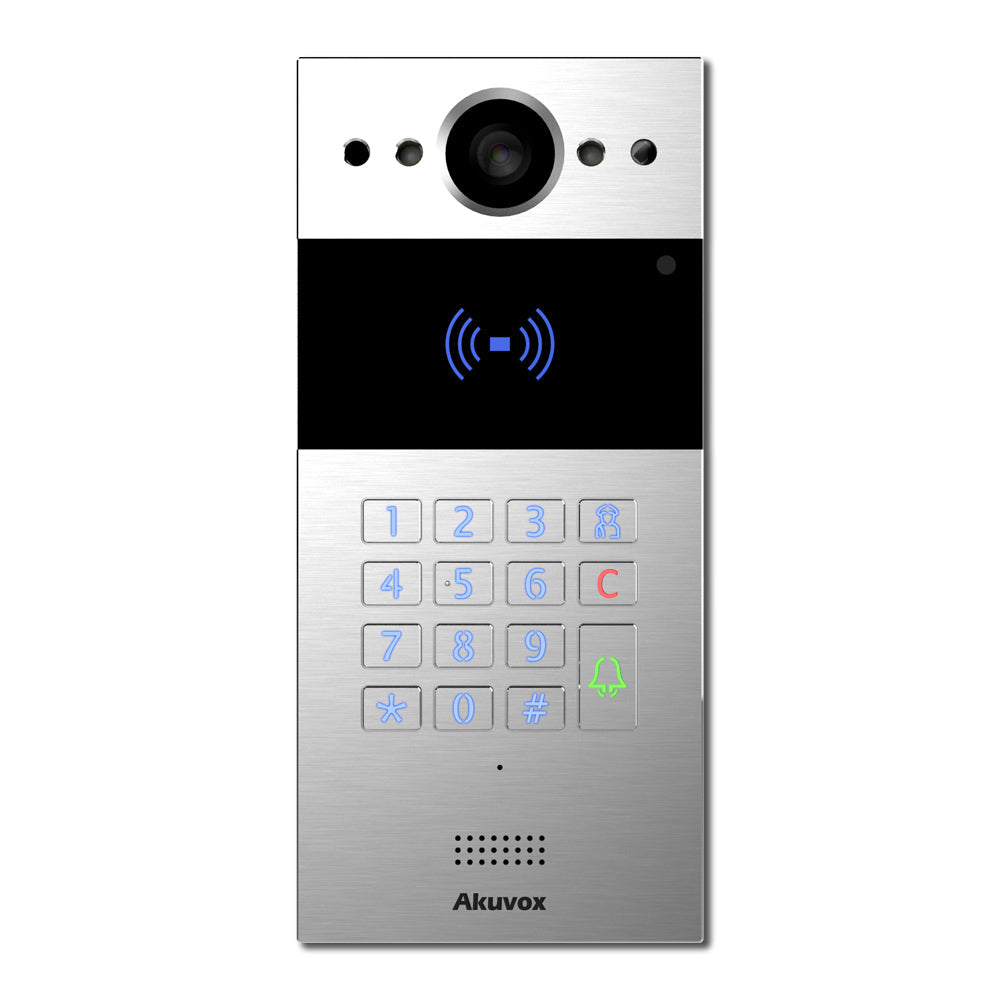

Akuvox R20K Video Door Phone with Numeric Keypad

Product Description

The Akuvox R20K is a compact video door phone with a numeric keypad, ideal for multi-unit residential and office buildings. It features 2 output relays, Wiegand, RS485, 2 input ports, a camera, and a built-in card reader compatible with both 13.56 MHz and 125 kHz cards. It supports PoE and ONVIF standard for easy integration.

• Equipped with a vandal-resistant body and numeric keypad.
• Features a wide-angle camera with 110° (H) and 58° (V) viewing angles.
• Supports two-way audio communication over IP networks with echo cancellation.

Product Highlights

Compact video door phone with keypad and card reader, suitable for offices and apartments, offering easy integration and secure access control.

Product Information

Standard Information

• Brand: Akuvox
• Manufacturer Part Number: R20K

Technical Specifications

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Microphone: -40dB
• Sensor: 1/2.7”, CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264, H.265
• Video resolution: up to 1920×1080
• Max. image transfer rate: 1080p – 25fps
• Viewing angle: 110°(H) / 58°(V)
• SIP: SIP v1 (RFC2543), SIP v2 (RFC3261)
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
