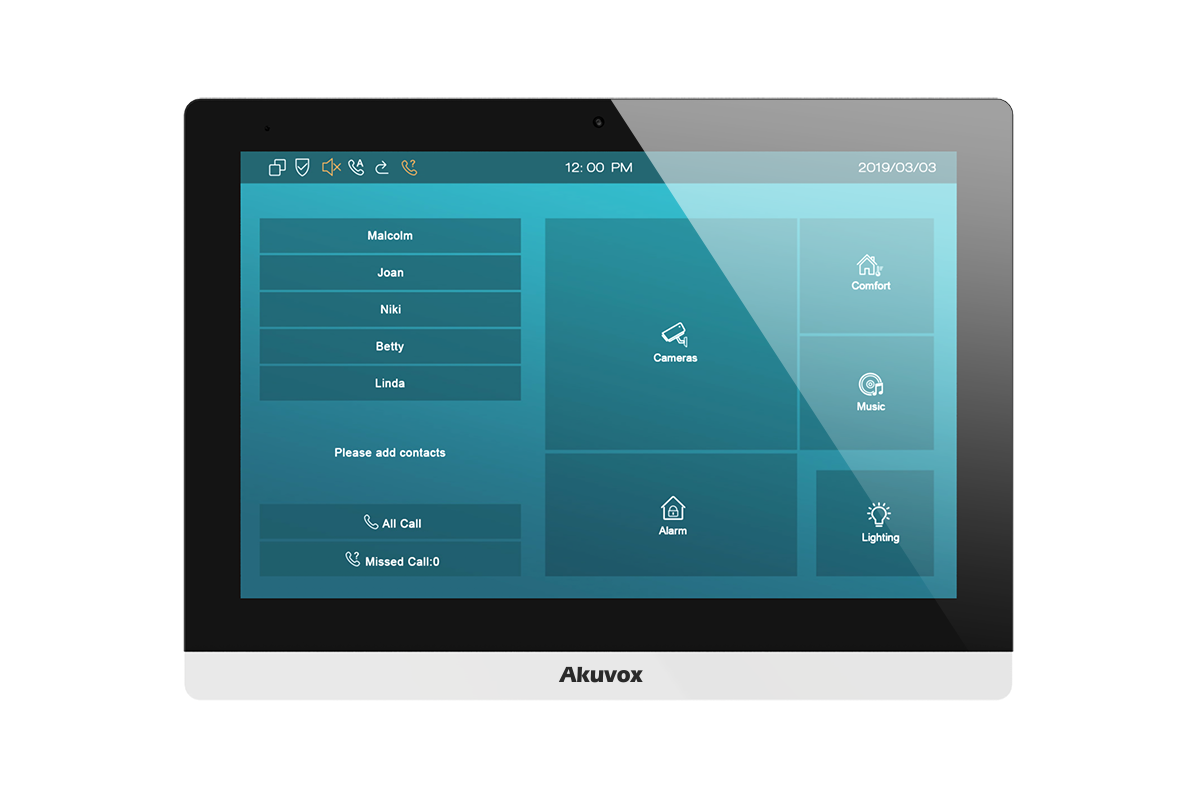

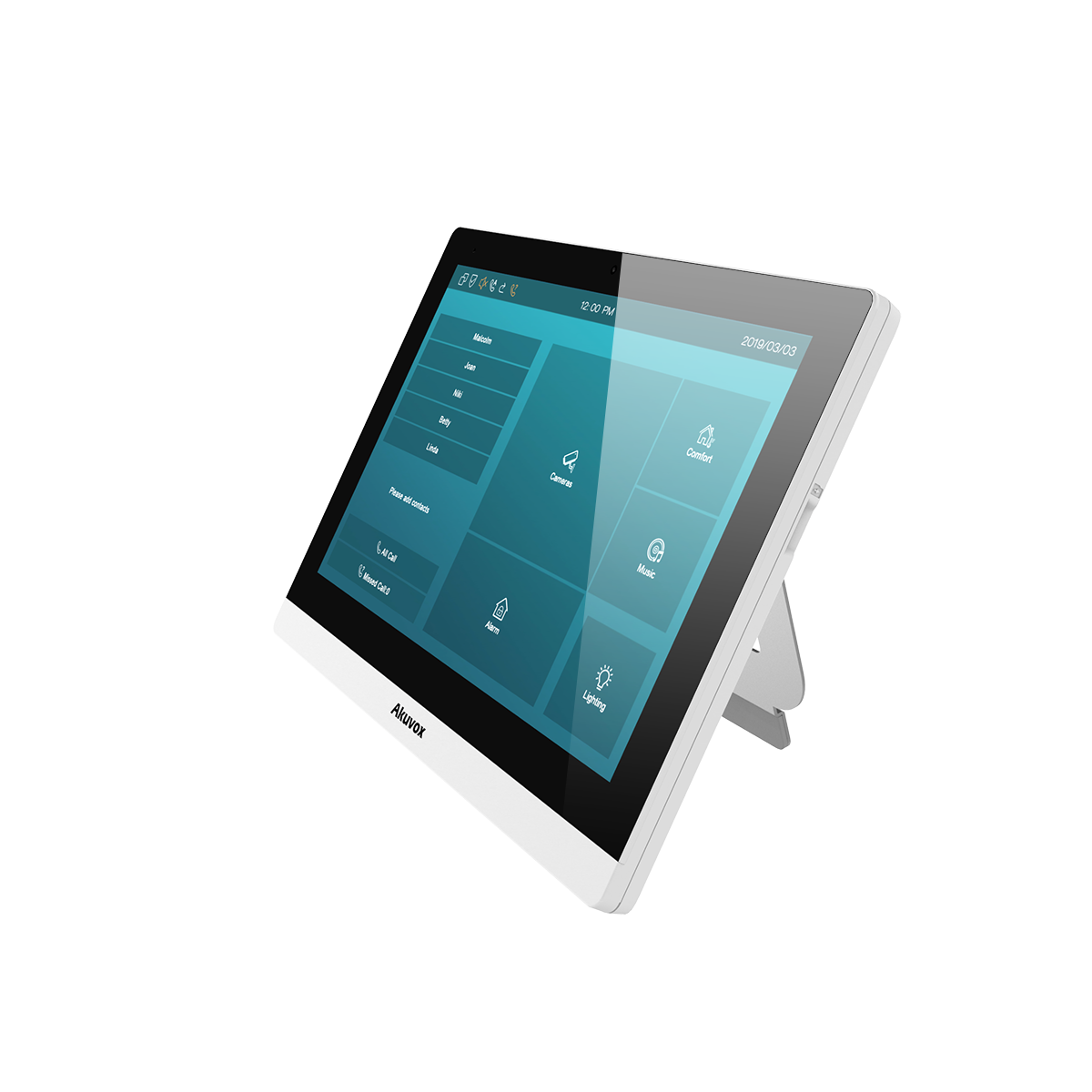

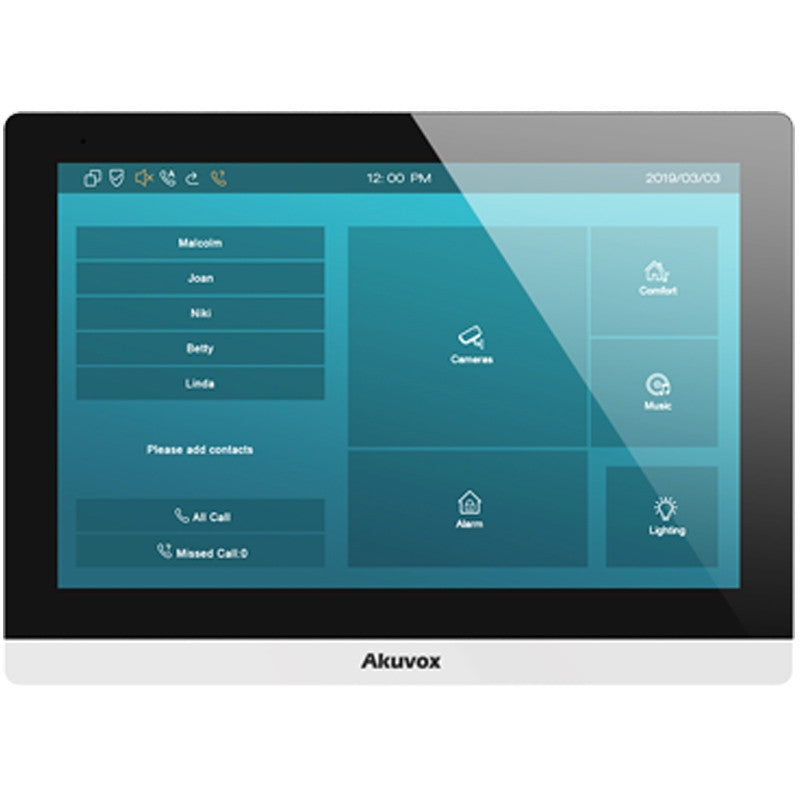

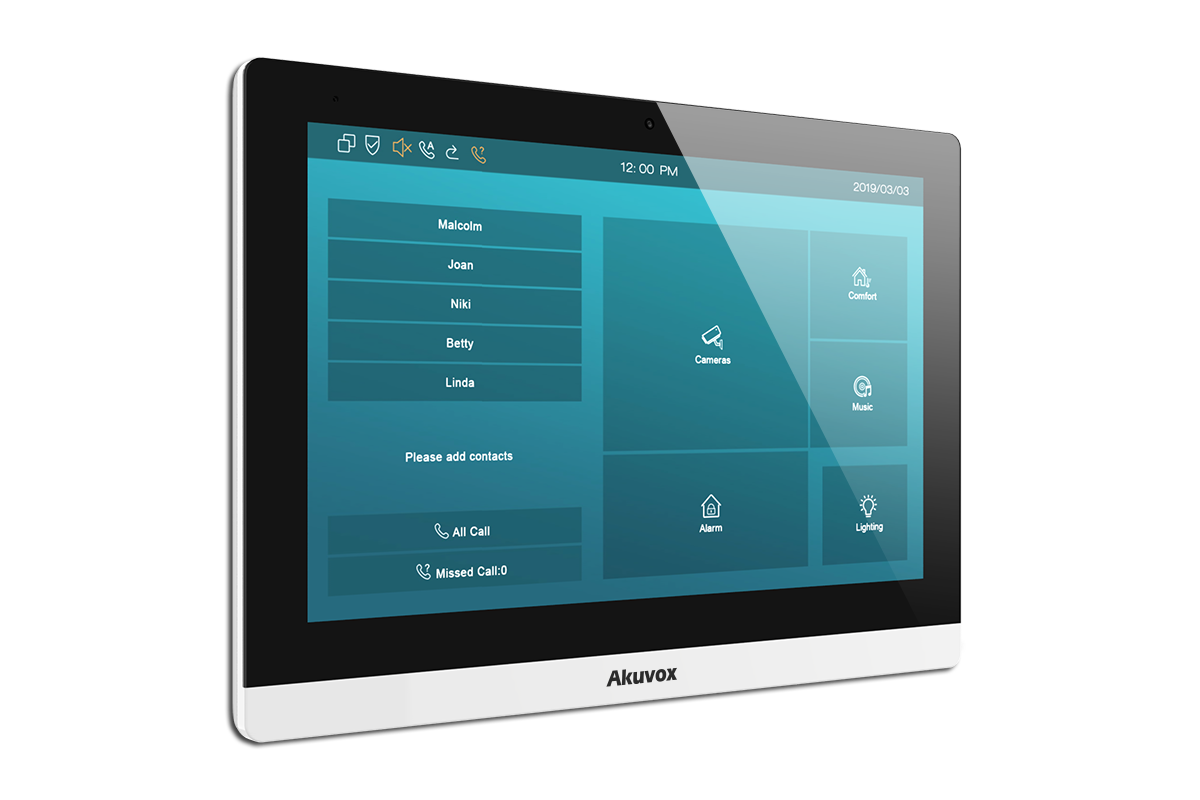

Akuvox C317S Low-cost Android Indoor Monitor 10 inches Touchscreen, Relay, Audio and Video

Product Description

The Akuvox C317S is a low-cost Android indoor monitor, MPN C317S, featuring a 10" capacitive touch screen for audio and video communication with door phones via SIP 2.0 protocol. It supports US or European electrical wall box mounting and is powered by PoE or an external source. It has a thin profile and small footprint.

• Ultra-clear, stylish appearance
• 10" capacitive touch screen
• Two-way communication with SIP devices

Product Highlights

This indoor monitor delivers a high-definition picture from door phones and supports two-way communication with SIP devices.

Product Information

Standard Information

• Brand: Akuvox
• Manufacturer Part Number: C317S
• Country of Origin: CN

Technical Specifications

• Display Type: Active matrix TFT, transmissive type
• Size: 10 inch
• Aspect Ratio: 16:9
• Resolution: 1280x800
• Brightness: 350nits (cd/m²)
• Contrast: 800:1
• Viewing Angle: ±89° left, ±89° right, ±89° upper, ±89° lower
• Touch Screen: Projected Capacitive
• Streaming Formats: H.264
• Features: Built-in microphone and speaker
• RAM: 1GB
• Flash: 4GB
• Ethernet: 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
• Optional Wi-Fi: Yes
• RS485: 1x RS485 communication port
• Relay out: 2 x relays out (NO/COM/NC)
• Relay in: 1 x relay in
• Alarm In: 8x Alarm input terminals
• Memory slot: 1 x micro SD slot
• Working temperature: -10°C~+40°C
• Humidity: 10% to 90% (non-condensing)
• OS platform: Android 6
• Door Features: SIP, 2 Relay, Android / iOS, Indoor Touch Screen, RS485, PoE
• Protocol: SIP
• Relay: 2
• PoE: Yes, Standard PoE
• Manufacturer Part Number: C317S-white
• Product Type: Intercom Monitor
