Product Description

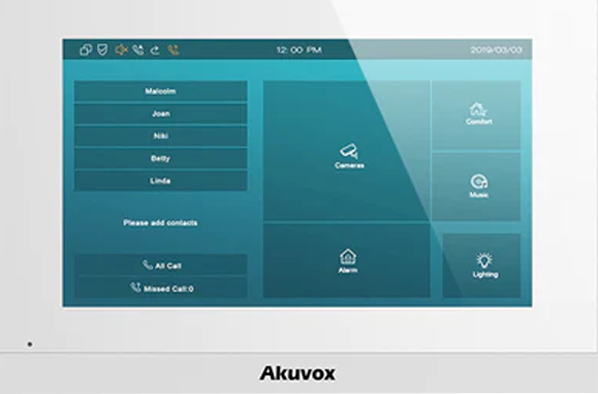

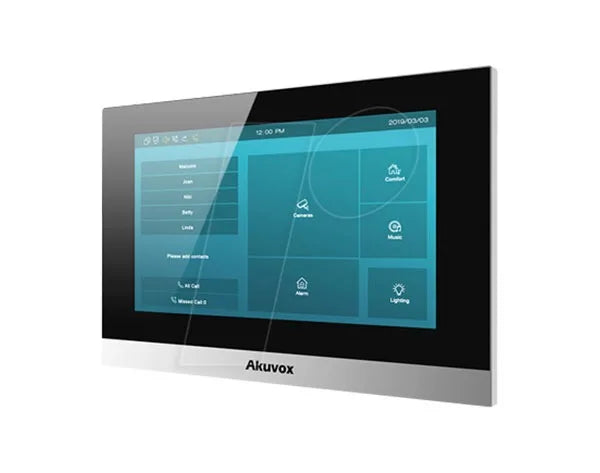

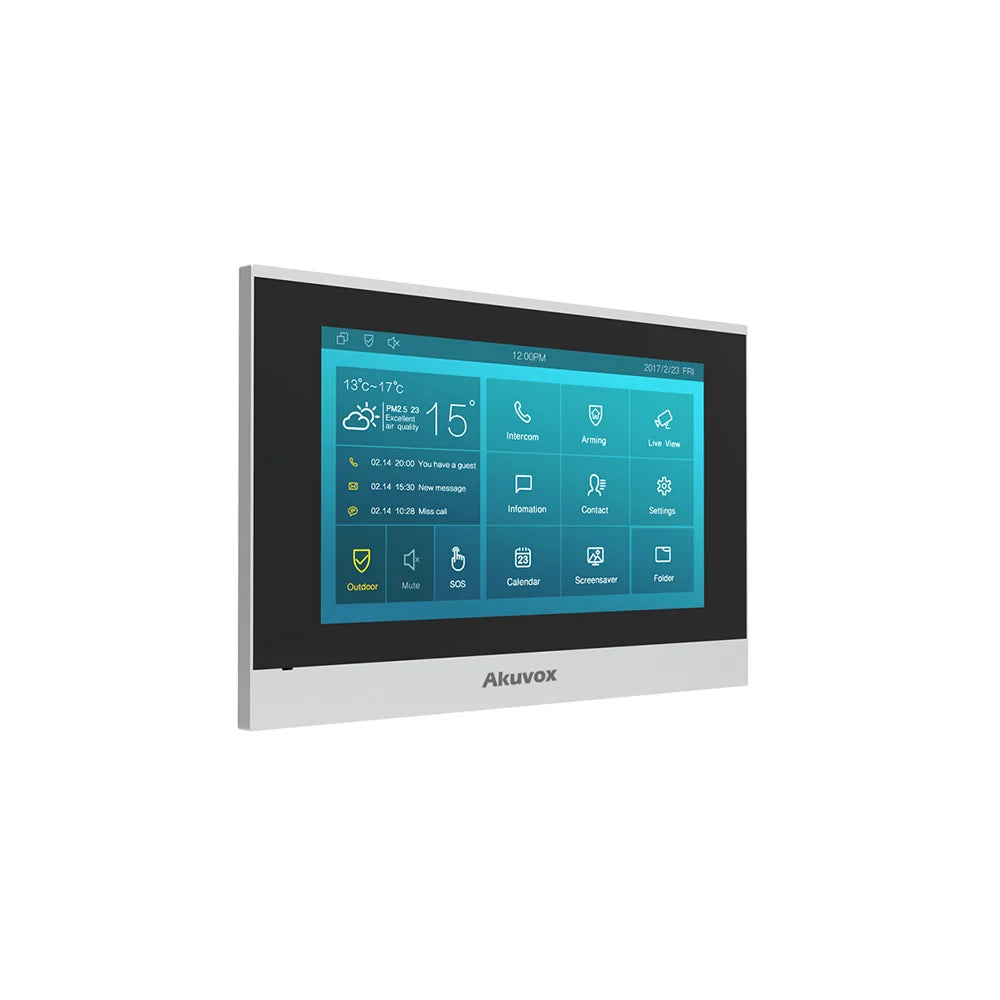

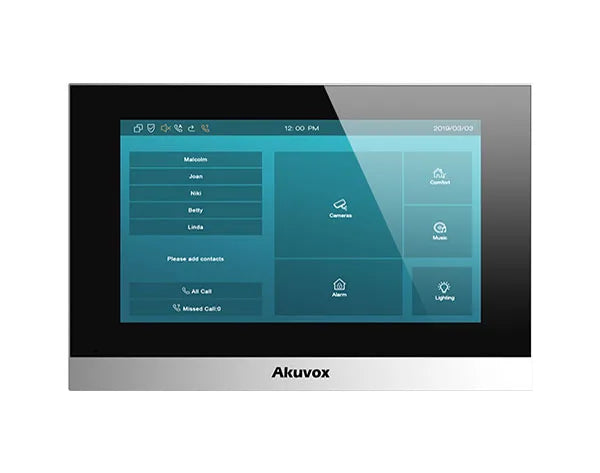

The Akuvox C315S is a SIP 2.0-enabled IP indoor monitor suitable for apartments, complexes, home automation systems and villas with built-in high-quality audio and video communications with door phones. This Android indoor monitor has a 7" capacitive touch screen and allows two-way audio communication with other units in the network. All in-home automation devices can be easily managed and controlled by it.
- Ultra-clear, stylish appearance
- Thin profile and small footprint
- 7" capacitive touch screen
Product Highlights

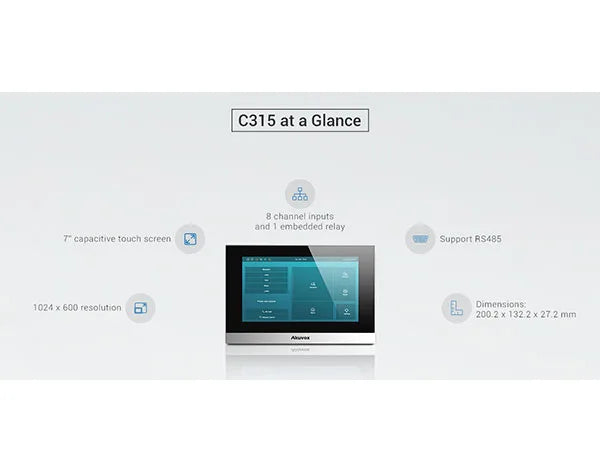

The Akuvox C315S features a 7" touchscreen, HD picture reception, two-way SIP communication, and PoE support. It supports US or European electrical wall box mounting.
Product Information
Standard Information
-
Brand: Akuvox
-
Manufacturer Part Number: C315S
-
Country of Origin: CN
Technical Specifications
-
Display Type: Active matrix TFT, transmissive type
-
Size: 7 inch (176 mm) diagonal
-
Aspect Ratio: 16:9
-
Resolution: 1024x600
-
Brightness: 300nits (cd/m²)
-
Contrast: 800:1
-
Color Depth: 24-bit, 16M colors
-
Illumination: Edgelit LED
-
Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower
-
Touch Screen: Projected Capacitive
-
Streaming Formats: H.264
-
Features: Built-in microphone and speaker
-
RAM: 1GB
-
ROM: 8GB
-
Ethernet: 2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant
-
Alarm Out: 1x Alarm output relay (Dry Contact)
-
Alarm In: 8x Alarm input terminals
-
Bell In: 1x Bell input terminal
-
RS485: 1x RS485 communication port
-
Working temperature: -10°C~+40°C
-
Humidity: 10% to 90% (non-condensing)
-
OS platform: Android 6
-
Door Features: SIP, 2 Relay, Indoor Touch Screen, PoE
-
Manufacturer: Akuvox
-
Model: C315S
-
Installation: Wall-mounted & Desktop
-
Front panel: Plastic
-
Display: 7 Inch TFT LCD
-
Screen: 7 Inch capacitive touch screen
-
RS485 port: Support
-
Relay out: 1
-
I/O: 8
-
Microphone: -58dB
-
Speaker: 4Ω / 2W
-
Ethernet ports: 2xRJ45, 10/100Mbps adaptive
-
Power-over-Ethernet: 802.3af
-
Working Humidity: 10~90%
-
Storage Temperature: -20°C ~ +70°C
-
Display Mode: Normally white, Transmissive
-
LCD Size: 7inch (Diagonal)
-
Contrast ratio: 800:1
-
Luminance: 270 cd/m2
-
SIP: v1 (RFC2543), SIP v2 (RFC3261)
-
Narrowband audio codec: G.711a, G.711μ, G.729
-
Broadband audio codec: G.722
-
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
-
Streaming formats: H.263 & H.264
-
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
