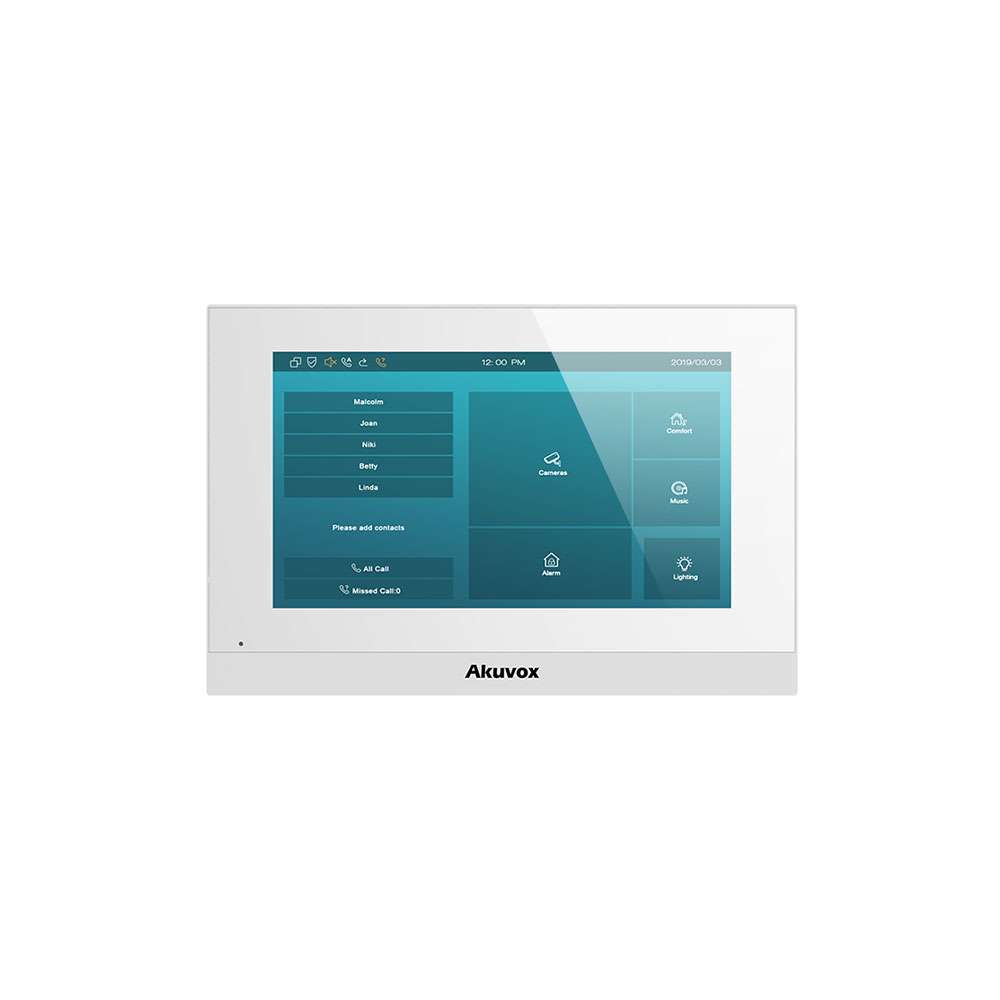

Akuvox C313S-WHITE 7 inches Indoor Intercom Monitor

Product Description

The Akuvox C313S-WHITE multifunctional communicator provides audio and video communication with door phones via SIP 2.0 protocol. It features a 7-inch capacitive touch screen display in a space-saving design. It can be easily integrated in every SIP capable PBXes.

• Ultra-clear, stylish appearance
• 7-inch capacitive touch screen with energy-saving mode
• Two-way audio communication with other units in the network

Product Highlights

The C313S-WHITE supports US or European electrical wall box mounting and is powered by PoE or external source.

Product Information

Standard Information

• Brand: Akuvox
• Manufacturer Part Number: C313S-WHITE
• Country of Origin: China

Technical Specifications

• Front panel: Plastic
• RAM / ROM: 64MB / 128MB
• Display: 7 Inch TFT LCD
• Screen: 7 Inch capacitive touch screen
• RS485 port: Support
• Relay out: 1
• Bell in: 1
• I/O: 8
• Microphone: -58dB
• Speaker: 4Ω / 2W
• Ethernet ports: 2xRJ45, 10/100Mbps adaptive
• Power-over-Ethernet: Yes
• 12V DC connector: Yes (if not using PoE)
• Installation: Wall-mounted & Desktop
• Working Humidity: 10~90%
• Working Temperature: -10°C ~ +45°C
• Storage Temperature: -20°C ~ +70°C
• SIP v1 (RFC2543), SIP v2 (RFC3261): Yes
• Narrowband audio codec: G.711a, G.711μ, G.729
• Broadband audio codec: G.722
• DTMF: Out-of-band DTMF (RFC2833), SIP Info
• Echo Cancellation: Yes
• Display Mode: Normally white, Transmissive
• LCD Size: 7inch (Diagonal)
• Resolution: 800×480
• Contrast ratio: 500:1
• Luminance: 220 cd/m²
• Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower
• Touch Screen: Projected capacitive
• Product Type: Indoor SIP Monitor
• OS Platform: Android 6
• Door Features: Indoor Touch Screen, PoE, SIP, 1 Relay
• Interface: Ethernet (RJ-45)
