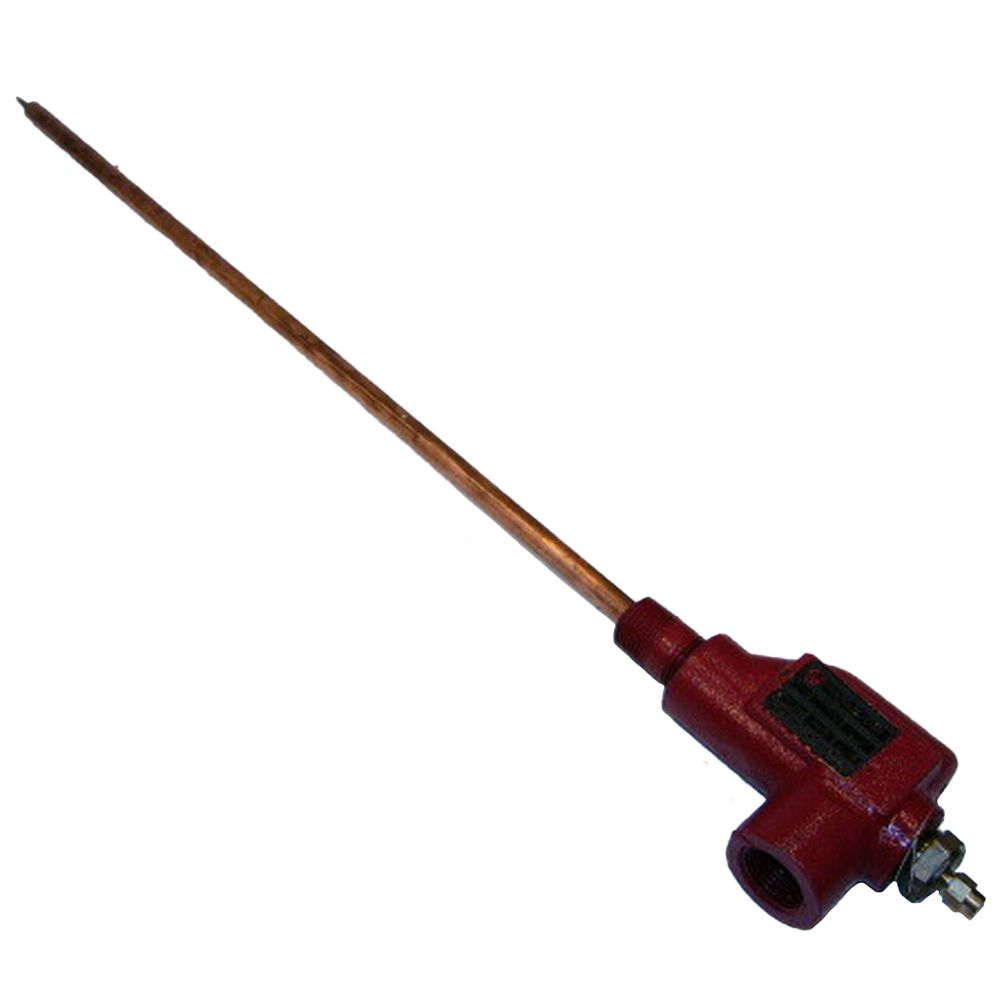

Bell & Gossett ATF-24 Airtrol Tank Fitting for 24 inch Compression Tank Diameter 112013

Product Description

Maximize the efficiency of hydronic systems with the Bell & Gossett ATF-24 Airtrol Tank Fitting, an essential component designed for regulating air within compression tanks. Engineered with precision, this fitting is crafted from durable cast iron and features a 1/2 inch Male NPT tank connection alongside a 3/4 inch Female NPT connection to the boiler.

• Ensures optimal pressurization balance within closed systems
• Reduces the need for large compression tanks by effectively managing the air cushion
• Compatible with both in-line Airtrol or Rolairtrol air separators for enhanced performance

Product Highlights

This specialized fitting is ideal for use with compression tanks up to 24 inches in diameter, promoting a more efficient hydronic system operation by allowing controlled air flow while limiting water pass-back during the system's off cycle.

Technical Specifications

• Material: Cast Iron
• Pressure Rating: 175 psi
• Maximum Operating Temperature: 250 degrees Fahrenheit
• Connections: 1/2 inch MNPT x 3/4 inch FNPT
• Compatible Tank Diameter: Up to 24 inches
