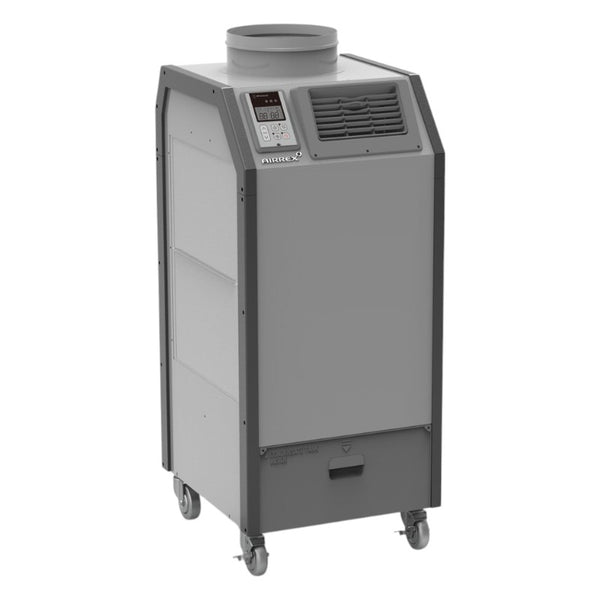

Airrex AHSC-14R Portable Heat Pump 13600 Btu/h 115V

Product Description

The AIRREX AHSC-14R is a 1.2-ton portable air-cooled heat pump that delivers 13,600 BTU/h of cooling and 13,000 BTU/h of heating in a single self-contained unit. It operates on 115 volts, single phase, making it compatible with standard commercial and industrial power outlets. The unit uses R-454B refrigerant, a lower global warming potential alternative to legacy refrigerants. Cooling performance is rated for ambient temperatures from 61 degrees F to 115 degrees F, while heating operates between 46 degrees F to 81 degrees F. Licensed HVAC technicians and facility maintenance professionals handle installation and service of this unit.

The AHSC-14R is designed for spot cooling and heating in environments where a fixed HVAC system is impractical or unavailable. Typical applications include construction sites, server rooms, temporary event spaces, warehouses, manufacturing floors, and disaster-recovery situations. The unit is portable, allowing repositioning as job conditions change. A fresh air supply connection is required for proper operation. The 12-inch diameter top exhaust allows ducting to direct condenser air as needed for the specific install scenario.

Key Features

• 13,600 BTU/h cooling capacity with an operating range of 61 degrees F to 115 degrees F ambient
• 13,000 BTU/h heating capacity with an operating range of 46 degrees F to 81 degrees F ambient
• R-454B refrigerant with lower global warming potential than legacy refrigerants
• Centrifugal fan type for consistent airflow across high and low speed settings
• 12-inch diameter top exhaust for flexible ducting and directional condenser discharge
• Removable, washable air filters reduce maintenance cost and downtime
• ETL listed to US electrical standards for job-site compliance

Compatibility

The AHSC-14R is a standalone portable heat pump unit requiring a standard 115-volt, single-phase power source and a fresh air supply connection. No specific OEM replacement compatibility is listed for this unit.

Installation Notes

Installation and service should be performed by an EPA 608-certified HVAC technician familiar with portable heat pump systems and R-454B refrigerant handling requirements. Verify that the power supply circuit matches the rated voltage and phase before energizing the unit. Connect an adequately sized exhaust duct to the 12-inch top discharge to prevent recirculation of condenser air, and ensure a proper fresh air supply intake is in place. Power down and apply lockout/tagout procedures before performing filter cleaning or any internal maintenance.

Technical Specifications

• Cooling Capacity: 13,600 BTU/h
• Heating Capacity: 13,000 BTU/h
• Capacity (Tons): 1.2 tons
• Power Supply: 115 volts, 1 phase
• Refrigerant: R-454B
• Fan Type: Centrifugal
• Exhaust Diameter: 12 inches
• Cooling Operating Range: 61 degrees F to 115 degrees F
• Heating Operating Range: 46 degrees F to 81 degrees F
• Weight: 218 pounds
• Certifications: ETL Listed (US Electrical Standards)

Standard Information

• Brand: AIRREX
• Manufacturer Part Number: AHSC-14R
