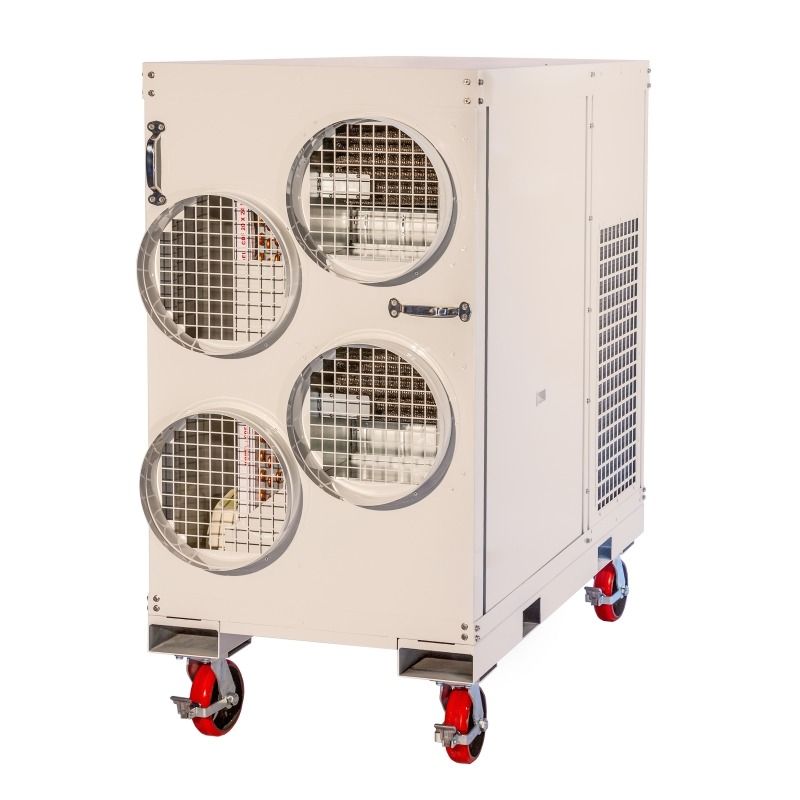

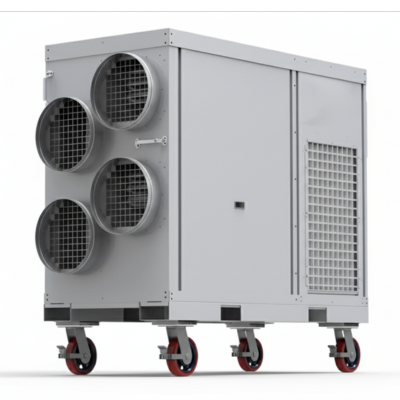

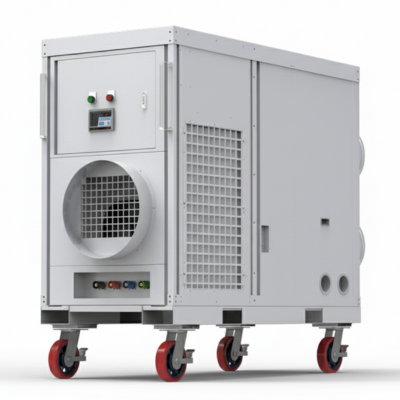

Airrex AHSC-140R 460/3 145,000 BTU Portable Heat Pump 480 Volts, 3 Phase

Product Description

The AirRex AHSC-140R 460/3 portable air conditioner provides heating and cooling with an output of 145,000 BTU. Easy to install and operate, this unit features locking wheels and simple controls. The AHSC-140R offers adequate portable comfort for specific needs with a cooling operating range of 68-113°F and a heating operating range of 50-81°F.

• 145,000 BTU cooling output and 100,000 BTU heating output
• Easy-access washable filter for easy maintenance
• High and low outputs (3530 CFM)

Product Highlights

This portable air conditioner is designed for concentrated air cooling and is suitable for industrial sites, repair shops, and outdoor venues.

Product Information

Standard Information

• Brand: AIRREX
• Manufacturer Part Number: AHSC-140R 460/3

Technical Specifications

• SKU: AHSC-140R 460/3
• Brand: AirRex
• Cooling BTU: 145,000
• Heating BTU: 100,000
• Maximum CFM: 3530
• Decibel Level (dBA): 80
• Energy Star: No
• Refrigerant: R454B
• Electrical: 460 Volts
• Phase: Three Phase
• Tonnage: 12 Ton
• Operating Mode: Cooling, Heating
• Duct Diameter: 16"
• Power Supply: 480V 3ph 60Hz
• Current Consumption (Amps): 31 cool / 40 heat
• Voltage: 460V/3-phase
• Type: Portable Heat Pump with Electric Heat
• Compressor: Rotary
• Condensate Removal: Built-in pump
• Temperature Control: Adjustable humidistat
• Mobility: Heavy-duty casters
• Amps: 31 - 40 Amps
• Hertz: 60 Hz
• Wattage: 20.6 - 31.7 Kilowatts
• Caster Type: 4 Swivel
• Casters: With Casters
• Control Type: Digital
• Cooling: Air Cooled
• Features: Dehumidifier Mode, Electric Heater, With Heat Pump
• Mounting Style: Freestanding
• Noise Level: 81 dB
• Number of Casters: 4 Casters
• Operating Temperature: 1 - 113 Degrees F
• Plug Type: Hardwire
• Power Type: Electric
• Speeds: 1 Speed
• Temperature Range: 66 - 113 Degrees F
• Total BTU: 100000 - 145000 BTU
• Fan Type: Centrifugal
• Outdoor Max External Static Pressure: inchH20 1.2
• Max Equivalent Duct Length: ft 120
• Cooling Rating: Btu/h 145,000 Btu/h (35°C/95°F 40%)
• Heating Rating: Btu/h 100,000 Btu/h (21°C/70°F 50%)
• Dehumidification Max.: gal/day 192 (32°C/89°F 80%)
• Dehumidification Nominal: gal/day 93 (270/80°F 60%)
• Power Consumption Cooling: kW 20.6
• Power Consumption Heating: kW 31.7
• Current Cooling: A 31
• Current Heating: A 40
• Fuse Size: A 50
• Min.- Max Voltage: V 391-506V~
• NEMA Plug: Cam Lock
• Min.- Max Cooling: F 65~113 (18~45℃)
• Min.- Max Heating: F 1~81 (-17~27℃℃)
• Min.- Max Dehumidification: F 59~113 (15~45°C)
• Cooling Air Volume (High/Low): CFM 4,800
• Heating Air Volume: CFM 4,800
• Dehu Air Volume: CFM 4,800
• Max External Static Pressure (Indoor): inchH20 1.2
• Max Equivalent Duct Length (Indoor): ft 100
• Type/Size (Indoor): Supply/16" (2400) x 2, Return/16" (Ø400) x 2
