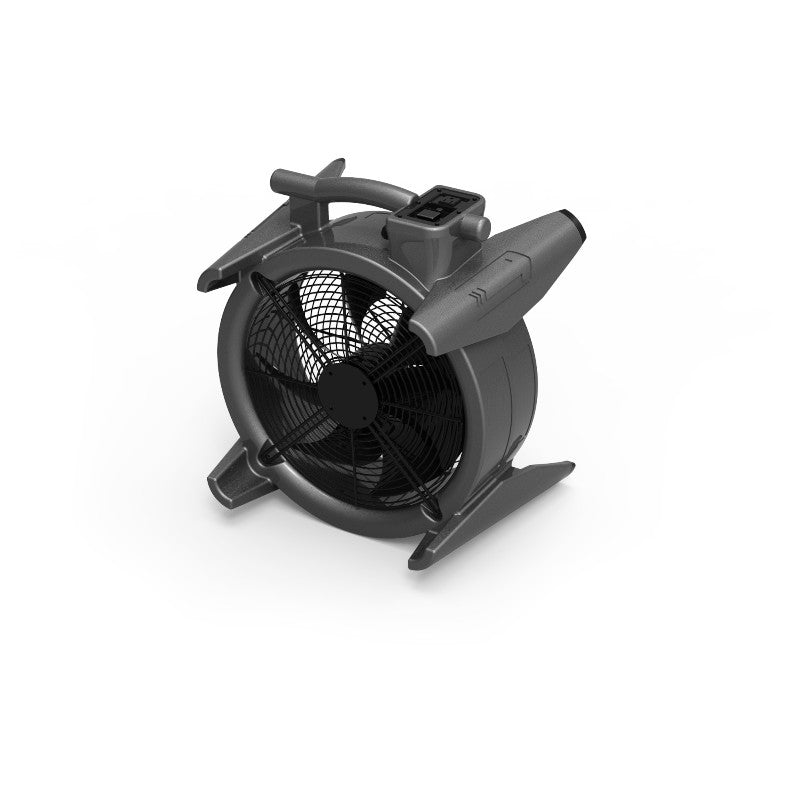

Airrex AF-2300 Axial Air Mover Fan 1932 Cfm 115V

Product Description

The AIRREX AF-2300 is a portable axial air mover built for high-volume airflow in water damage restoration, structural drying, and ventilation work. Operating on a standard 115V, 1-phase, 60Hz circuit and drawing only 1.4 amps, it delivers up to 1,932 CFM through a 16-inch, 7-blade propeller. That low current draw allows the AF-2300 to run on a single 15-amp branch circuit without tripping breakers, a practical advantage in flood-damaged or restoration environments where available circuits are limited. At 25.4 pounds, the unit is manageable for one-person setup and repositioning on the job site.

The AF-2300 is used primarily in water damage and flood restoration work where rapid structural drying is critical. It pairs effectively with dehumidification equipment, including the AIRREX ADH-8000 dehumidifier, to accelerate moisture removal from floors, walls, and substructures. The fan also suits general ventilation tasks in commercial and industrial settings. Its stackable design allows restoration contractors to store and transport multiple units efficiently across multi-unit jobs at different sites.

Key Features

• 1,932 CFM maximum airflow for rapid drying and ventilation
• 1.4-amp draw operates safely on a standard 15-amp branch circuit
• 16-inch diameter, 7-blade integral propeller
• Two-speed operation: high speed at 62.5 dB and low speed at 54.2 dB
• Stackable design for efficient multi-unit storage and transport
• Non-slip rubber feet for stable placement on wet or hard surfaces
• Built-in power socket for daisy-chain or accessory use

Compatibility

Designed for use as a standalone axial air mover in restoration and ventilation applications. Documented to pair with the AIRREX ADH-8000 dehumidifier for combined drying setups.

Installation Notes

The AF-2300 is typically deployed by restoration technicians, HVAC contractors, and facilities maintenance staff. Before positioning the unit in a flood-affected space, confirm the electrical circuit is dry and rated for the unit draw. Always verify local electrical conditions before connecting to any branch circuit. Do not operate in standing water and do not submerge any part of the unit.

Technical Specifications

• Airflow (Max): 1,932 CFM
• Power Supply: 115V 1-phase 60Hz
• Current Draw: 1.4 amps
• Fan Blade Diameter: 16 inches
• Number of Blades: 7
• Noise Level (High Speed): 62.5 dB
• Noise Level (Low Speed): 54.2 dB
• Dimensions: 20 x 22 x 15.7 inches
• Weight: 25.4 pounds
• Power Socket: Yes
• Stackable: Yes

Standard Information

• Brand: AIRREX
• Manufacturer Part Number: AF-2300
