AirMate TB170FF_24X24-W 24 x 24, 1/2 Fin Spacing, 40D Fin Angle

Product Description

The AirMate TB170FF_24X24-W is a T-Bar Return Air Filter Grille designed for effective air filtration. This grille measures twenty-four inches by twenty-four inches and features a half-inch fin spacing and a forty-degree fin angle. It is made from steel and comes in an enameled bright white finish.

• Compact size suitable for various HVAC applications.
• Features a flush, removable lanced face for easy access to the filter.
• Uses a standard one-inch disposable filter for convenient maintenance.

Product Highlights

Ideal for commercial use, this grille provides reliable air filtration while maintaining a clean aesthetic.

Product Information

Standard Information

• Type: T-Bar, Return Air Filter
• Style: Flush, Removable Lanced Face

Technical Specifications

• Grill Size: 24 Inch Width x 24 Inch Height

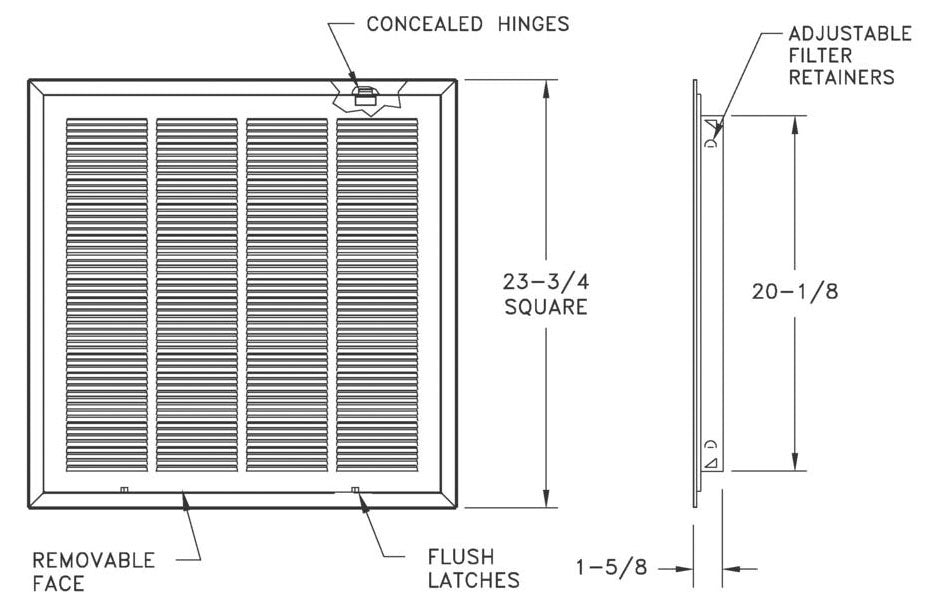

• Overall Dimensions: 23-3/4 Inch Width x 1-5/8 Inch Depth x 23-3/4 Inch Height
• Fin Spacing: 1/2 Inch
• Fin Angle: 40 Degree
• Material: Steel
• Finish/Color: Enameled Bright White
• Inclusions/Features: Flush Latch, Concealed Hinge, Adjustable Filter Retainer
• Series/Model: TB170FF
