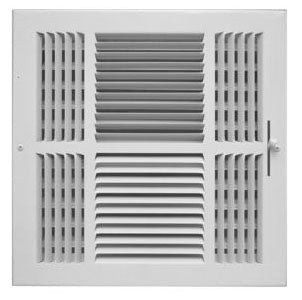

AirMate 190_08X08-W 8 x 8 Ceiling/Side Wall Lanced Face Register

Product Description

The AirMate 190_08X08-W is a ceiling and side wall register designed for efficient air distribution in HVAC systems. It features a multi-shutter damper for airflow control. The register has a lanced face that allows for four-way deflection. The overall dimensions are nine and five-eighths inches in width, one and three-eighths inches in depth, and nine and five-eighths inches in height.

• Multi-shutter damper for airflow adjustment
• Four-way deflection design
• Made from durable steel with an enameled finish

Product Highlights

Ideal for residential heating and cooling applications. This product maintains air quality and comfort.

Product Information

Standard Information

• Manufacturer: AirMate
• Category: HVAC > Grills

Technical Specifications

• MPN: 190_08X08-W

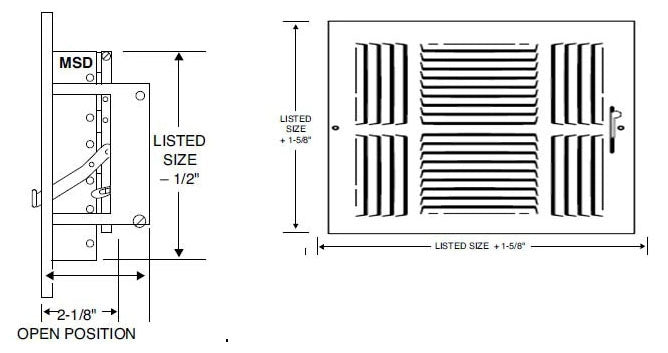

• Overall Dimensions: 9-5/8 inches Width x 1-3/8 inches Depth x 9-5/8 inches Height
• Material: Steel
• Finish/Color: Enameled Bright White
• Deflection: 4-Way
• Actuation Type: Multi-Shutter Damper with Metal Lever
• Fin Spacing: 1/2 Inch
• Fin Angle: 40 Degree
• Nominal Size: 8 inches Width x 8 inches Height
• Application: Residential, Heating/Cooling
