AirMate 170_20X16-W 20 x 16 Return Air Grille

Product Description

The AirMate Return Air Grille with MPN 170_20X16-W is designed for effective air circulation in residential settings. This grille measures twenty inches in width by sixteen inches in height. It features a fin spacing of one half inch and a fin angle of forty degrees. The overall dimensions are twenty-one and three-quarter inches by seventeen and three-quarter inches. It is made of steel with a bright white enameled finish.

• Durable steel construction
• Designed for residential return air applications
• Fin angle of forty degrees for optimal airflow

Product Highlights

This return air grille provides exceptional free area, ensuring efficient airflow throughout your space while maintaining an attractive appearance.

Product Information

Standard Information

• Type: Return Air
• Fin Spacing: 1/2 Inch

Technical Specifications

• Material: Steel
• Finish/Color: Enameled Bright White
• Grill Size: 20 Inch Width x 16 Inch Height

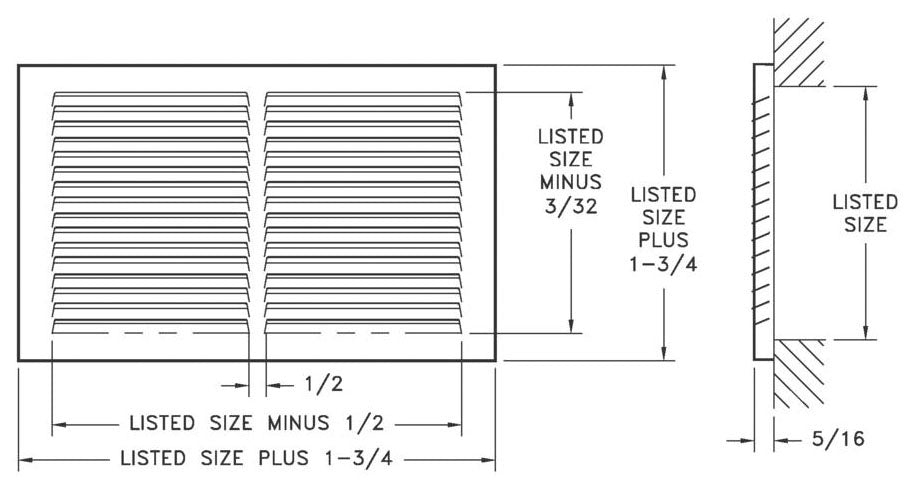

• Overall Dimensions: 21-3/4 Inch Width x 17-3/4 Inch Height
• Inclusions/Features: 5/16 Inch Margin Turnback
• Fin Angle: 40 Degree
• ProductID: 731
• Series/Model: 170
