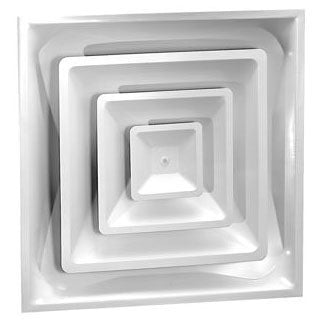

AirMate 1301-INS_14-W 14 Collar, Bright White Steel, High Volume, T-Bar Diffuser with Butterfly Damper

Product Description

The AirMate 1301-INS_14-W is a T-Bar diffuser designed for high-volume applications. This model features a collar size of fourteen inches and a three-cone face for effective air distribution. It includes a butterfly damper, enhancing control over airflow. The overall dimensions are twenty-three and three-quarters inches in width and height. The R4.2 molded insulated back helps with thermal efficiency, making it suitable for commercial use.

• Collar size: 14 inches
• Material: Steel
• Features a butterfly damper

Product Highlights

Ideal for HVAC professionals seeking a reliable air diffuser for commercial projects.

Product Information

Standard Information

• Manufacturer: AirMate
• Category: HVAC, Grills

Technical Specifications

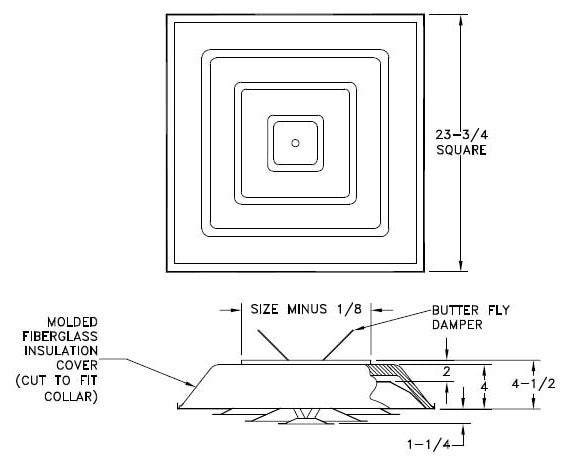

• Overall dimensions: 23-3/4 Inch width x 23-3/4 Inch height
• Deflection: 3-Cone Face
• Material: Steel
• Finish/Color: Bright White
• Inclusions/Features: Butterfly Damper, R4.2 Molded Insulated Back
• Vane details: Fixed Pattern
• Series/Model: 1301
• ProductID: 5502
