Product Description
The AirMate 1301-INS_06-W T-Bar Diffuser is designed to efficiently distribute air in commercial spaces. This product features a six-inch collar and a three-cone face for optimal air flow. The overall dimensions are twenty-three and three-quarter inches wide by twenty-three and three-quarter inches high. Its fixed vane pattern directs air effectively while ensuring quiet operation.
- Uses a butterfly damper for precise air control.
- Constructed with a R4.2 molded insulated back.
- Made of durable bright white steel.
Product Highlights
This T-Bar diffuser is suitable for high volume applications in commercial settings, providing enhanced comfort and efficiency in ventilation.
Product Information
Standard Information
-
Manufacturer: AirMate
-
UPC: 62241789991
Technical Specifications
-
Type: T-Bar, High Volume
-
Deflection: 3-Cone Face
-

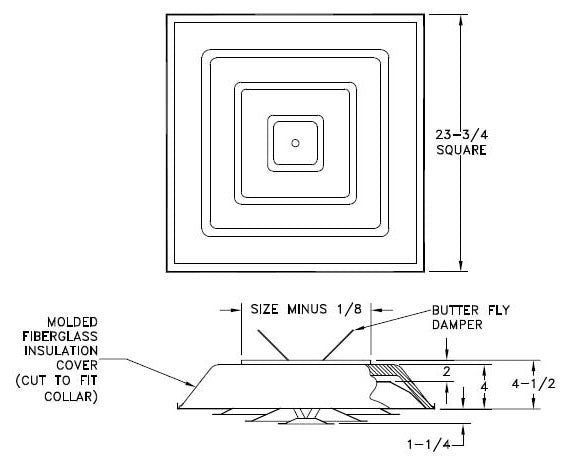

Overall Dimensions: 23-3/4 Inch Width x 23-3/4 Inch Height
-
Vane Details: Fixed Pattern
-
Material: Steel
-
Finish/Color: Bright White
-
Inclusions/Features: Butterfly Damper, R4.2 Molded Insulated Back
-
Collar Size: 6 Inch
-
Application: Commercial
