AirMate 1300U-R6_14-W 14 Collar, Bright White Enameled Steel, High Volume, T-Bar Ceiling Diffuser

Product Description

The AirMate 1300U-R6_14-W is a T-Bar ceiling diffuser designed for high volume air delivery. This unit features a 14 inch collar and uses a 3-cone face for effective deflection of airflow. The overall dimensions of the diffuser are twenty-three and three-fourths inches in width by twenty-three and three-fourths inches in height. The diffuser is manufactured from steel and finished in a bright white enamel.

• High air volume delivery
• R6 molded fiberglass insulated back panel
• Fixed core design

Product Highlights

This product is suitable for commercial applications and fits standard two-foot T-Bar ceiling systems, making it an ideal choice for HVAC systems in various settings.

Product Information

Standard Information

• Manufacturer: AirMate
• UPC: 05371326549

Technical Specifications

• Type: T-Bar, Ceiling, High Volume
• Deflection: 3-Cone Face

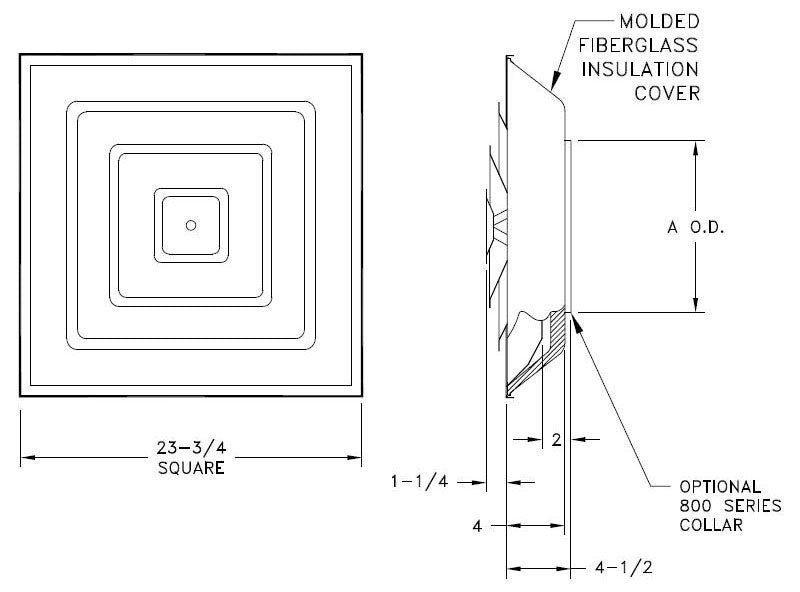

• Overall Dimensions: 23-3/4 Inch Width x 23-3/4 Inch Height
• Fin Angle: 360 Degree
• Material: Steel
• Finish/Color: Enameled Bright White
• Inclusions/Features: R6 Molded Fiberglass Insulated Back Panel
• Collar Size: 14 Inch
