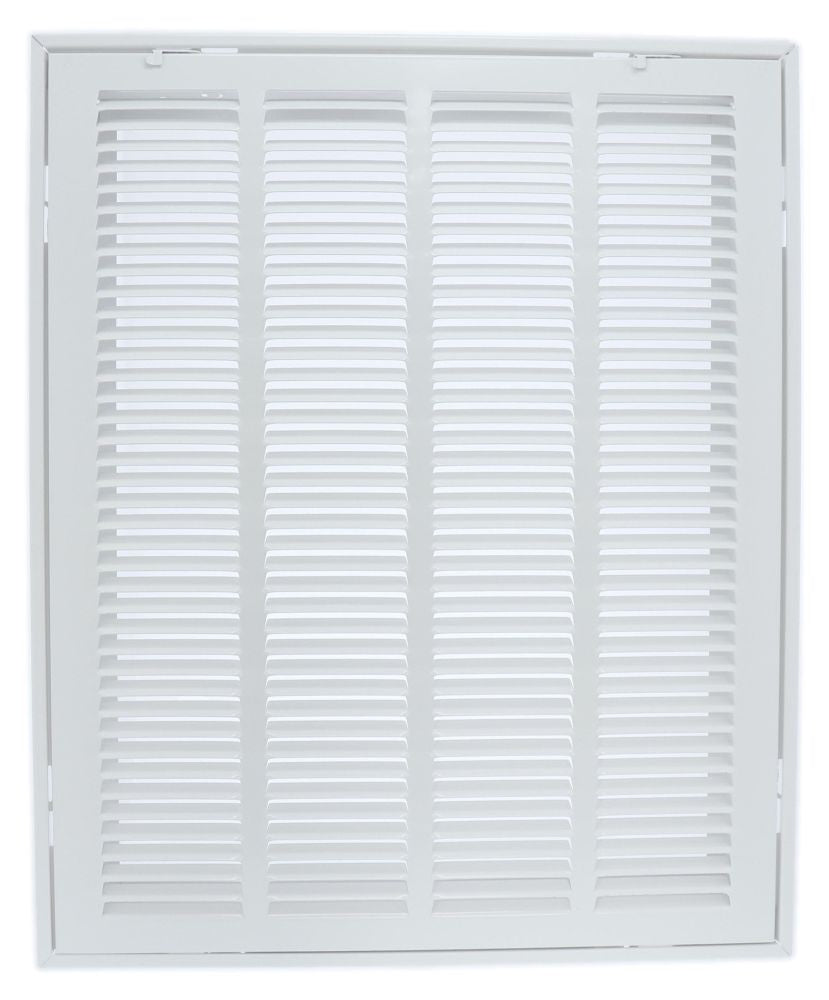

AIRMATE 01152412CW 170FF Series Filter Grille 24 L x 12 W

Product Description

The AIRMATE 01152412CW 170FF series filter grille is made from durable steel and features a clean white enamel finish. Designed for residential applications, it effectively conceals standard one-inch thick disposable filters, which are sold separately. The grille has a unique flush-mount design, offering a hinged, removable face with concealed latches for straightforward filter changes.

• All-steel construction for durability.
• 1/2-inch fin spacing at a 40-degree angle.
• Compatible with standard one-inch thick disposable filters.

Product Highlights

This filter grille is ideal for improving airflow while maintaining clean aesthetics. Its easy access design simplifies filter maintenance.

Product Information

Standard Information

• Filter Size: 1 inch
• Base Size: 23-15/16 L x 11-15/16 W

Technical Specifications

• CFM Rating: 521 CFM (At 400 FPM Face Velocity)
• Color: White
• Deflection Type: 40 degrees, Fixed
• Domestic/Import: Domestic
• Duct Size: 24 L x 12 W
• Finish: White Enamel
• Grille Spacing: 1/2 inch
• Height: 1-5/8 inches
• Length: 24 inches
• Material: Steel
• Mounting Type: Flush Mount
• Pitch: 1/2, 40 degrees
• Series: 170FF
• Size: 1-5/8 H x 24 L x 12 W
• Width: 12 inches
