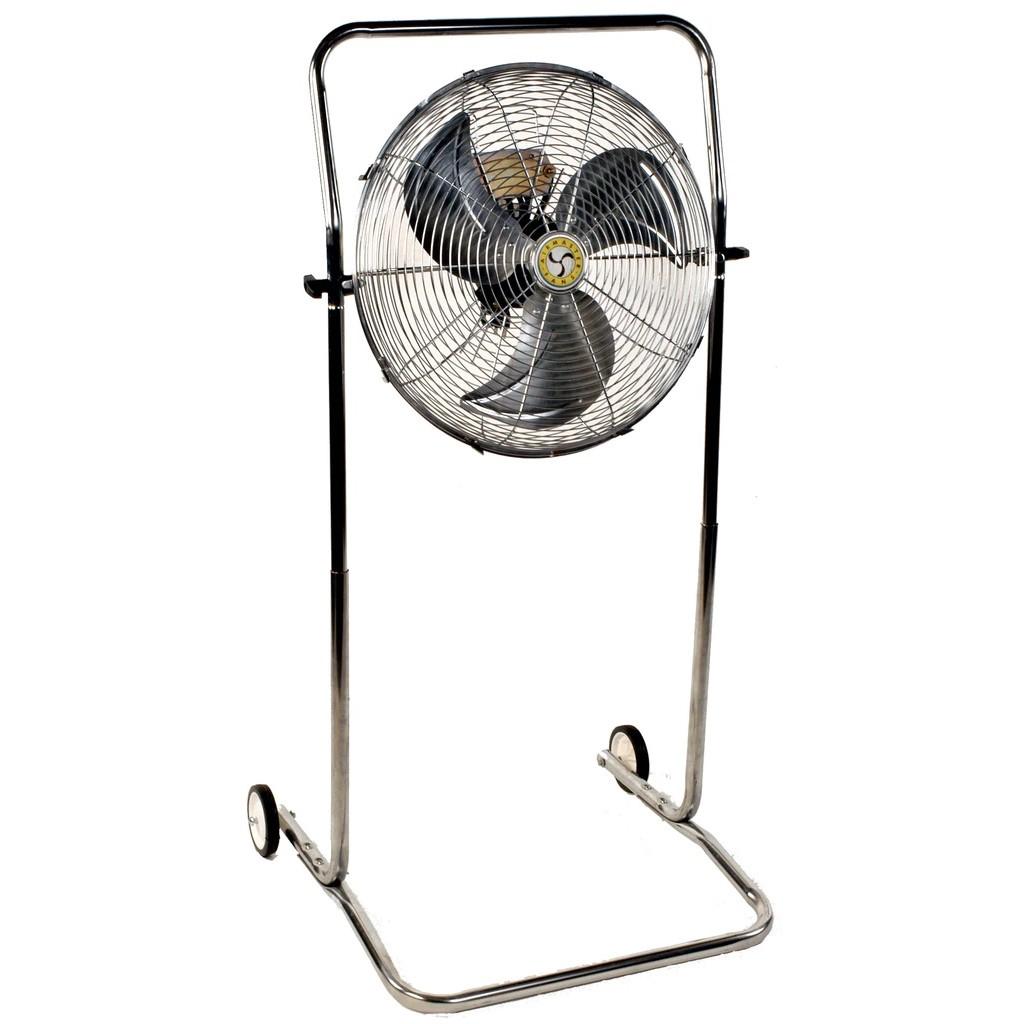

Airmaster 78974 Low Stand Pivot Fan 18 Inches 115V

Product Description

The AIRMASTER 78974 is an 18-inch low stand pivot fan built for industrial and commercial workstation applications. Powered by a 1/8 horsepower ball bearing motor rated at 115 volts, single phase, it delivers reliable airflow across three selectable speeds. The open drip proof motor construction resists incidental moisture and dust, making it well suited for shop floors, warehouses, and light industrial environments. A four-position easy-reach switch gives operators quick control over fan direction and speed without interrupting workflow. The unit ships ready to use with a 10-foot three-conductor cord and plug.

This fan is designed for workstation and general ventilation use in commercial and industrial settings. The low stand pivot configuration allows the fan head to be angled and directed toward specific work areas, improving spot cooling for technicians and tradespeople on the floor. Electricians, facilities maintenance crews, and general contractors commonly deploy this type of unit in shops, garages, and light manufacturing spaces where portable directed airflow is needed at floor or bench level.

Key Features

• 18-inch blade diameter for broad airflow coverage at workstation level
• 1/8 HP ball bearing motor rated at 115 volts, single phase for long service life
• Three-speed operation with four-position easy-reach switch for quick on-the-floor adjustments
• Open drip proof motor construction suitable for shop and light industrial environments
• Low stand pivot design allows directional airflow adjustment without repositioning the unit
• 10-foot three-conductor cord and plug included for immediate deployment

Compatibility

The AIRMASTER 78974 corresponds to model I-18LS and is designed as a direct OEM-style unit for industrial and commercial workstation ventilation applications requiring an 18-inch low stand pivot fan at 115 volts, single phase.

Installation Notes

Installation is typically handled by facilities maintenance personnel or electricians verifying that the supply circuit meets the 115-volt, single-phase requirement before plugging in the unit. Confirm the receptacle and circuit breaker are rated for the motor load before connecting. Place the fan on a stable, level surface and verify the pivot locking mechanism is secure before operating at any angle. Inspect the cord and plug for damage before each use and do not operate with a damaged power supply.

Technical Specifications

• Model: I-18LS
• Blade Diameter: 18 inches
• Voltage: 115 volts
• Phase: 1 Phase
• Motor Horsepower: 1/8 HP
• Speed Settings: 3 Speed
• Motor Type: Ball Bearing, Open Drip Proof
• Cord Length: 10 feet, Three-Conductor with Plug
• Weight: 15 pounds

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 78974
