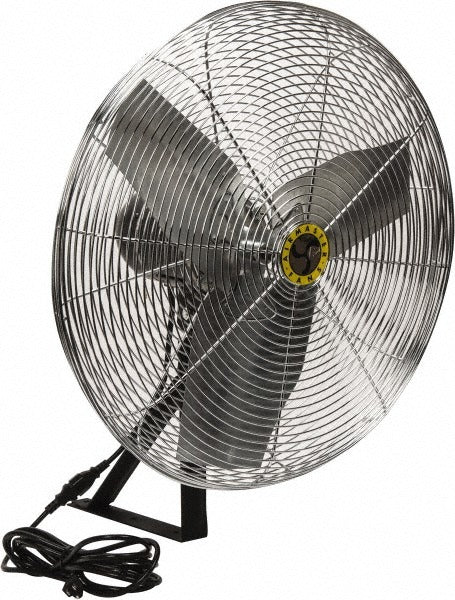

Airmaster 71725 Industrial Circulation Fan 24 Inch 5520 Cfm

Product Description

The AIRMASTER 71725 is a two-speed industrial circulation fan designed for high-volume air movement in demanding commercial and industrial environments. Powered by a 1/4 horsepower single-phase motor running on 115 volts at 3 amps, it delivers 5,520 CFM at high speed and 2,820 CFM at low speed through a 24-inch blade. The totally enclosed motor protects internal windings from dust and debris common in shop and warehouse settings. Vertical mount configuration suits wall or post installation where floor space is limited. Licensed HVAC and mechanical contractors as well as facility maintenance professionals are the typical installers.

The 71725 is suited for warehouses, manufacturing floors, garages, agricultural buildings, and large commercial spaces that require consistent air circulation without supplemental cooling. The two-speed control gives operators the flexibility to run the fan at reduced output during lighter-duty periods or ramp up to full 5,520 CFM when heat buildup or stagnant air is a concern. At 1,080 RPM maximum, the fan moves substantial air volume while keeping noise and energy draw manageable for continuous-duty operation.

Key Features

• 5,520 CFM at high speed for industrial-grade air movement
• 2,820 CFM at low speed for reduced-output operation
• 24-inch blade diameter with 1,080 RPM maximum speed
• Totally enclosed motor protects against dust and debris ingress
• Two-speed operation on a single-phase 115-volt circuit at 3 amps
• Vertical mount design for wall or post installation

Compatibility

Designed as an OEM-style industrial circulation fan for vertical-mount applications in single-phase 115-volt electrical environments typical of commercial and industrial facilities.

Installation Notes

Installation should be performed by a qualified electrician or licensed mechanical contractor in accordance with the National Electrical Code (NEC). De-energize the branch circuit and verify absence of voltage before making any wiring connections. Ensure the mounting surface or support structure is rated to handle the fan assembly weight of 41 pounds plus dynamic load. Confirm the supply circuit ampacity and overcurrent protection match the fan nameplate ratings before commissioning.
