Airmaster 60470 Portable Mancooler 30in 3-speed 115V 1/4HP

Product Description

The AIRMASTER 60470 is a 30-inch portable mancooler fan designed for high-airflow spot cooling in industrial and commercial work environments. Running on 115 volts and powered by a 1/4 HP motor, it delivers three selectable speeds via a pull-chain switch. The 4-in-1 mounting design allows this unit to be configured for floor, wall, ceiling, or ducted installation without additional hardware, making it adaptable to a wide range of facility layouts. At 97 pounds, it is a heavy-duty unit built for stationary or semi-permanent placement. Facilities maintenance crews and industrial HVAC contractors are the primary installers.

This unit is suited for spot cooling in manufacturing plants, warehouses, loading docks, garages, and other large open spaces where workers need directed airflow. The 4-in-1 mount configuration makes it a practical choice when the final installation position is not yet determined at the time of purchase, or when the unit may need to be repositioned seasonally. It is appropriate for both new installations and direct replacements of existing industrial circulation fans in similar size classes.

Key Features

• 30-inch fan diameter for high-volume airflow in large open spaces
• 3-speed control via pull-chain switch for simple, hands-on operation

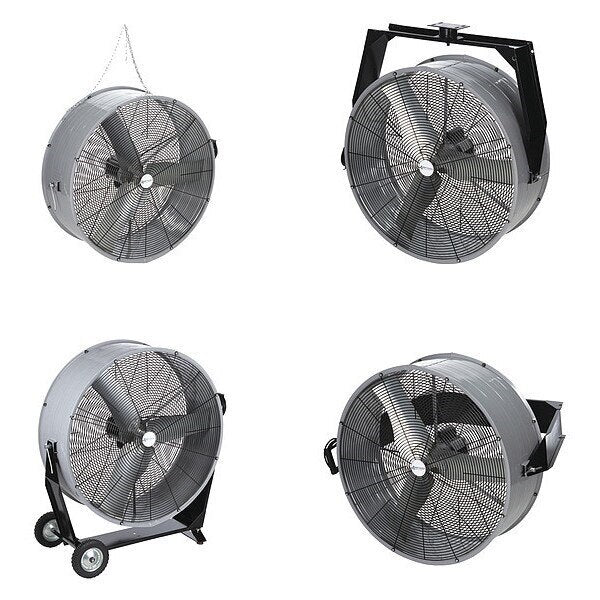

• 4-in-1 mounting system supports floor, wall, ceiling, and ducted configurations
• 1/4 HP motor on 115-volt single-phase power
• Portable design allows repositioning between work areas or seasons

Compatibility

Designed as a portable industrial mancooler fan for general spot-cooling applications in commercial and industrial facilities. No specific compatible system models were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician or facilities maintenance technician familiar with NEC requirements for motor-driven equipment. Disconnect and lock out power at the circuit before making any electrical connections. Confirm the supply circuit voltage and amperage rating match the fan motor requirements before energizing. Secure all mounting hardware per the manufacturer instructions for the selected mount configuration before operation.

Technical Specifications

• Fan Diameter: 30 inches
• Voltage: 115 volts
• Motor Output: 1/4 HP
• Speed Settings: 3-speed
• Switch Type: Pull chain
• Mount Type: 4-in-1 (floor, wall, ceiling, ducted)
• Weight: 97 pounds
• UPC: 783429604706

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 60470
