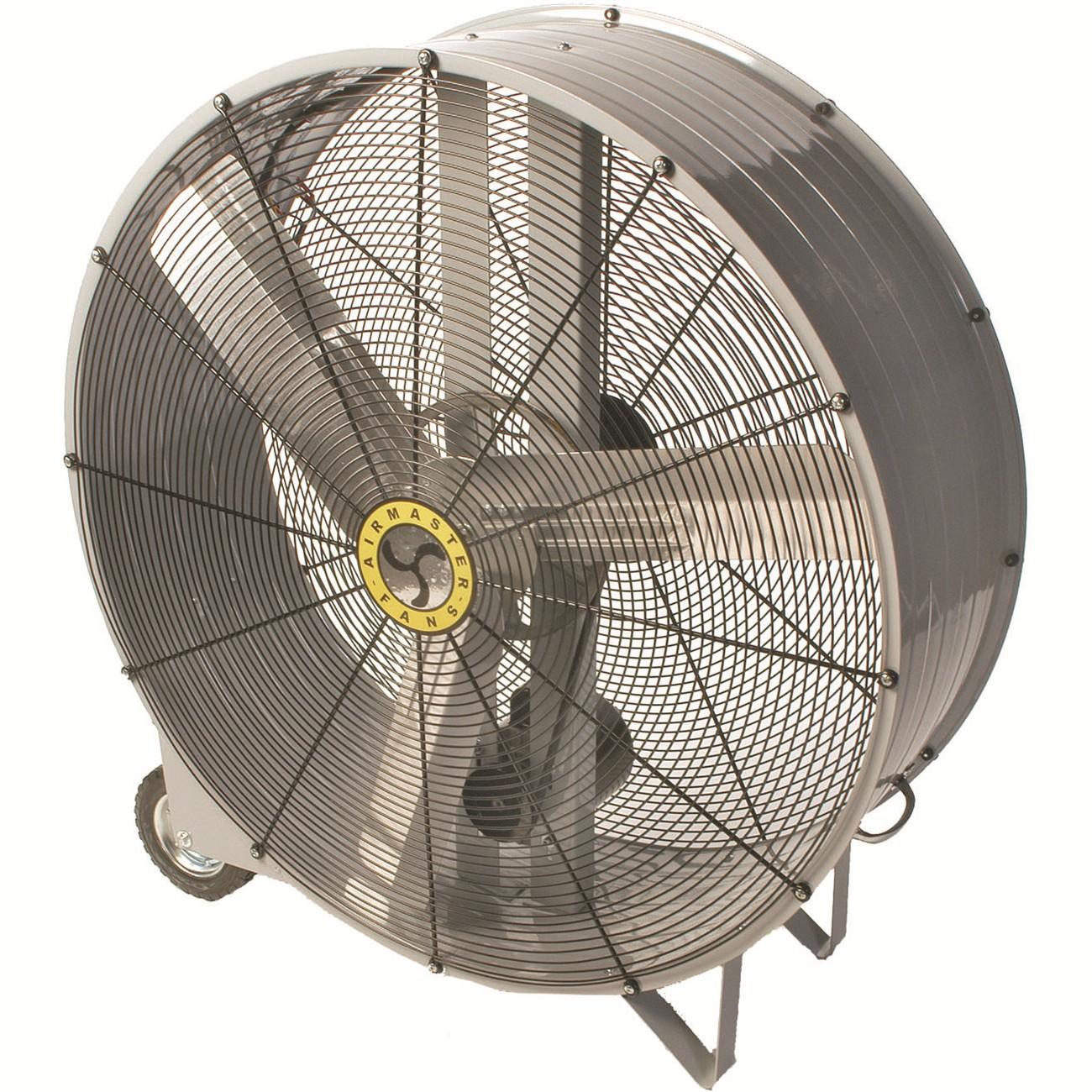

Airmaster 60014 Belt Drive Mancooler 42 Inch 14000 Cfm

Product Description

The AIRMASTER 60014 is a portable belt-drive mancooler designed to deliver high-volume airflow in demanding industrial and commercial work environments. Fitted with a 42-inch, 3-blade aluminum propeller inside a 45-inch by 15-inch barrel, this unit moves up to 14000 CFM at 540 RPM. Power comes from a 1 HP open drip-proof motor running on 115 VAC single-phase power with 2-speed operation controlled by a rocker switch. The steel housing is formed from 20-gauge roll-form steel with an epoxy coating for durability. This unit ships fully assembled and is suited for installation by HVAC technicians, industrial maintenance crews, and facilities personnel.

The AIRMASTER 60014 is built for spot cooling in warehouses, manufacturing floors, loading docks, garages, and other large open spaces where workers are exposed to heat stress. The portable design allows repositioning as work zones shift. Two-speed operation lets the operator balance airflow volume against noise level depending on the environment. The SJT-3 conductor power cord provides a direct plug-in connection, minimizing setup time on the job.

Key Features

• 42-inch, 3-blade aluminum propeller delivers up to 14000 CFM at 540 RPM
• 1 HP open drip-proof ball bearing motor rated for 115 VAC single-phase operation
• 2-speed rocker switch control for adjustable airflow output
• 20-gauge roll-form epoxy-coated steel housing for corrosion resistance
• Epoxy-coated steel spiral resilient-mounted guards for blade protection
• Fully assembled from the factory with SJT-3 conductor cord included

Compatibility

Designed as a portable spot-cooling unit for industrial and commercial applications requiring high-volume, belt-driven airflow delivery in open or semi-open spaces.

Installation Notes

Placement and initial power connection should be handled by a qualified electrician or experienced maintenance technician. Verify the supply circuit is rated for the unit's amperage draw before plugging in. Position the unit on a stable, level surface and ensure the power cord is routed away from foot traffic. Always disconnect power before adjusting the fan position or performing any service on the motor or guards.

Technical Specifications

• Blade Diameter: 42 inches
• Airflow: 14000 CFM
• Fan Speed: 540 RPM
• Motor Power: 1 HP
• Voltage: 115 VAC
• Phase: 1 Phase
• Speeds: 2
• Control Type: Rocker Switch
• Blade Material: Aluminum
• Housing Material: Steel (20-gauge roll-form epoxy coated)
• Motor Type: Open Drip Proof, Ball Bearing
• Barrel Dimensions: 45 inches diameter x 15 inches wide
• Overall Diameter: 46 inches
• Power Cord: SJT-3 Conductor
• Drive Type: Belt Drive
• Weight: 130 pounds

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 60014
