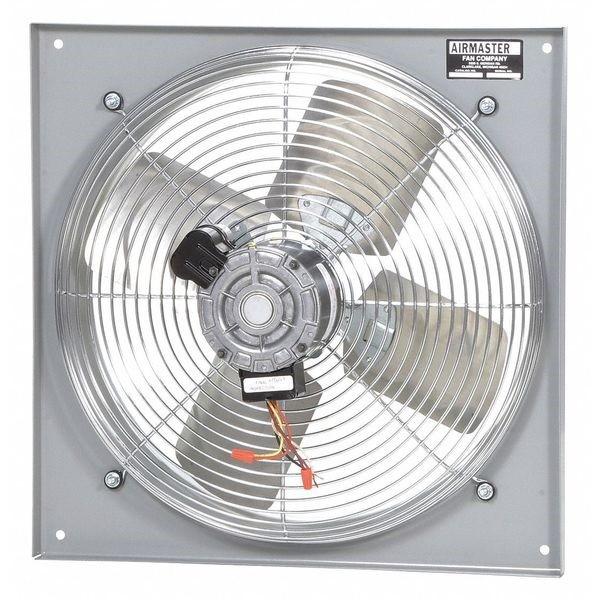

Airmaster 24110 Exhaust Wall Fan 12 Inches 115V 897 Cfm

Product Description

The AIRMASTER 24110 is a low-pressure, all-purpose exhaust wall fan designed for direct-drive ventilation in commercial and industrial spaces. It features a 12-inch blade, a totally enclosed motor rated at 1/30 HP, and delivers up to 897 CFM at 115 volts. The two-speed operation allows the installer to match airflow to the demands of the space. This fan corresponds to Airmaster model 12EPR16 and is typically installed by HVAC technicians or general contractors handling ventilation work.

The 24110 suits exhaust applications in light commercial, industrial, and agricultural settings where reliable wall-mounted ventilation is needed. Typical installations include equipment rooms, utility spaces, workshops, and similar environments requiring continuous or on-demand low-pressure exhaust. The direct-drive configuration eliminates belt maintenance and simplifies long-term service. Two-speed capability makes it adaptable to spaces with varying occupancy or heat loads.

Key Features

• 12-inch direct-drive fan for low-maintenance operation
• Two-speed motor provides flexible airflow control up to 897 CFM
• Totally enclosed motor protects internal components in dusty or humid environments
• 115-volt single-phase power supply compatible with standard commercial circuits
• 1/30 HP motor rating suitable for continuous duty exhaust service
• Wall-mount configuration for straightforward installation in standard exhaust openings

Compatibility

The 24110 corresponds to Airmaster model 12EPR16. Designed as an OEM-style replacement or new-installation exhaust fan for 12-inch wall exhaust applications in light commercial and industrial ventilation systems.

Installation Notes

Installation is performed by a licensed HVAC technician or qualified mechanical contractor. Disconnect and lock out all power to the circuit before mounting or wiring the fan. Wall opening dimensions should be confirmed against the fan housing before cutout. Wiring must comply with NEC requirements for the applicable voltage and motor load.

Technical Specifications

• Model: 12EPR16
• Fan Size: 12 inches
• Airflow: 897 CFM
• Voltage: 115 volts
• Motor HP: 1/30 HP
• Speed: Two Speed
• Motor Enclosure: Totally Enclosed
• Drive Type: Direct Drive
• Weight: 12 pounds
• UPC: 783429241109

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 24110
