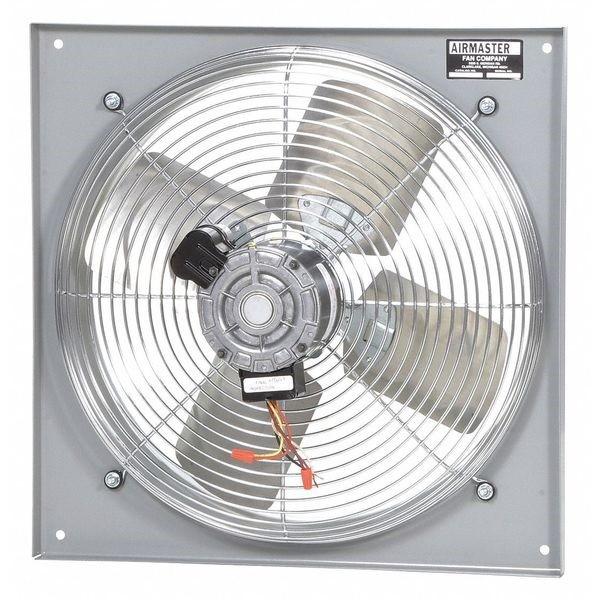

Airmaster 24100 Exhaust Wall Fan 10 Inches Two Speed

Product Description

The AIRMASTER 24100 is a low-pressure, all-purpose exhaust wall fan designed for direct-drive ventilation in light commercial and residential applications. Rated at 630 CFM with a 1/30 HP totally enclosed motor, this 10-inch fan operates on 115 volts and offers two-speed control for flexible airflow management. The totally enclosed motor protects against dust and moisture ingress, making it suitable for utility rooms, garages, workshops, and similar environments where reliable exhaust performance is required. Installation is handled by licensed HVAC technicians or qualified mechanical contractors.

The AIRMASTER 24100 model 10EPR16 is sized at 10 inches and suited for through-wall exhaust installations in spaces that require consistent air removal. The two-speed operation allows technicians to balance ventilation rates against noise and energy consumption. At 630 CFM, this unit handles general-purpose exhaust for small-to-mid-size enclosed spaces. The direct-drive design eliminates belt and pulley maintenance, reducing long-term service requirements.

Key Features

• Direct-drive motor eliminates belt and pulley maintenance
• Totally enclosed motor resists dust and moisture ingress
• Two-speed operation for adjustable airflow control
• 630 CFM airflow capacity at 10-inch blade diameter
• Compact 1/30 HP motor suited for low-pressure exhaust applications
• Single-phase 115V power supply for standard electrical circuits

Compatibility

Designed as an OEM-style replacement or direct installation unit for through-wall exhaust applications in residential and light commercial ventilation systems where a 10-inch, 115V direct-drive wall fan is specified.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified mechanical contractor in accordance with local mechanical codes and ASHRAE ventilation standards. Disconnect and lock out electrical power before mounting or servicing the unit. Ensure the wall opening is correctly sized and that the fan is properly sealed to prevent air bypass around the housing. Do not operate the fan without the motor fully secured and all guards in place.

Technical Specifications

• Model: 10EPR16
• Fan Diameter: 10 inches
• Airflow: 630 CFM
• Motor Type: Totally Enclosed
• Drive Type: Direct Drive
• Speeds: Two Speed
• Voltage: 115 volts
• Horsepower: 1/30 HP
• Weight: 12 pounds

Standard Information

• Brand: AIRMASTER
• Manufacturer Part Number: 24100
