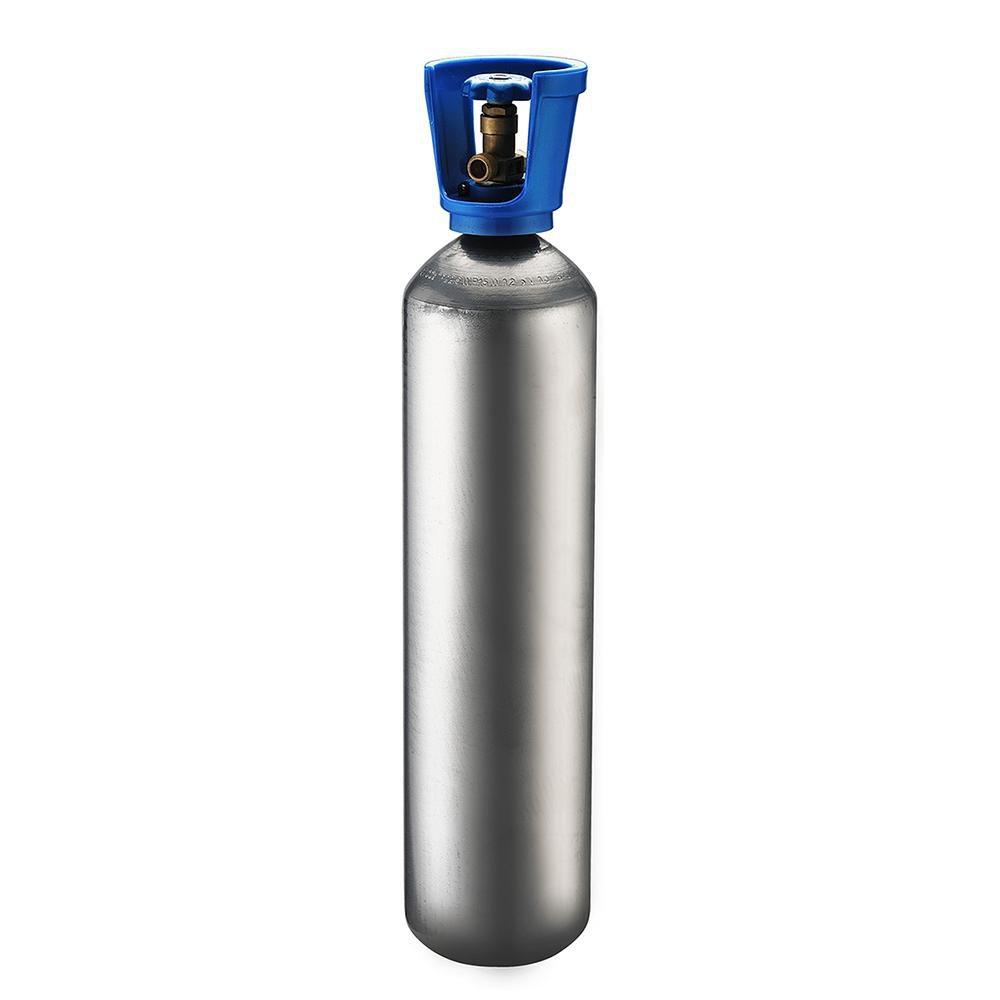

Airgas NI 80 Nitrogen Cylinder 80 cu ft (NT80R)

Product Description

Airgas NI 80 is an 80 cubic foot nitrogen cylinder (part no. NT80R) intended for industrial use. The cylinder supplies industrial-grade nitrogen (N2) and is configured with a CGA 580 high-pressure connection for process and welding applications. Typical uses include heat treatment, laser cutting, blanketing/inerting, and drilling operations. Cylinder dimensions and weight support fixed storage upright; SDS and Certificate of Conformance are available upon request.

• Contains 80 cubic feet of industrial-grade nitrogen (N2); cylinder type: 80 Steel HP
• CGA 580 high-pressure connection; DOT specification: 3AA - 2015 (Canada 3AA - M154)
• Dimensions: 7 in O.D. x 31 in length; weight: 49 lbs; water volume: 942 cu in

Product Highlights

Industrial-grade 80 cu ft nitrogen cylinder with CGA 580 connection for welding, heat treatment, and blanketing

Product Information

Standard Information

• Brand: AIRGAS
• Manufacturer Part Number: NI 80

Technical Specifications

• Brand: Airgas
• Manufacturer Part Number: NI 80
• Part Number: NT80R
• Gas: Nitrogen (N2)
• Gas Grade: Industrial
• Approximate Gas Volume: 80 cubic feet (ft3)
• Size / Cylinder Type: 80 Steel HP
• CGA Connection: CGA 580
• DOT Specification: 3AA - 2015 (Canada 3AA - M154)
• Outside Diameter: 7 in (178 mm)
• Length: 31 in (787 mm)
• Weight: 49 lbs (22.2 kg)
• Water Volume: 942 cubic inches (15.4 L)
• Airco/BOC Code: Q
• Air Products Code: C
• Certificates: SDS and Certificate of Conformance available upon request
