Airex TSS-575-W Titan Outlet Wall Penetration Seal Outlet (5/8 in, 3/4 in, 7/8 in, 1-1/8 in)

Product Description

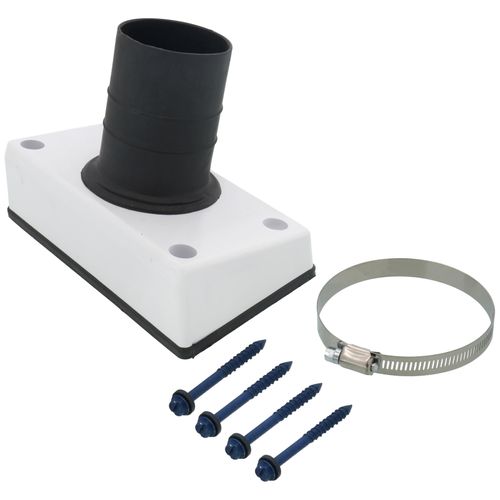

The Airex TSS-575-W is a PVC wall penetration seal outlet designed to provide a sealed transition for refrigerant and tubing penetrations. It accepts 5/8 in, 3/4 in, 7/8 in and 1-1/8 in tubing and fits 3/4 in wall insulation for smaller tubes or 1/2 in insulation for 1-1/8 in siding applications. The unit uses a gasket compression sealing system to resist weather and air leakage while providing vibration control, rodent protection, and a UV-resistant, high-impact enclosure.

• Accepts 5/8 in, 3/4 in, 7/8 in and 1-1/8 in tubing; fits 3/4 in insulation (smaller tubes) and 1/2 in insulation for 1-1/8 in tubing (siding)

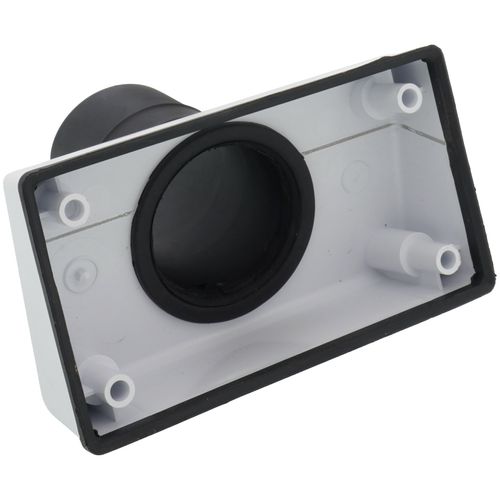

• Gasket compression sealing for weather- and air-leakage resistance and moisture protection
• Flexible elastomeric sleeve for vibration control, noise reduction, anti-rodent and anti-wind protection; PVC construction with UV resistance

Product Highlights

Engineered gasket-sealed wall outlet for refrigerant and line set penetrations; accepts 5/8–1-1/8 in tubing; PVC, UV-resistant, high-impact design; made in USA

Product Information

Standard Information

• Brand: AIREX
• Manufacturer Part Number: TSS-575-W
• Country of Origin: United States

Technical Specifications

• Brand: Airex
• MPN: TSS-575-W
• Product Name: Titan Outlet
• Product Type: Line set cover; gasket; wall penetration seal outlet
• Material: PVC
• Color: White
• Compatible Tube Sizes: 5/8 in; 3/4 in; 7/8 in; 1-1/8 in
• Fits Insulation Thickness: 3/4 in (for 5/8, 3/4, 7/8 tubing); 1/2 in (for 1-1/8 tubing, siding)
• Sealing Type: Gasket compression
• Mounting Type: Wall penetration
• Features: Vibration control; rodent protection; anti-wind; reduces piping vibration and noise; UV resistant; high impact strength
• Compliances: Meets building, energy, residential, mechanical, and green codes
• Weight: 0.8 lb
• Country of Origin: USA
• Accessories: TSS-575-G; TGS-510-W; 72C-W; TGS-510-G; TGS-575-W; 72X-W; TSS-550-W; 86110
