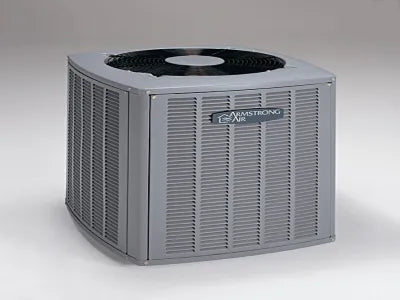

AIREASE 1.451022 16 SEER 2 Stage Heat Pump Armstrong

Product Description

The AIREASE 1.451022 is a 16 SEER two-stage heat pump designed for efficient temperature control in residential applications. This model operates on a power source of 208/230 voltage and is suitable for 1-phase, 60 Hz systems.

• Efficient heating and cooling capacities at two tons and 24000 BTU/hr.
• Compatible with Pro Series air handlers and Comfort Sync thermostats for advanced climate control.
• Designed with a proprietary heat transfer system for maximum efficiency.

Product Highlights

This heat pump features a quiet defrost mode and is AHRI certified, ensuring reliable performance and energy efficiency.

Product Information

Standard Information

• Brand: AIREASE
• Manufacturer: Allied Air Enterprises

Technical Specifications

• Type: 1-Stage Louvered
• Series: 4SHP16LS
• Material: Steel
• Motor HP: 1/10 hp
• Motor RPM: 1075 rpm
• COP Rating: 3.3 ton
• Dimensions: 24-3/4 in W x 26-3/4 in D x 33-3/4 in H
• EER Rating: 11.5
• HSPF Rating: 8.5
• SEER Rating: 16
• Power Source: 208/230 V 1 ph 60 Hz
• Compressor Type: Copeland UltraTech Scroll
• Refrigerant Type: R-410A
• Cooling Capacity: 2 ton
• Heating Capacity: 24000 Btu/hr
• Suction Line Size: 3/4 in
• Discharge Line Size: 3/8 in
• Mounting Type: Grommet
• Certifications: AHRI Certified, cETLus Listed, ENERGY STAR Certified
