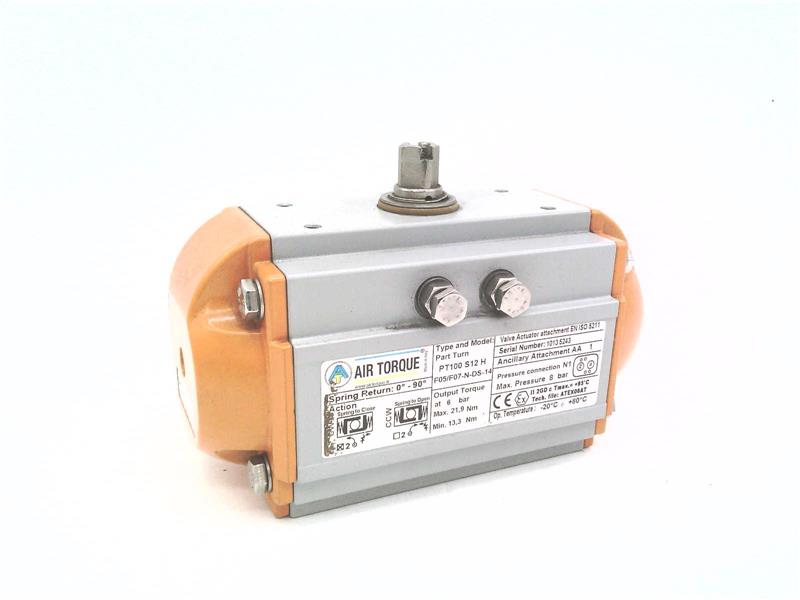

Air Torque PT100S12 Pneumatic Spring Return Actuator

Product Description

The AIR TORQUE PT100S12 pneumatic spring return actuator features a special alodur coating created through an electrochemical reaction, providing surface hardness and corrosion resistance. This actuator ensures a long service life with reduced friction and enhanced seal durability. It operates within a pressure rating of 36 to 116 PSI.

• Housing protected by special anodizing (alodur) inside and out
• Lids are impregnated and protected by a special anodizing process (alodur)
• Compliant with Industry Standards ISO 5211, DIN 3337, and VDI/VDE 3845

Product Highlights

The PT100S12 actuator is designed for durability and performance in industrial environments, featuring robust construction and a specialized coating for enhanced protection.

Product Information

Standard Information

• Brand: AIR TORQUE
• Manufacturer Part Number: PT100S12

Technical Specifications

• Item Name: Pneumatic Actuator
• Pressure Rating: 36 - 116 PSI
• Actuation Time: 0.3 SEC Opening, 0.35 SEC Closing
• Spring Stroke: 179 At Start, 118 At End
• Output Torque: 179 IN-LB Start, 240 IN-LB End At 100 PSI
• Body Material: Aluminum
• Finish/Color: Alodur Hard Anodized
• Industry Standards: ISO 5211, DIN 3337 and VDI/VDE 3845
• Temperature Rating: -40 To 176 DEG F
• Length: 6.06 IN
• Width: 3.6 IN
• Height: 3.35 IN
• Additional Specifications: Air Volume: 9.8 CU-IN Opening, 15.9 CU-IN Closing
• Action: Spring Return
• Brand: Air Torque
• Part #: PT100-S12-H-F05/F07-N-DS-14
• Category: Pneumatics
• Subcategory: Pneumatic Actuator
