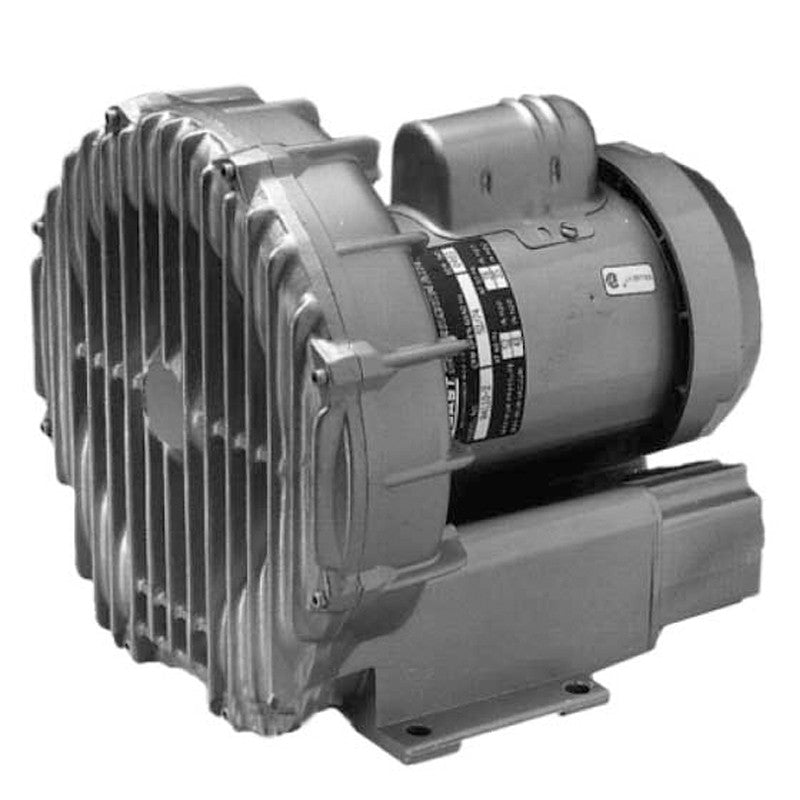

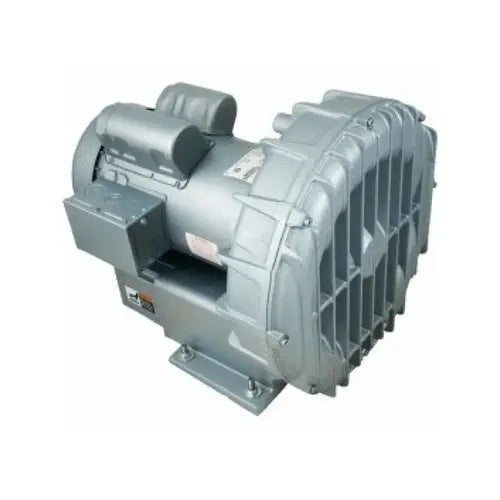

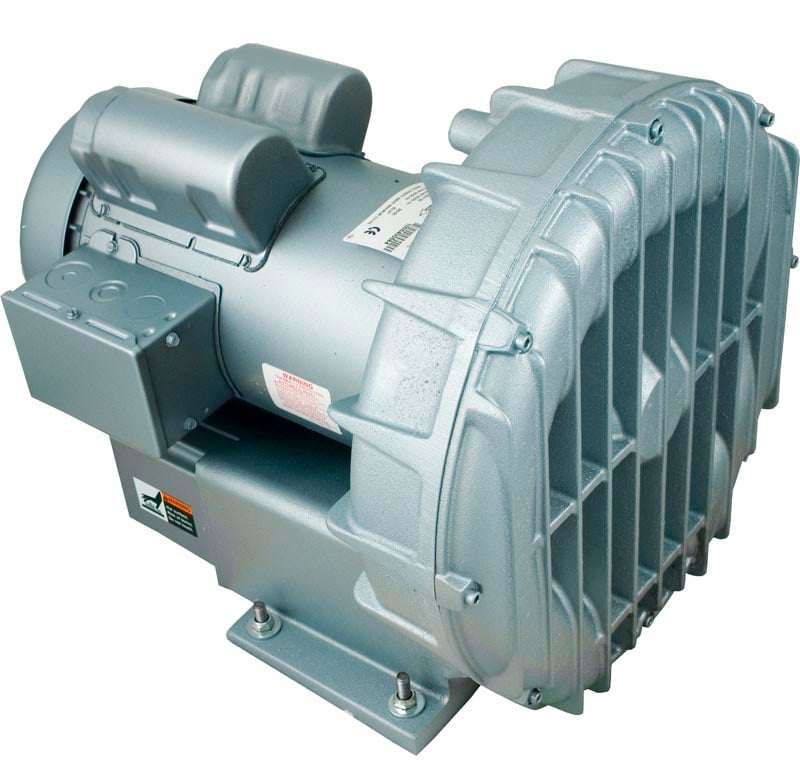

Air Supply Of The Future R5125-2 Regenair R5 Oilless Regenerative Blower 2.5 HP (120 V)

Product Description

Air Supply of the Future R5125-2 is an oilless regenerative blower (Regenair R5) with a 2.5 HP motor that operates on single-phase 120 V for continuous-duty commercial and industrial applications. The oilless design reduces contamination and maintenance while the regenerative blower provides continuous, non-pulsating airflow with low noise levels suitable for health clubs, laboratories, hotels, and food processing environments.

• Oilless regenerative design for continuous, non-pulsating airflow and reduced contamination
• 2.5 HP TEFC motor, single-phase 120 V operation with thermal protection Class B and listed blower amps
• Mountable in any plane; low noise levels within OSHA guidelines; maximum flow 160 CFM

Product Highlights

Oilless regenerative blower, 2.5 HP, single-phase 120 V, TEFC motor, 160 CFM max, Class B thermal protection, mountable in any plane

Product Information

Standard Information

• Brand: AIR SUPPLY OF THE FUTURE
• Manufacturer Part Number: R5125-2

Technical Specifications

• Brand: Air Supply of the Future
• Model: Regenair R5
• MPN: R5125-2
• Type: Oilless regenerative blower
• Horsepower: 2.5 HP
• Input Voltage: 120 V
• Phase: Single-phase
• Motor Type: TEFC
• Maximum Flow: 160 CFM
• Maximum Blower Amps: 23.6 / 12.9 - 11.8 A (see notes)
• Thermal Protection: Class B (insulation class noted; see notes)
• Mounting Type: Can be mounted in any plane
• Operation: Continuous-running
• Noise Level: Low noise levels (within OSHA guidelines)
• Dimensions: 16.5 in x 13.78 in x 13.56 in
• Frequency: 50/60 Hz
• Certifications: UL recognized and CSA approved
