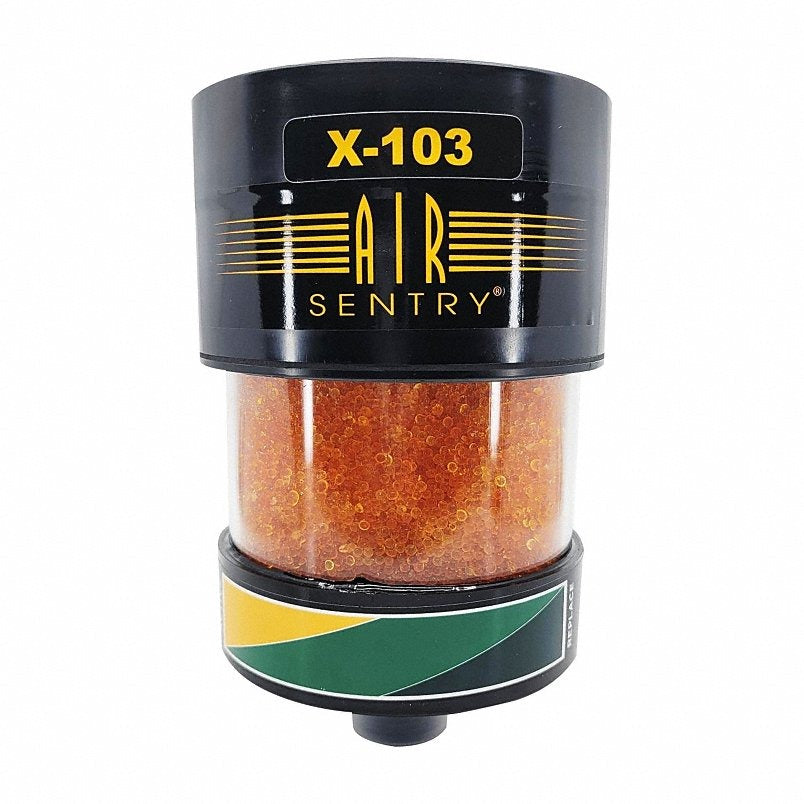

Air Sentry 095x103 Desiccant Breather X Series 2 Micron

Product Description

The AIR SENTRY 095x103 is a high-humidity hydraulic tank desiccant breather designed to block moisture and particulate contamination from entering oil reservoirs in industrial machinery and equipment. Part of the X Series, it uses silica gel desiccant and a 2 micron particulate rating to deliver dual-stage protection. The breather measures 7 inches in overall length and weighs 3.3 pounds. A demand-based airflow design allows air to pass only when pressure differentials require it, extending service life compared to continuous-flow breathers. Licensed HVAC and fluid power technicians serving industrial accounts will recognize this as a purpose-built solution for severe-environment fluid systems.

The 095x103 is intended for hydraulic reservoir applications operating in high-humidity environments where standard breathers fail prematurely. Typical installations include paper mills, steam cleaning rooms, mines, and quarries where ambient moisture levels are consistently elevated. The X Series design addresses condensation ingress that degrades hydraulic fluid viscosity, accelerates component wear, and triggers corrosion inside reservoirs. It is suited for both mobile and stationary hydraulic systems where reservoir venting is required during fluid level fluctuation.

Key Features

• Silica gel desiccant core removes moisture from incoming air before it contacts the hydraulic fluid
• 2 micron particulate filtration blocks fine contaminants from entering the reservoir
• Demand-actuated airflow extends desiccant and filter service life by venting only when pressure change requires it
• X Series construction engineered for extreme-humidity operating environments including mills, mines, and steam-cleaning facilities
• 7 inch overall length fits standard hydraulic reservoir breather port configurations

Compatibility

Designed as an OEM-style replacement desiccant breather for hydraulic oil reservoirs in industrial machinery and equipment requiring high-humidity moisture protection at a 2 micron filtration rating.

Installation Notes

Installation is performed by fluid power technicians or millwrights servicing hydraulic systems. Relieve all system pressure and depressurize the reservoir before removing the existing breather. Follow the equipment manufacturer's torque and thread specifications for the breather port fitting. Inspect the reservoir fill cap and surrounding fittings for additional moisture ingress points before returning the system to service.

Technical Specifications

• Series: X Series
• Desiccant Type: Silica Gel
• Particulate Rating: 2 Micron
• Overall Length: 7 inches
• Weight: 3.3 pounds

Standard Information

• Brand: AIR SENTRY
• Manufacturer Part Number: 095x103
