Air Sentry 095GRC12SC GRC12SC Replacement Cartridge (12 in) 095GRC12SC

Product Description

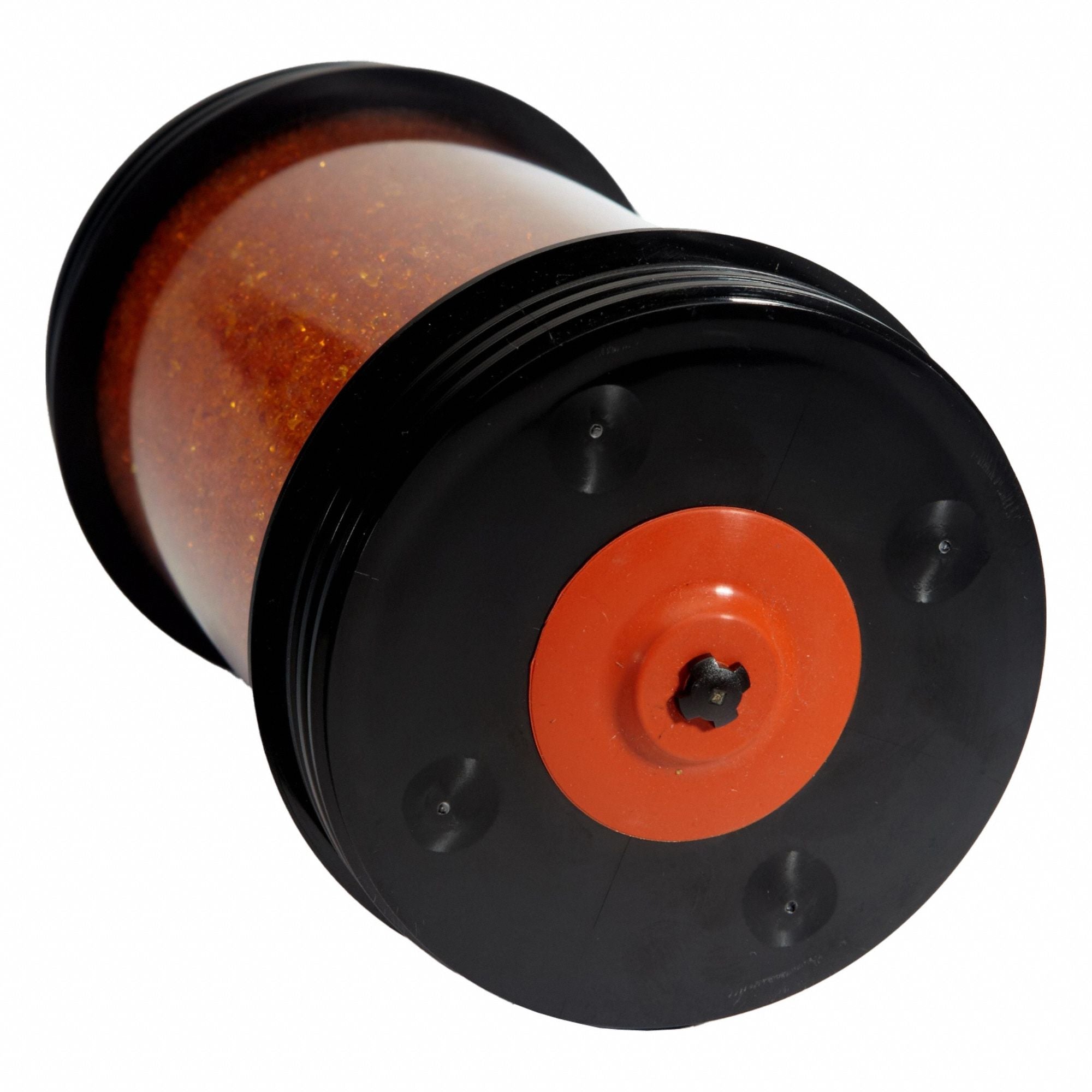

The Air Sentry 095GRC12SC is a Guardian-series replacement desiccant breather cartridge that uses 100% silica gel and includes an integrated isolation check valve. The cartridge is 12 in long with a 5 in outside diameter, contains 4.5 lb of media with 27.6 fl oz absorption capacity, and includes two 2-micron filters for inlet and outlet protection. The Tritan casing supports operation from -20 F (-29 C) to +200 F (+93 C).

• 100% silica gel media, media volume 4.5 lb with 27.6 fl oz absorption capacity
• Integrated isolation check valve and two 2-micron filters (inlet and outlet)
• 12 in overall length, 5 in outside diameter; Tritan casing; operating temperature -20 F (-29 C) to +200 F (+93 C)

Product Highlights

Guardian-series silica gel replacement cartridge with check valve, two 2-micron filters, and Tritan casing for broad temperature range.

Product Information

Standard Information

• Brand: AIR SENTRY
• Manufacturer Part Number: 095GRC12SC
• Country of Origin: USA

Technical Specifications

• Brand: Air Sentry
• Manufacturer Part Number: 095GRC12SC
• Model: GRC12SC
• Product Type: Desiccant breather replacement cartridge
• Media: 100% silica gel
• Media Volume: 4.5 lb (2 kg)
• Absorption Capacity: 27.6 fl oz (816 mL)
• Micron Rating: 2 micron
• Overall Length: 12 in
• Outside Diameter: 5 in
• Isolation Check Valve: Yes
• Included Filters: Two 2-micron filters (one inlet, one outlet)
• Operating Temperature: -20 F (-29 C) to +200 F (+93 C)
• Casing Material: Tritan
• Compatible Series: Guardian
• Compatible Manufacturer Part Numbers: G12S1NC; G12S1NGC; G12S2NC; G12S2NGC; G12S1BC; G12S1BGC
• Country of Origin: United States
