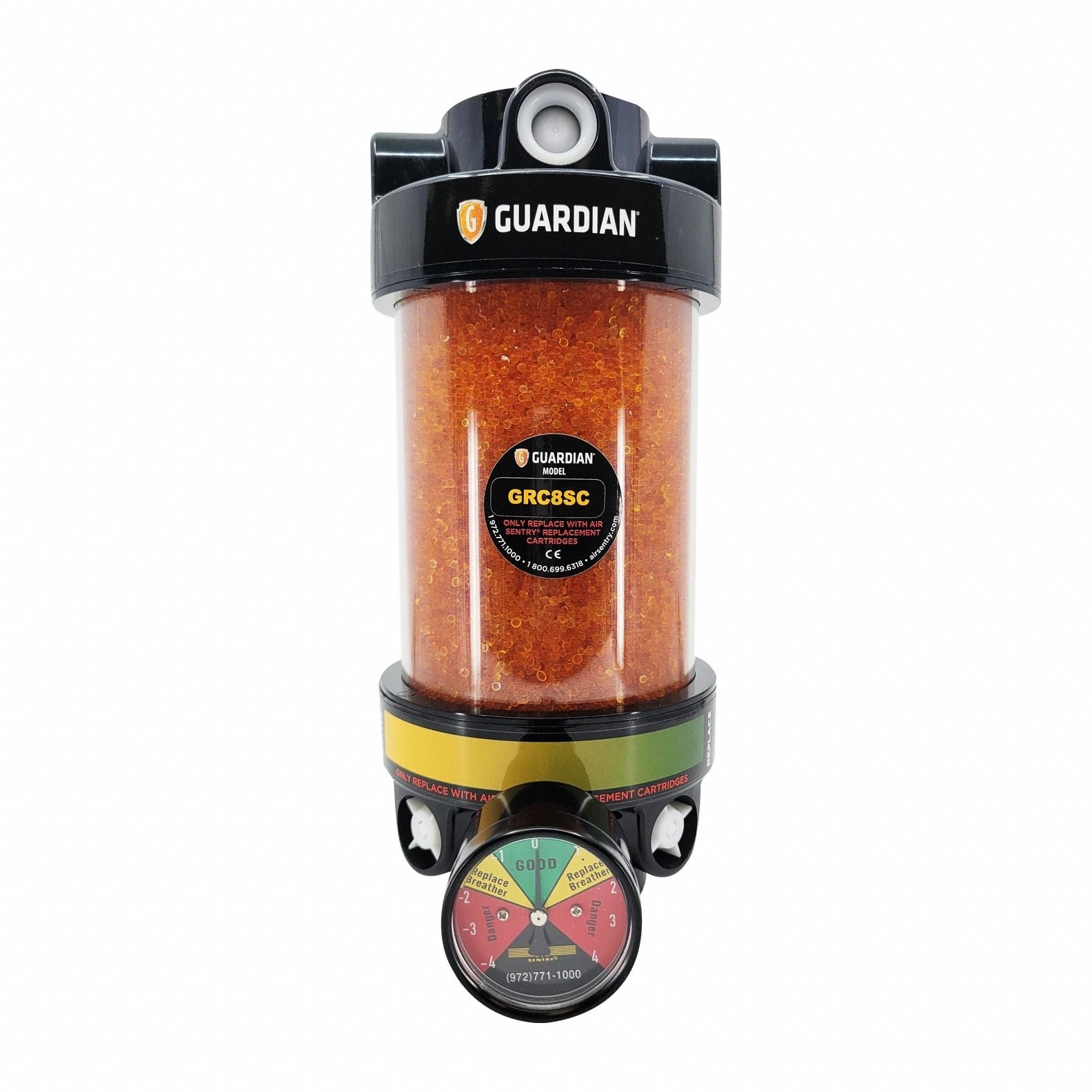

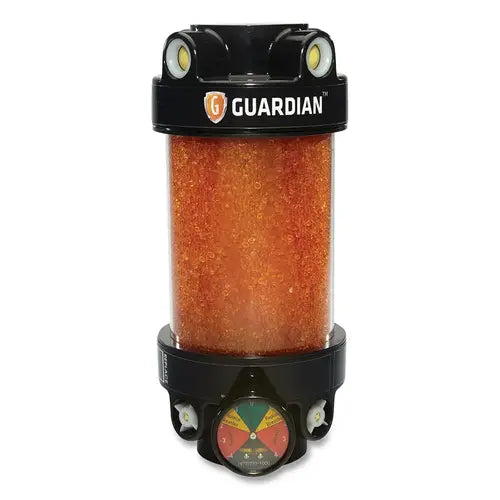

Air Sentry 095G8S2NGC Guardian Series Desiccant Breather 5.125 in Dia x 12 in H GRC8SC

Product Description

Air Sentry 095G8S2NGC is a Guardian Series desiccant breather that provides inlet/outlet filtration and desiccant protection for hydraulic and industrial reservoirs. It uses silica gel desiccant in a Tritan casing, includes an isolation check valve to prevent desiccant depletion, and features two 2-micron filters. Nominal size is 5.125 in diameter by 12 in height with 17.2 fl oz adsorption and a media weight of 2.8 lb.

• Isolation check valve preserves desiccant life and prevents exhaust air from depleting media
• Silica gel media with 17.2 fl oz adsorption capacity and 2.8 lb media weight
• Tritan casing with two 2-micron filters (inlet and outlet), screw-in 2 in NPT mounting

Product Highlights

Guardian Series silica gel breather with isolation check valve, two 2-micron filters, 5.125 in x 12 in dimensions, 17.2 fl oz absorption, replaceable GRC8SC cartridge

Product Information

Standard Information

• Brand: AIR SENTRY
• Manufacturer Part Number: 095G8S2NGC
• Country of Origin: USA

Technical Specifications

• Brand: Air Sentry
• Manufacturer Part Number: 095G8S2NGC
• Model: G8S2NGC
• Series: Guardian
• Desiccant Media: Silica gel
• Media Weight: 2.8 lb
• Absorption Capacity: 17.2 fl oz
• Diameter: 5.125 in
• Height: 12 in
• Mounting Connection: 2 in NPT
• Mounting Type: Screw-in
• Micron Rating: 2 micron
• Filters: Two 2-micron filters (inlet and outlet)
• Isolation Check Valve: Yes
• Casing Material: Tritan
• Operating Temperature: -20 F to +200 F
• Maximum Air Flow: 25 cfm
• Replacement Cartridge: GRC8SC
• Designed For: Hydraulic and industrial reservoirs; diesel fuel applications
• Country of Origin: USA
