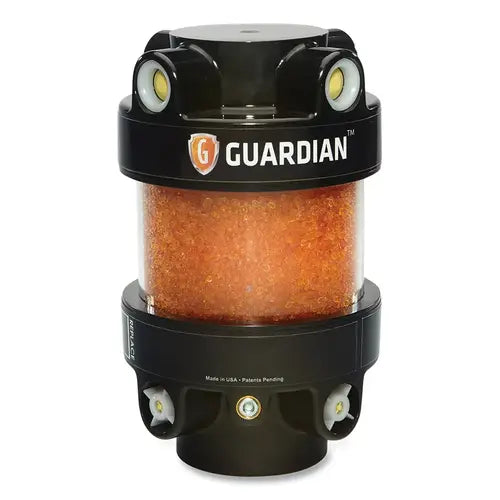

Air Sentry 095G5S1N Guardian Series Dessicant Breather 5.125 in dia, 9 in H

Product Description

The Air Sentry 095G5S1N Guardian Series Dessicant Breather features an isolation check valve that keeps exhaust air from depleting the desiccant and protects from volatile fumes and splashing fluids. The casing is constructed from Tritan, a patented material highly resistant to impact and chemicals with a broad range of operating temperatures. All Guardian-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

• Features an isolation check valve that keeps exhaust air from depleting the desiccant and protects from volatile fumes and splashing fluids
• The casing is constructed from Tritan, a patented material highly resistant to impact and chemicals with a broad range of operating temperatures
• All Guardian-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.

Product Highlights

The Air Sentry Guardian Series Desiccant Breather has a Tritan casing, isolation check valve, and two 2 micron filters.

Product Information

Standard Information

• Brand: AIR SENTRY
• Manufacturer Part Number: 095G5S1N

Technical Specifications

• Material: Silica Gel
• Type: G5S1N
• Nominal Diameter: 5.125 in
• Nom. Height: 9 in
• Absorption [Nom]: 9.2 fl oz
• MPN: 095G5S1N
• Base Material: 100% Silica Gel
• Height: 9 in 22.3 cm
• Diameter: 5.125 in
• Mounting Connection: 1” NPT
• Silica Gel: 1.5 lbs 0.68 kg
• Maximum Adsorption Capacity: 9.2 fl oz 272 mL
• Maximum Air Flow: 25 cfm
• Maximum Reservoir Fluid Flow: 187 gpm
• Type of Medium: Silica Gel
• Isolation Check Valve: No
• Compound Indicating Gauge: No
• Cartridge: GRC5S
• Operating Temperature: -20°F (-29°C) to +200F (+93°C)
• Model: G5S1N
• Category: Assembly
• Gauge: No
• Isolation Valve: No
