Description

Product Description

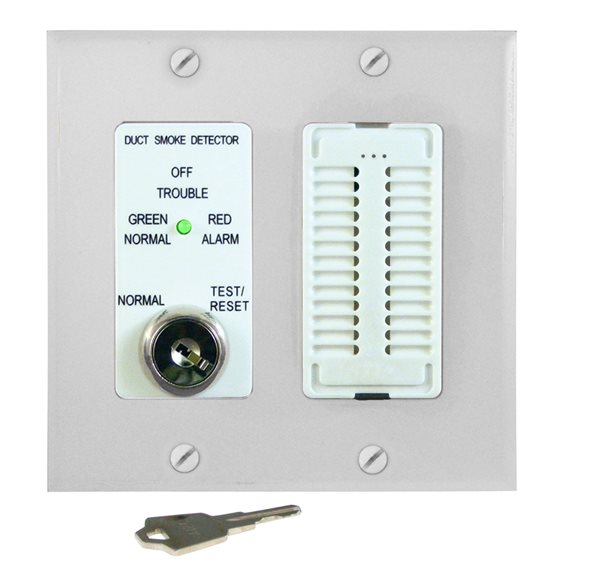

The AIR PRODUCTS MSR-50RKA/W remote accessories are designed for use with Air Products and Controls duct smoke detectors. It provides the range of functionality required by your local commercial Application. This key test station comes in a white double gang Decora style control assembly with enhanced sounder.

  • The MSR-50RK provides a key-operated detector test and reset function.
  • Enhanced sounder assembly.
  • Decora style cover plates ( white).

Product Highlights

Remote accessories designed for use with Air Products and Controls duct smoke detectors. Key test station in a white double gang Decora style control assembly with enhanced sounder.

Product Information

Standard Information

  • Brand: AIR PRODUCTS
  • Manufacturer Part Number: MSR-50RKA/W
  • Country of Origin: USA

Technical Specifications

  • Operating Element: Key switch
  • Status Indicator – Alarm: Red
  • Status Indicator – Fault: Off
  • Operating Temperature (Min): 0°C
  • Operating Temperature (Max): 49°C
  • Operating Temperature: 0 to 49°C
  • Standards: UL 268
  • Colour: White
  • Product Height (Wo/Base): 114.3mm
  • Product Width: 114.3mm
  • Key Type: Remote Test station test & reset key
  • Housing Type: Face plate
  • Supply Current: 15 mA @ 24 VDC from detector
  • Alarm LEDs: 15 mA @ 24 VDC from detector
  • Horn: 20 mA @ 24 VDC from detector
  • Alarm Auditory Levels [Db]: 78 db @ 10' (3.0m)
  • Reset: Normally open
  • Wiring Terminations LEDs/Horn: 6" (15.2cm)/24 AWG pigtails
  • Wiring Terminations Switches: 6" (15.2cm)/22 AWG pigtails
  • Dimensions Single-gang: 2.75"W x 4.5"H (6.9 x 11.4 cm)
  • Dimensions Double-gang: 4.5"W x 4.5"H (11.4 x 11.4 cm)
  • Approvals: UL File #S7425 CSFM 7300-1004:107 MEA 73-92-E, Vol. 25
  • Manufacturers: Air Products and Controls
  • Brand Name: Air Products and Controls
  • IPN: 513026
  • MPN: MSR-50RKA/W
  • Safety Standards: California Prop 65
  • Exterior Dimensions (D) (inches): 3.000000
  • Exterior Dimensions (W) (inches): 5.000000
  • Exterior Dimensions (H) (inches): 5.000000
