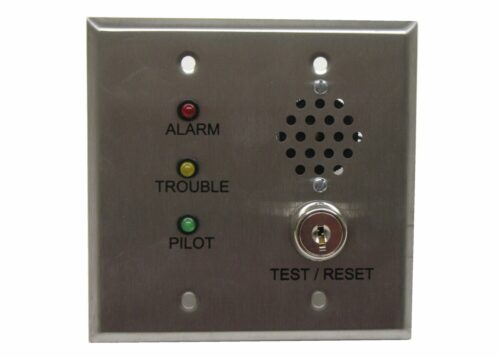

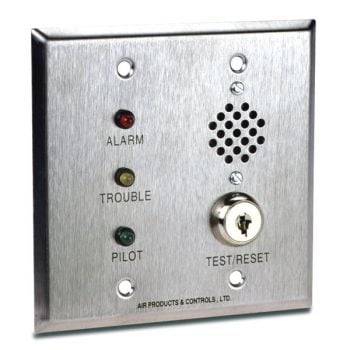

Air Products & Controls MS-RH/KA/P/A/T Remote Alarm with Horn, Red Alarm LED, Yellow Trouble LED, Green Pilot LED and Key-Operated Test/Reset Switch

Product Description

The AIR PRODUCTS & CONTROLS MS-RH/KA/P/A/T remote accessories are designed to be used with duct smoke detectors to provide audible and visual indication as well as remote test/reset functions. Constructed of brushed stainless steel, these devices mount on a standard single or double gang electrical backbox. Compatible with ADSD, DSD, RW, SM, and SL Series duct smoke detectors.

• Mount on a double gang electrical backbox
• Durable brushed stainless steel
• Red alarm LED

Product Highlights

Provides both audible and visual alerts with remote testing and reset capabilities. Built with durable brushed stainless steel.

Product Information

Standard Information

• Brand: AIR PRODUCTS & CONTROLS
• Manufacturer Part Number: MS-RH/KA/P/A/T
• Country of Origin: United States

Technical Specifications

• ADI Part Number: PL-MSRHKAPAT
• Brand Name: Potter Electric Signal, LLC
• Manufacturer Part Number: MS-RH/KA/P/A/T
• Product Model: MS-RH/KA/P/A/T
• Product Name: MS-RH/KA/P/A/T Annunciator Plate
• Product Series: MS Series: Remote Accessories
• Product Type: Annunciator Plate
• Application/Usage: Alarm, Indoor, Outdoor, Security, Smoke Detector
• Material: Brushed Stainless Steel
• Installation Type: Commercial
• Mount Type: Electrical Box Mount
• Compatibility: Potter Smoke Detectors: ADSD Series DSD Series RW Series
• Country of Origin: US
• UPC: 814498020248
• Type: Accessory
• Mount: Wall
• Supply Current: 15 mA @ 24 VDC from detector
• Alarm LEDs: 15 mA @ 24 VDC from detector
• Horn: 20 mA @ 24 VDC from detector
• Alarm Auditory Levels [Db]: 78 db @ 10' (3.0m)
• Reset: Normally open
• Wiring Terminations LEDs/Horn: 6" (15.2cm)/24 AWG pigtails
• Wiring Terminations Switches: 6" (15.2cm)/22 AWG pigtails
• Approvals: UL File #S7425 CSFM 7300-1004:107 MEA 73-92-E, Vol. 25
• Item: Detector Remote Alarm
• Series/Model: MS
• Sound Level: 78 Decibel at 10 Foot
• Wire Size: 6 to 24 AWG (LED), 6 to 22 AWG (Switch)
• Includes: Red Alarm LED, Green Pilot LED, Yellow Trouble LED, Key Test/Reset, Horn
• Used On: Duct Smoke Detector
• Approval: UL, CSFM 3240-1004, MEA 73-92-E
• Compatible with: Air Products and Controls Conventional Duct Smoke Detectors
• Construction: Stainless Steel
• Condition: New
• Unit of Measurement: EA (Each)
• Mounting: 2-Gang
• Listings & Approvals: CSFM, cULus, MEA
• Power Source: N/A
• Battery Included: No
• Battery Size: N/A
• Battery Capacity: N/A
• Battery Life: N/A
• Number of Batteries: N/A
• Voltage: N/A
• Motor Type: N/A
• Features: Remote Alarm Accessory, Finish Steel , Wall Mounting, Alarm Curre
• Cable Length: N/A
• California Prop 65 Warning: N
