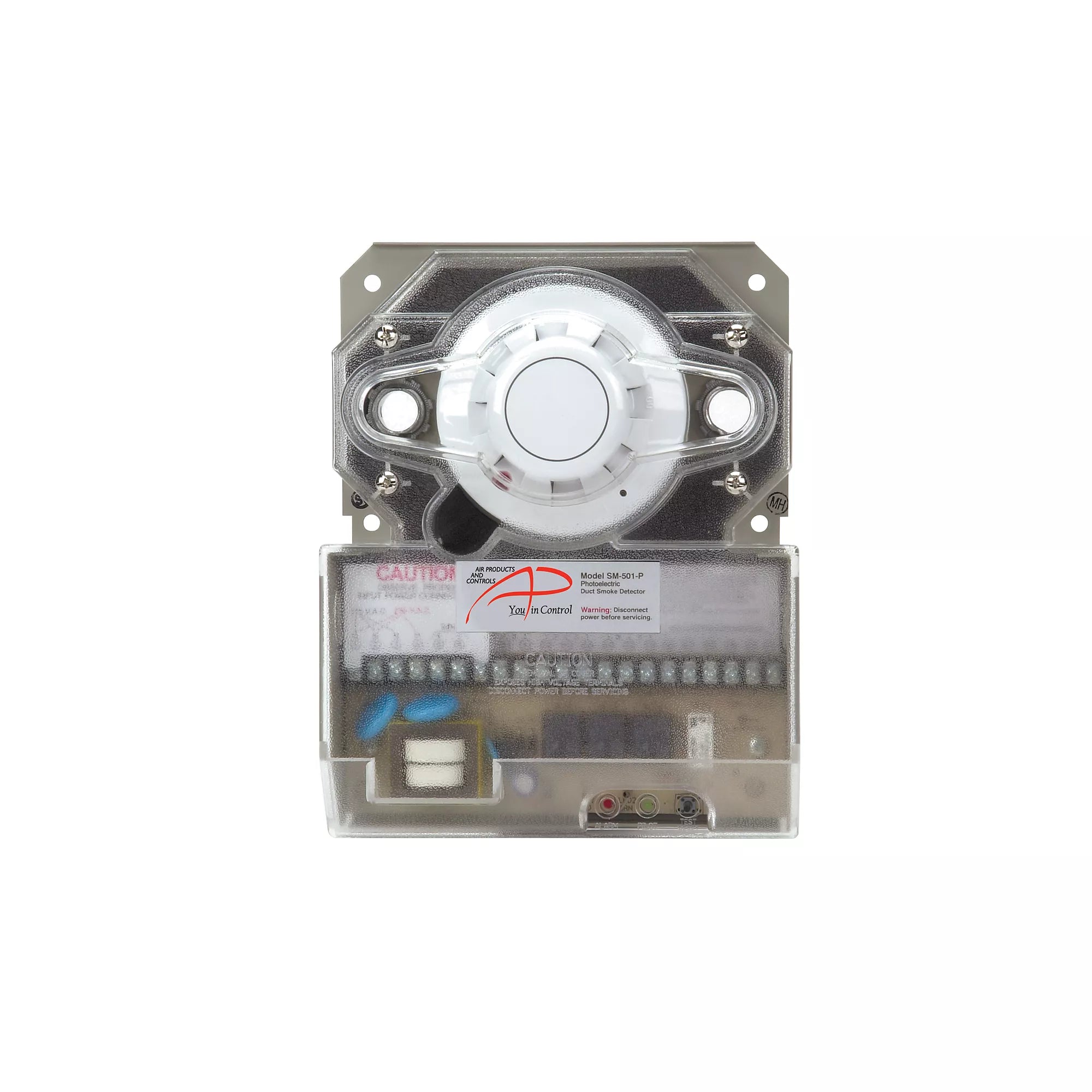

Air Products and Controls SM-501-P Apollo America Photoelectric Duct Smoke Detector

Product Description

The Air Products and Controls SM-501-P is a versatile photoelectric duct smoke detector designed for integration into HVAC systems to detect smoke presence. It's ideal for commercial, industrial, and residential settings, ensuring air quality is maintained by preventing smoke recirculation.

• Versatile voltage compatibility: 230VAC, 115VAC, 24VAC, or 24VDC.
• Interconnection capability for up to 30 units, enhancing systemic response to smoke detection.
• UL and CUL listed ensuring high standards of safety and performance.

Product Highlights

This detector features a compact design and can be fitted into existing setups with ease. Its interchangeable heads allow for tailor-made setup according to specific detection needs.

Technical Specifications

• Type: Photoelectric
• Voltage: 24 VDC/VAC, 115 VAC, 230 VAC
• Dimensions: Width: 3.13 inches, Height: 9.25 inches, Length: 7.38 inches
• Weight: 3.4 pounds
• Operating Temperature Range: 32°F to 140°F
• Mounting: Screw Terminal
• UL Listed: Yes
• CUL Listed: Yes
