Air Products And Controls PAM-4 PAM Series Multi-Voltage Relay Module 9-40 VDC

Product Description

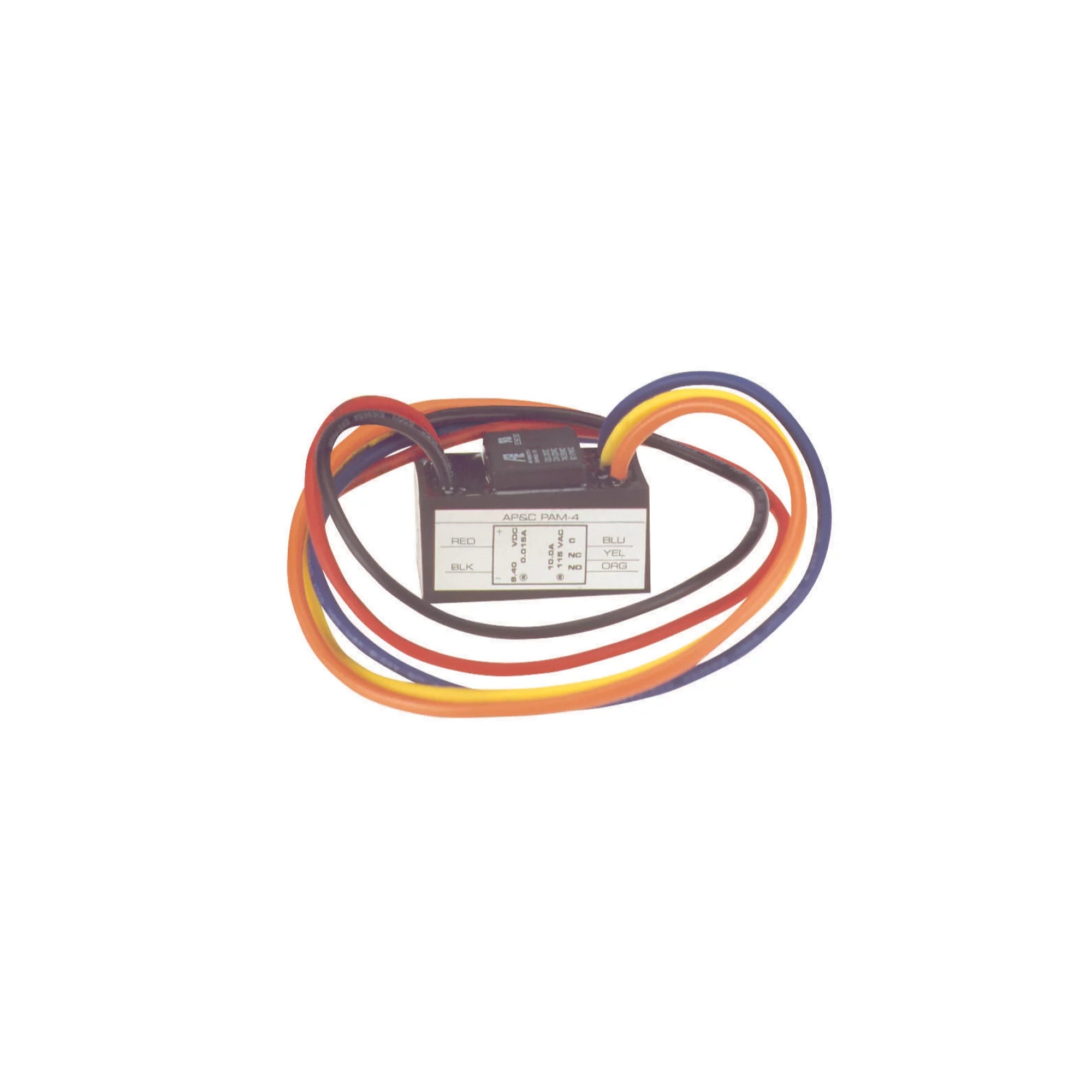

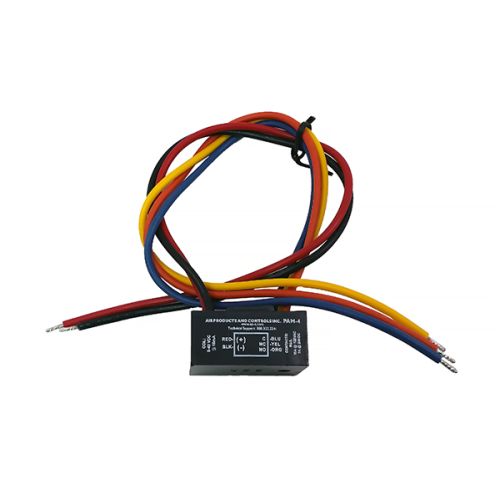

The AIR PRODUCTS AND CONTROLS PAM-4 is an encapsulated, single SPDT Fire Alarm Control Relay. The PAM Series Multi-Voltage Relay Module provides 10.0 A form “C” contacts and can be energized across a wide voltage range from 9VDC to 40VDC. The 15mA operating current is constant across the operating range. The input voltages are polarity-sensitive and diode-protected.

• Provides 10.0 A form “C” contacts
• Energized across a wide voltage range from 9VDC to 40VDC
• Ideal for temperature control, fire alarm, and building automation systems

Product Highlights

The PAM-4 relay module is suitable for 12VDC and 24VDC EOL circuits. It features polarity-sensitive and diode-protected input voltages.

Product Information

Standard Information

• Brand: AIR PRODUCTS AND CONTROLS
• Manufacturer Part Number: PAM-4

Technical Specifications

• UOM: EA
• Amps: 0.015
• Type: Encapsulated, Flying Leads
• Brand: Air Products and Controls
• Voltage: 9-40 VDC
• For Use With: Temperature Control, Fire Alarm, Building Automation Systems
• Prop 65: Yes
