Air Products And Controls PAM-1 Relay 10 Amp

Product Description

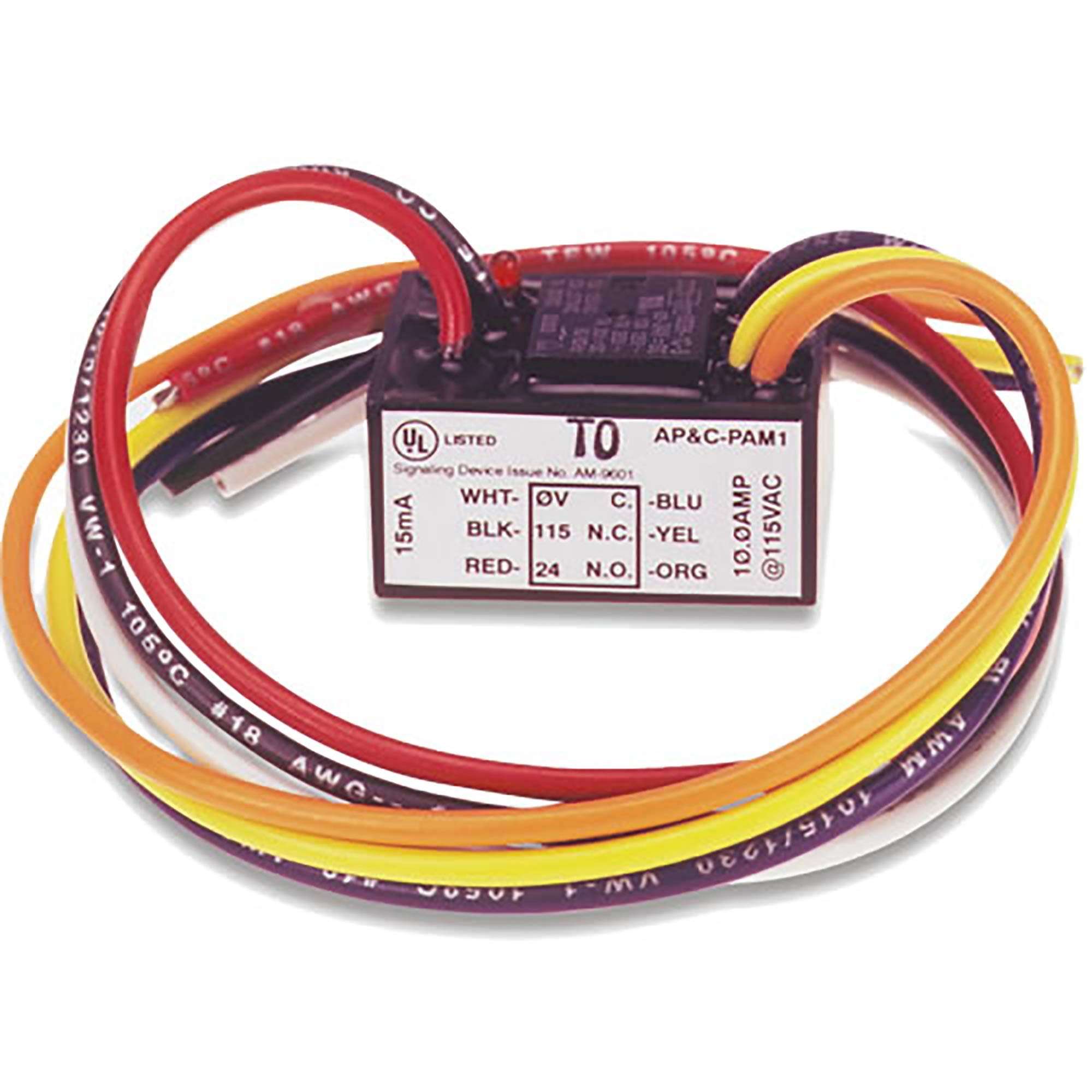

The Air Products and Controls PAM-1 is an encapsulated multi-voltage relay module with flying leads, delivering reliable performance. It is ideal for applications where remote relays are required for control or status feedback. Suitable for HVAC, fire alarm, security, building automation, and lighting control systems. Packaged with a self-tapping screw and double sided tape for easy installation.

• Multi-voltage input
• Small size
• Multiple mounting options

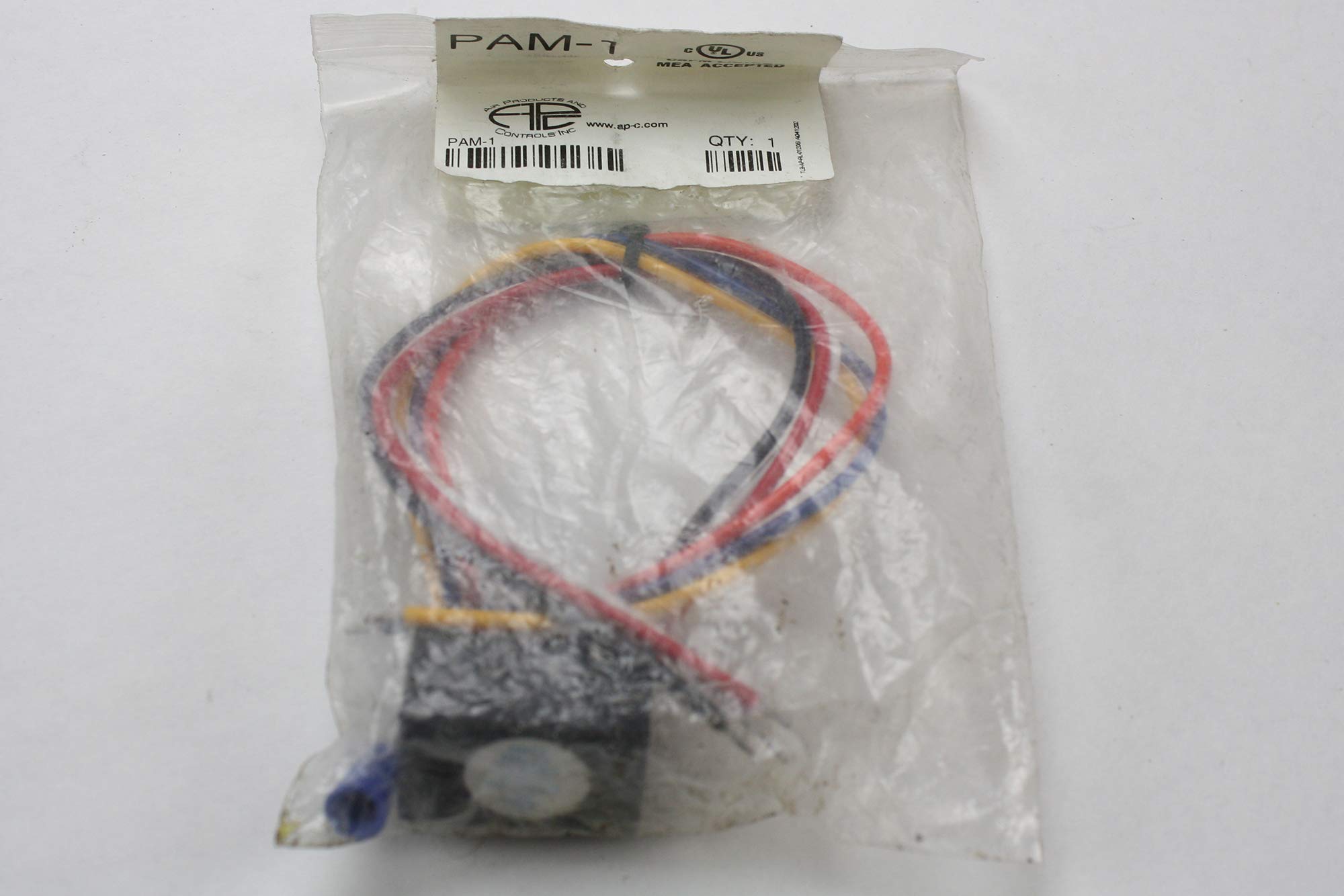

• Wirenuts, mounting screw, and tape included

Product Highlights

The PAM-1 relay module provides 10A Form C contacts and multiple mounting options. It supports 24 VDC, 24 VAC, or 120 VAC input voltages.

Product Information

Standard Information

• Brand: AIR PRODUCTS AND CONTROLS
• Manufacturer Part Number: PAM-1
• Country of Origin: United States

Technical Specifications

• Brand: Air Products and Controls
• MPN: PAM-1
• Product Type: RELAY
• Manufacturer: Air Products & Controls, Inc
• Product Group: BISS
• Number of Items: 1.0
• Number of Relays: 1
• Contact Rating: 10 A
• Current Rating: 10 A
• Contact Type: SPDT
• Coil Voltage: 24 VAC,24 VDC,120 VAC
• Feature: LED
• Mount: Screw,Double Sided Tape
• Contact Configuration: (1) SPDT dry form "C”
• Wire Size: 12" (30.5 cm), 18 AWG
• Operating Temperature: 32° to 120°F (0° to 49°C)
• Mounting: Pre-drilled mounting screw hole and mounting screw provided; double-sided tape also provided
• Approvals: UL Listed Fil #S3403, CSFM 7300-1004:101, MEA 73-92-E Vol. 21
