Air Products And Controls msr-50rm/r Remote Control Assembly w/ Single Gang Cover Plate

Product Description

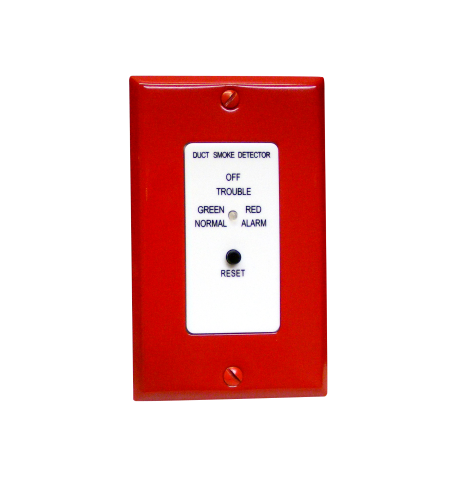

The AIR PRODUCTS AND CONTROLS MSR-50RM/R remote accessories are designed for use with duct smoke detectors. It provides the functionality required by commercial applications. This assembly features a magnet test station in a red single gang Decora style control assembly with a hidden magnet test switch and a pushbutton reset.

• Tri-color visual indication of detector Pilot, Trouble and Alarm conditions
• Lever-operated quick-connect No-Tools four-position terminal block
• Port for plugging in the optional strobe assembly

Product Highlights

Remote accessories designed for use with duct smoke detectors, providing a range of functionality.

Product Information

Standard Information

• Brand: AIR PRODUCTS AND CONTROLS
• Manufacturer Part Number: MSR-50RM/R
• Country of Origin: USA

Technical Specifications

• Operating Element: Magnet
• Status Indicator – Alarm: Red
• Status Indicator – Fault: Off
• Operating Temperature (Min): 0°C
• Operating Temperature (Max): 49°C
• Operating Temperature: 0 to 49°C
• Standards: UL 268
• Colour: Red
• Product Height (Wo/Base): 114.3mm
• Product Width: 69.85mm
• Housing Type: Face plate
• Type: ACCESSORY
• Supply Current: 15 mA @ 24 VDC from detector
• Alarm LEDs: 15 mA @ 24 VDC from detector
• Horn: 20 mA @ 24 VDC from detector
• Alarm Auditory Levels [Db]: 78 db @ 10' (3.0m)
• Reset: Normally open
• Wiring Terminations LEDs/Horn: 6" (15.2cm)/24 AWG pigtails
• Wiring Terminations Switches: 6" (15.2cm)/22 AWG pigtails
• Approvals: UL File #S7425 CSFM 7300-1004:107 MEA 73-92-E, Vol. 25
