Description

Product Description

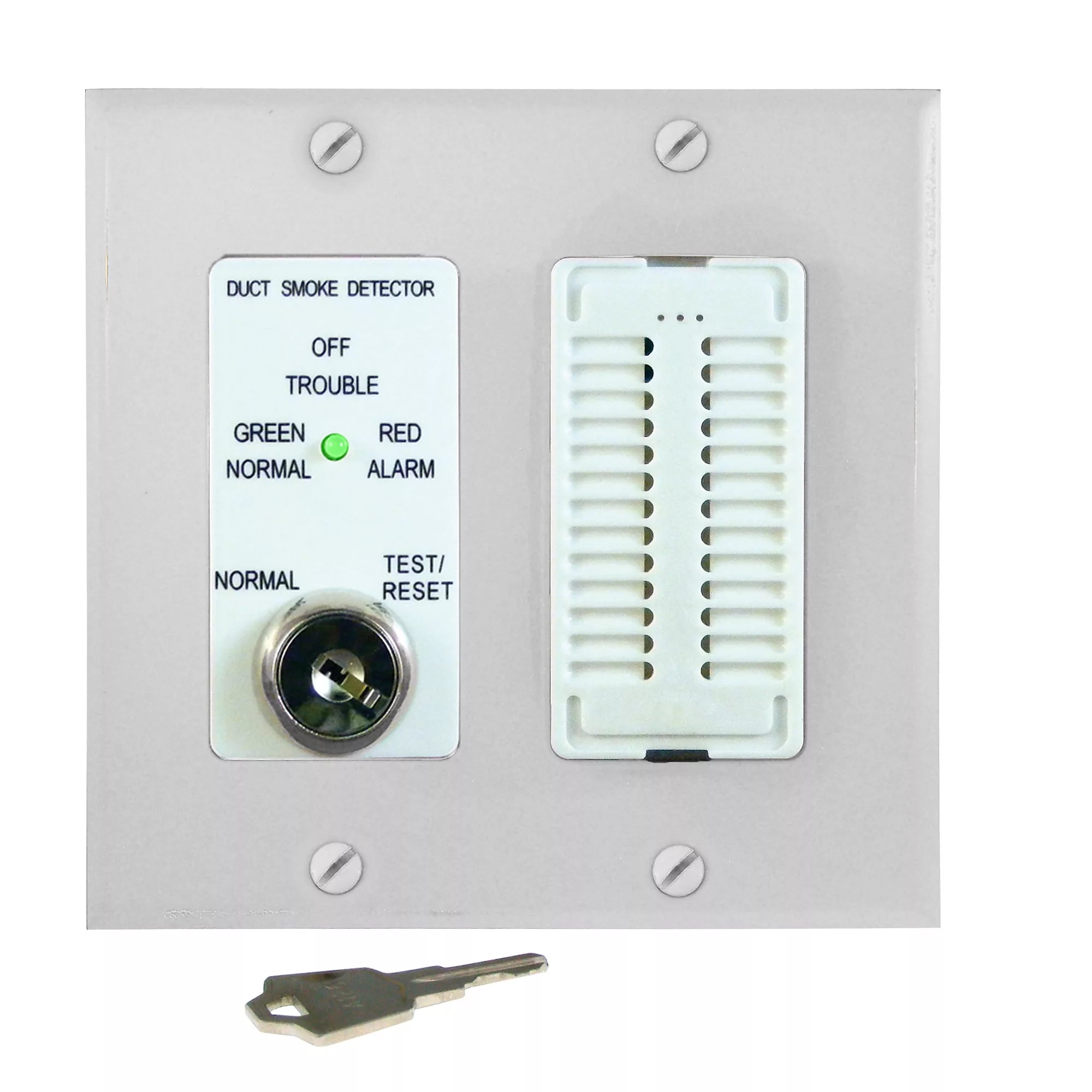

Air Products and Controls MSR-50RKA/W is a remote control and sounder assembly for duct smoke detectors that provides audible and visual indication plus key-operated test and reset. The unit operates at 24 VDC, mounts to a double-gang Decora-style plate, and is compatible with SL-2000, SM-501 and RT-3000 series detectors. It includes a lever-operated quick-connect four-position terminal block and a port for an optional strobe assembly.

  • Tri-color pilot, trouble and alarm LEDs with integrated enhanced sounder (78 dB @ 10') and horn current specification
  • Key-operated test and reset with lever-operated no-tools four-position terminal block and wiring terminations for pigtails
  • Mounts to standard double-gang Decora plate; compatible with SL-2000, SM-501 and RT-3000 series duct smoke detectors

Product Highlights

Remote key test/reset accessory for duct smoke detectors; 24 VDC operation; integrated sounder and visual indicators; double-gang Decora mounting; optional strobe port.

Product Information

Standard Information

  • Brand: AIR PRODUCTS AND CONTROLS
  • Manufacturer Part Number: MSR-50RKA/W
  • Country of Origin: USA
Technical Specifications
Brand
Air Products and Controls
MPN
MSR-50RKA/W
Product Type
Control with sounder assembly / Remote alarm accessory
Input Voltage
24 VDC
Current Consumption
0.092 A
Supply Current (LEDs)
15 mA @ 24 VDC
Horn Current
20 mA @ 24 VDC
Alarm Sound Level
78 dB @ 10' (3.0 m)
Wire Gauge
14-22 AWG
Wiring Terminations - LEDs/Horn
6" (15.2 cm) / 24 AWG pigtails
Wiring Terminations - Switches
6" (15.2 cm) / 22 AWG pigtails
Compatible Detectors
SL-2000 series, SM-501 series, RT-3000 series
Dimensions (overall)
5.50" L x 3.38" W x 2.69" H
Dimensions (double-gang plate)
4.5" W x 4.5" H (11.4 x 11.4 cm)
Weight
0.88 lb
Operating Temperature
0 to 49 �C
Operating Element
Key switch (remote test and reset)
Indicators
Tri-color visual indication for pilot, trouble and alarm; alarm indicator red
Terminal Type
Lever-operated quick-connect four-position terminal block (no-tools)
Strobe Port
Port for optional strobe assembly (strobe and audible buzzer intended for private mode only; not ADA compliant for public life-safety notification)
Housing / Plate Style
Decora-style double-gang face plate
Standards and Approvals
UL File #S7425; UL 268; CSFM 7300-1004:107; MEA 73-92-E, Vol. 25
Country of Origin
USA
Proposition 65
Yes
