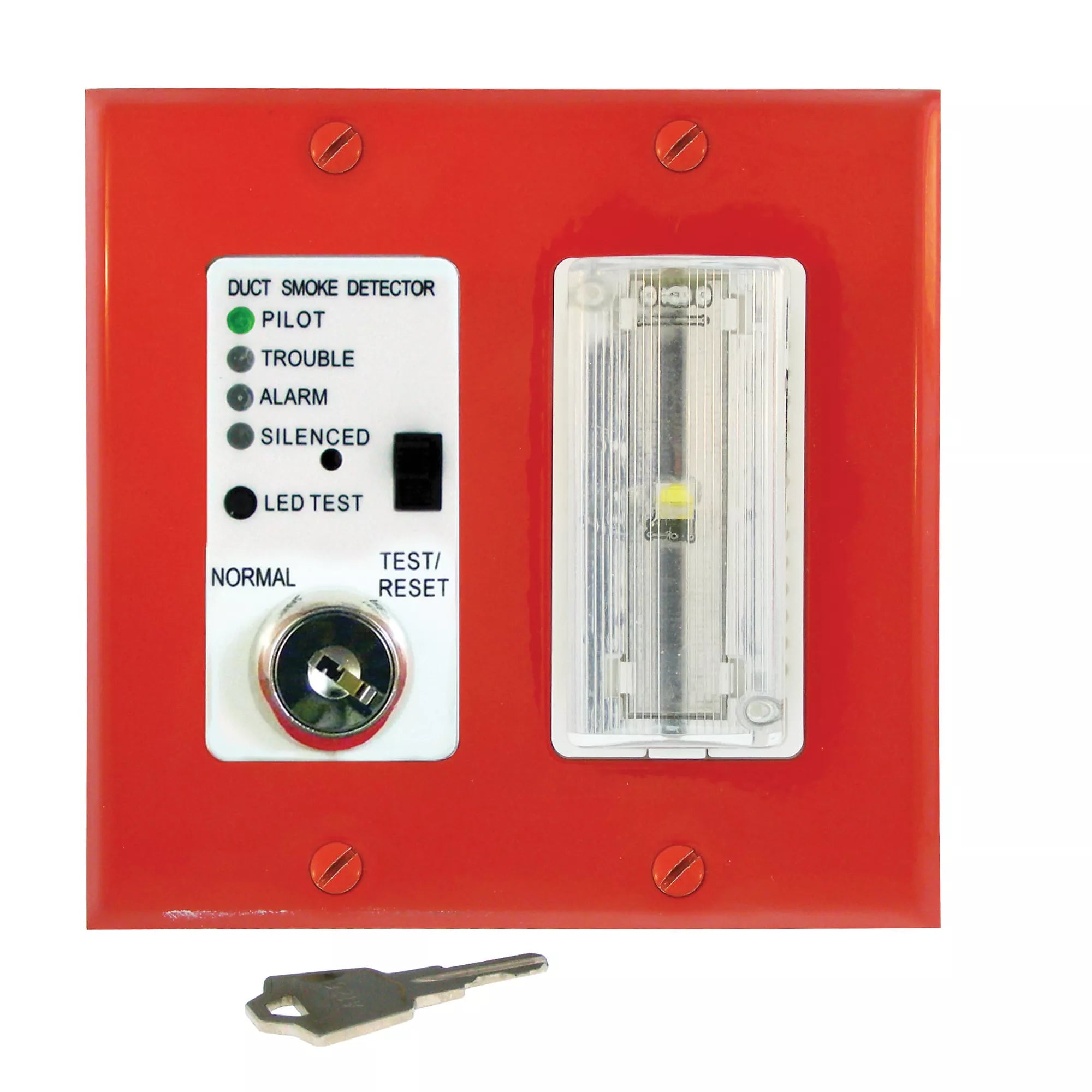

Air Products And Controls MSR-100RAV/R/C Sounder, Clear Strobe Assembly with Red Double Gang Cover Plate

Product Description

The AIR PRODUCTS AND CONTROLS MSR-100RAV/R/C remote accessory is designed for use with Air Products and Controls duct smoke detectors. It is placed in a double gang Decora style red plate with enhanced sounder and strobe with a clear strobe lens. The device features LED visual indication and key-operated test and reset functions.

• The remote accessory is placed in a red Decora style double gang remote indicator/control with the addition of an enhanced sounder/strobe assembly
• LED visual indication of detector Pilot, Trouble and Alarm Functions
• Selectable audible indication of Alarm, Trouble or both

Product Highlights

The MSR-100RAV/R/C provides complete functionality with duct smoke detectors, featuring LED indicators, sounder/strobe assembly, and key-operated functions.

Product Information

Standard Information

• Brand: AIR PRODUCTS AND CONTROLS
• Manufacturer Part Number: MSR-100RAV/R/C
• Country of Origin: USA

Technical Specifications

• UOM: EA
• Amps: 0.157
• Type: Green Pilot LED, Yellow Trouble LED, Red Alarm LED, Buzzer, Key, Silence, LED Test, Red Plate, Horn, Strobe, Clear Strobe Lens
• Brand: Air Products and Controls
• Width: 5
• Height: 2
• Length: 5
• Prop 65: Yes
• Voltage: 24 VDC
• Wire Gauge: 14-22 AWG
• For Use With: SL-2000 series, SM-501 Series , RT-3000 Series
• Operating Element: Key switch
• Status Indicator – Alarm: Red
• Status Indicator – Fault: Yellow
• Operating Temperature (Min): 0°C
• Operating Temperature (Max): 49°C
• Operating Temperature: 0 to 49°C
• Standards: UL 268
• Key Type: Remote Test station test & reset key
• Housing Type: Face plate
