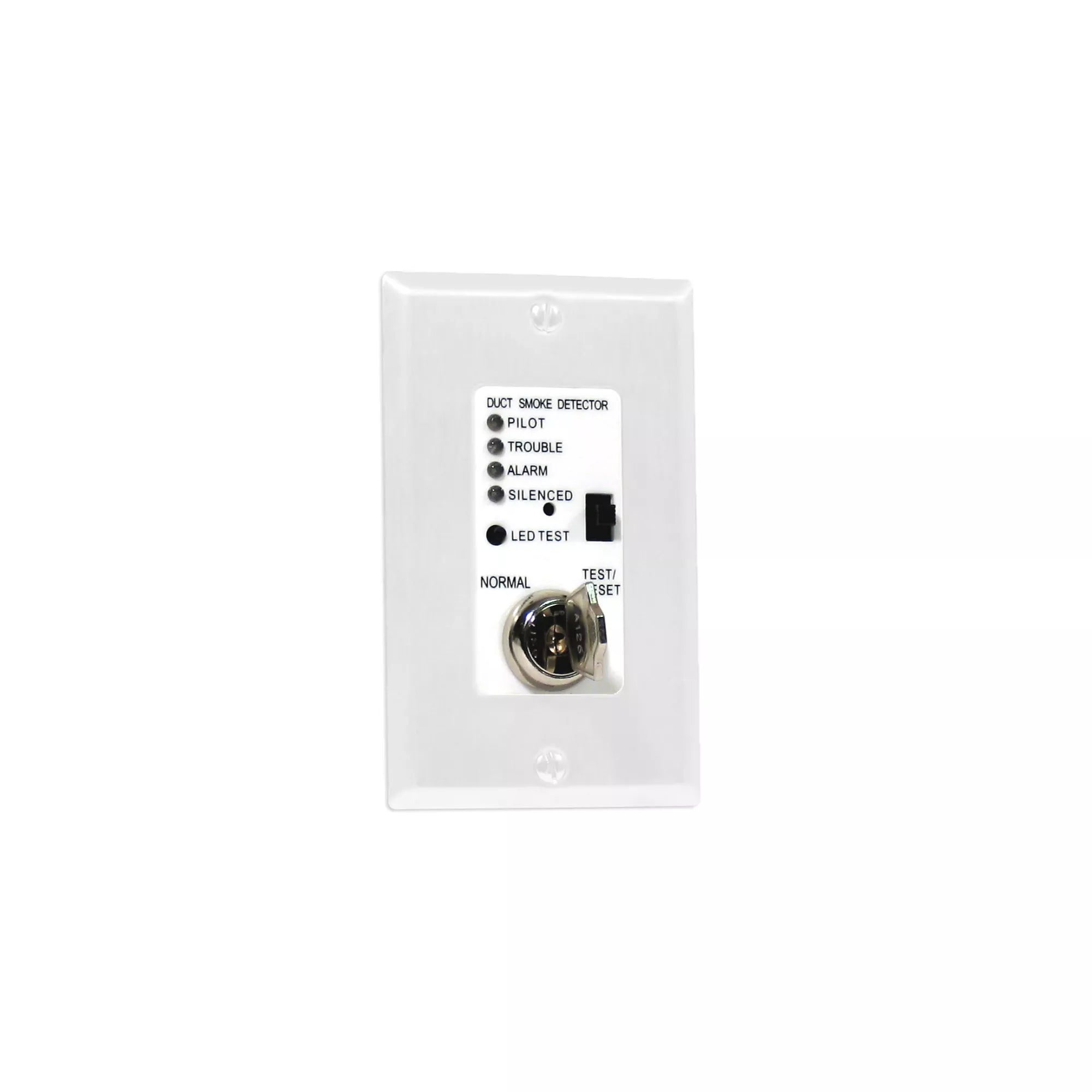

Air Products And Controls MSR-100R/W Indicator/Control Assembly

Product Description

The AIR PRODUCTS AND CONTROLS MSR-100R/W remote accessory is designed for use with Air Products and Controls duct smoke detectors. It provides visual indication of detector Pilot, Trouble, and Alarm functions. It is compatible with standard architectural (decora) style cover plates.

• LED visual indication of detector Pilot, Trouble and Alarm Functions
• Selectable audible indication of Alarm, Trouble or both
• Buzzer Silence function, with silenced indication and “ringback” following condition correction

Product Highlights

The MSR-100R/W features lamp/buzzer test function and key-operated detector test and reset functions. It has a lever-operated “No-Tools” terminal block.

Product Information

Standard Information

• Brand: AIR PRODUCTS AND CONTROLS
• Manufacturer Part Number: MSR-100R/W
• Country of Origin: USA

Technical Specifications

• UOM: EA
• Amps: 0.062
• Type: Green Pilot LED, Yellow Trouble LED, Red Alarm LED, Buzzer, Key, Silence, LED Test, White Plate
• Brand: Air Products and Controls
• Width: 3.38
• Height: 2.688
• Length: 5.5
• Prop 65: Yes
• Voltage: 24 VDC
• Wire Gauge: 14-22 AWG
• For Use With: SL-2000 series, SM-501 Series , RT-3000 Series
• Operating Element: Key switch
• Status Indicator – Alarm: Red
• Status Indicator – Fault: Yellow
• Operating Temperature (Min): 0°C
• Operating Temperature (Max): 49°C
• Operating Temperature: 0 to 49°C
• Standards: UL 268
• Key Type: Remote Test station test & reset key
• Housing Type: Face plate
• Series/Model: MSR-100
• Item: Remote Indicator/Control Assembly
• Used On: Duct Smoke Detector
• Approval: UL (Canada and US), CSFM 7300-1004, MEA 73-92-E
• Sound Level: 87 Decibel at 10 Foot (High), 83 Decibel at 10 Foot (Low)
• Wire Size: 14 to 28 AWG (Solid/Stranded)
