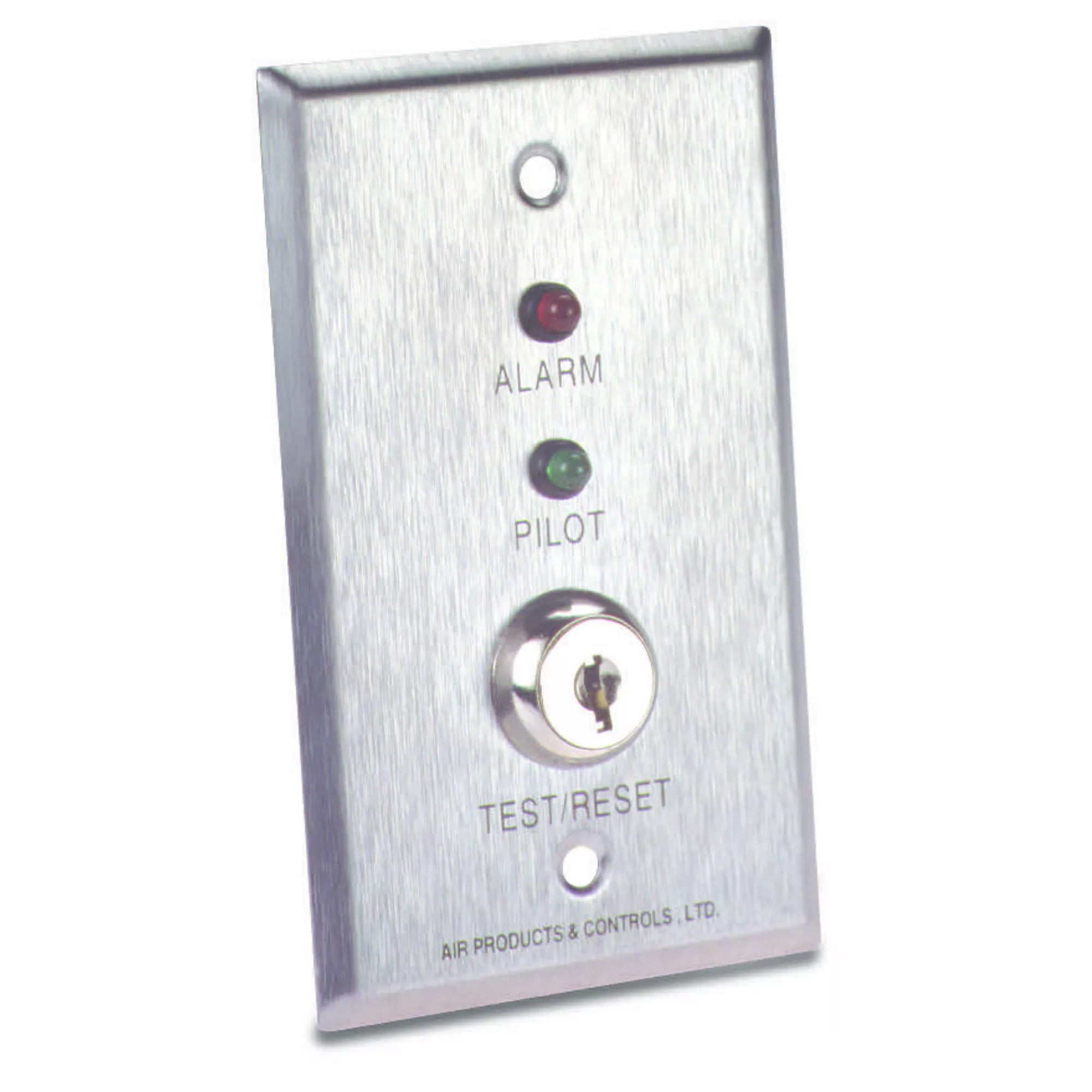

Air Products and Controls MS-KA/P/R Remote with Red Alarm Green Pilot Key Test Reset 24 VDC

Product Description

The Air Products and Controls model MS-KA/P/R is specifically engineered for integration with duct smoke detectors, offering both audible and visual notifications, along with key test and reset functionalities. This unit is designed for robust operation with a casing of brushed stainless steel, tailored to fit standard single or double gang electrical backboxes.

• Compatible with SL-2000 series, SM-501 Series, and RT-3000 Series duct smoke detectors.
• Features a green pilot LED and a red alarm LED for clear, immediate signaling.
• Operates effectively with a power requirement of 24 VDC and minimal current draw.

Specifications

• Brand: Air Products and Controls
• MPN: MS-KA/P/R
• Type: Key, Green Pilot LED, Red Alarm LED
• Voltage: 24 VDC
• Amps: 0.015
• Wire Gauge: 14-22 AWG
• Width: 3.38 inches
• Height: 2.688 inches
• Length: 5.5 inches
• Weight: 0.34 lbs
• Unit of Measure: Each
• Prop 65: Yes
• Dimensions (Package): 5.5 x 3.38 x 2.69 inches
• Weight (Package): 0.34 lbs
• Cubic Measurement: 0.0289
• Dimensional Weight: 1
