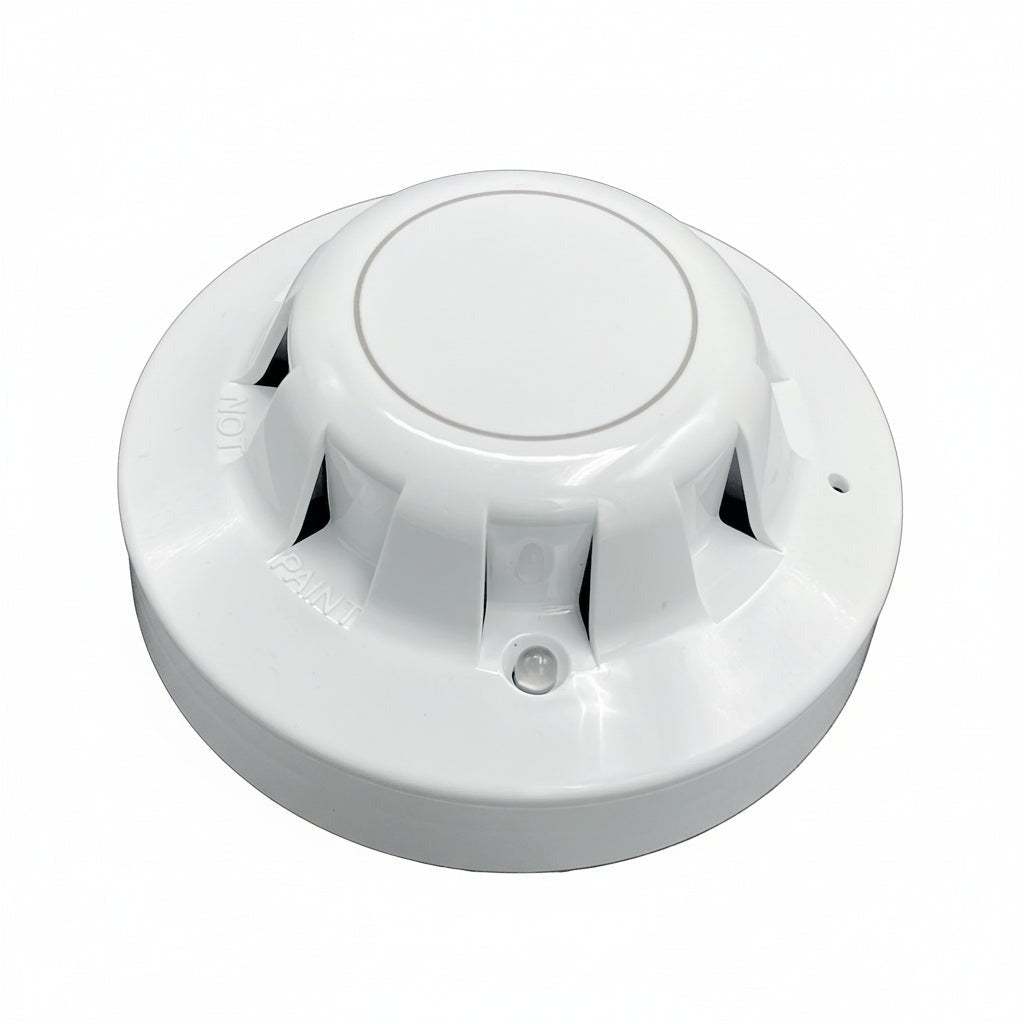

AIR PRODUCTS AND CONTROLS Air Products And Controls 55000-335DCT Photoelectric Smoke Detector Head Universal Voltage (Replacement 55000-328APO)
AIR PRODUCTS AND CONTROLS Air Products And Controls 55000-335DCT Photoelectric Smoke Detector Head Universal Voltage (Replacement 55000-328APO)

Air Products And Controls 55000-335DCT Photoelectric Smoke Detector Head Universal Voltage (Replacement 55000-328APO)

AIR PRODUCTS AND CONTROLS
Brand: AIR PRODUCTS AND CONTROLS
SKU: 55000-335DCT
Availability: In Stock

Ships same day if ordered by 12 pm
$86.69
$86.69
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Air Products and Controls 55000-335DCT is a photoelectric replacement smoke detector head for SM-501 series duct smoke detectors. It supports 24 VAC, 24 VDC, 115 VAC and 230 VAC operation, provides dust filtering and includes a standard exhaust tube for HVAC duct sampling. The head is rated for duct widths from 6 in. to 10 ft. and air velocities of 500 to 4000 fpm, and is compatible with building automation and fire alarm systems.

  • Supply voltage: 24 VAC, 24 VDC, 115 VAC, 230 VAC; frequency 50/60 Hz; standby and alarm currents specified per voltage
  • Designed for duct use: duct width 6 in. (15 cm) to 10.0 ft. (3.05 m); air velocity 500–4000 fpm (2.5–20.3 mps); includes dust filtering and standard exhaust tube
  • Integration features: two alarm relay contacts (2-SPDT, 10A @115 VAC resistive), one trouble contact (1-SPDT, 10A @115 VAC resistive), interconnectable up to 30 detectors

Product Highlights

Photoelectric duct replacement head for SM-501 series with universal voltage support, dust filtering, specified duct/air velocity range, and relay contacts for fire system integration.

Product Information

Standard Information

  • Brand: AIR PRODUCTS AND CONTROLS
  • Manufacturer Part Number: 55000-335DCT
Technical Specifications
Brand
Air Products and Controls
MPN
55000-335DCT
Detector Type
Photoelectric
Intended Series
SM-501 series
Replaces
55000-328APO
Input Voltage
24 VAC, 24 VDC, 115 VAC, 230 VAC
Frequency
50/60 Hz
Standby Current (24 VAC)
35 mA
Alarm Current (24 VAC)
74 mA
Standby Current (24 VDC)
15 mA
Alarm Current (24 VDC)
56 mA
Standby Current (115 VAC)
25 mA
Alarm Current (115 VAC)
32 mA
Standby Current (230 VAC)
12 mA
Alarm Current (230 VAC)
16 mA
Relay Contacts (Alarm)
2-SPDT, 10A, 115 VAC resistive
Trouble Contact
1-SPDT, 10A, 115 VAC resistive
Air Velocity
500-4000 fpm (2.5-20.3 mps)
Duct Width Range
6 in. (15 cm) to 10.0 ft. (3.05 m)
Wiring Terminations
Solid or stranded, 12 to 22 AWG terminals
Operating Temperature
32 to 158 F (0 to 70 C) for SM-501-N
Operating Humidity
10% to 85% RH non-condensing
Enclosure Rating
NEMA 1, 18-gauge steel back box with clear plastic cover (94V-0), gray paint
Dimensions
9.13 H x 7.25 W x 2.25 D inches (23.19 x 18.42 x 5.72 cm)
Weight
3.2 lb (1.45 kg)
Approvals
UL File #S2829; CSFM 3240-1004:108; MEA 73-92-E, Vol. 26
Includes
Standard length exhaust tube; dust filtering in detector head
Interconnect Capability
Interconnectable up to 30 detectors for common functions
Indicator
Pulsing LED located within housing (series reference)
