Product Description

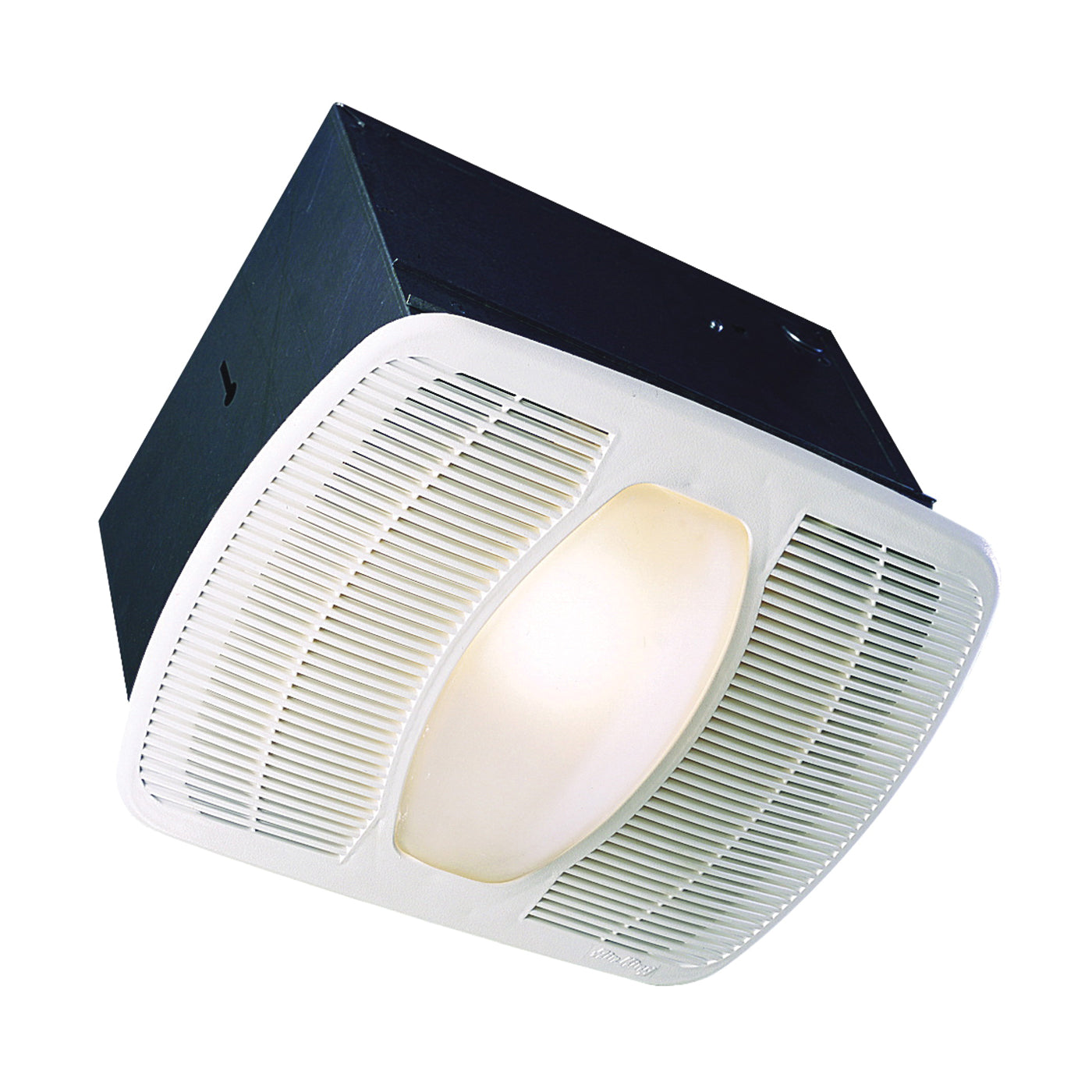

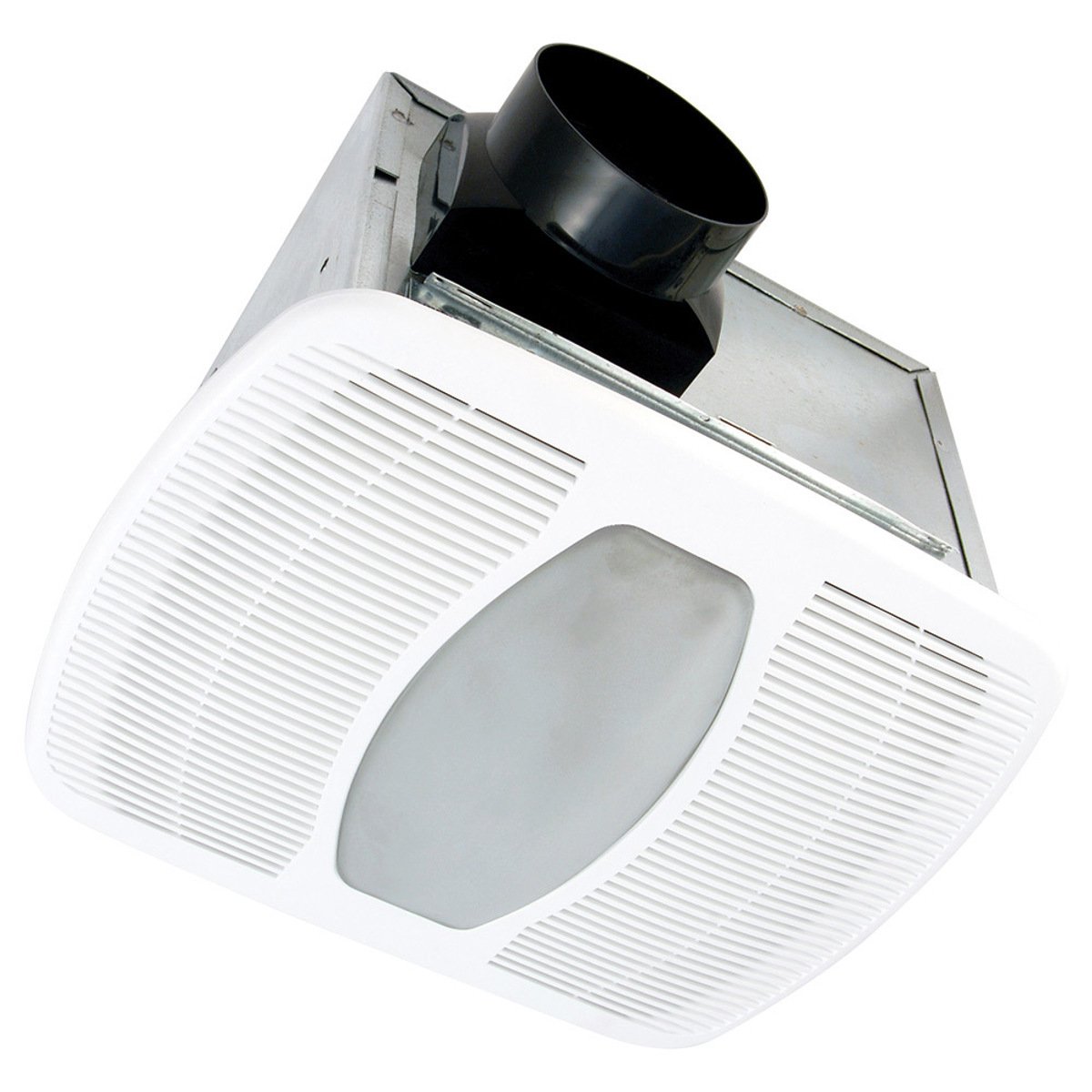

The AIR KING LEDAK80 exhaust fan is designed to bring in fresh air, remove humidity, and maintain a set temperature. This bathroom fan features an LED light, hanging brackets, and a back draft damper. With an airflow of 80 CFM and a 4-inch duct connection, it provides a powerful, energy-efficient ventilation solution.
- Energy Star Certified
- Features a GU24 LED lamp
- HVI Certified
Product Highlights
This exhaust fan is an energy-efficient solution for families and home builders alike, offering simple installation and effective ventilation.
Product Information
Standard Information
-
Brand: AIR KING
-
Manufacturer Part Number: LEDAK80
-
Country of Origin: United States
Technical Specifications
-
Air Flow (CFM): 80
-
RPM: 984 RPM
-
Voltage: 115/120 Volts
-
UL Listed: Yes
-
Product Width: 13.75 Inches
-
Type: Bathroom Fan
-
Product Height: 7.875 Inches
-
Product Length: 11 Inches
-
Frequency: 60 Hz
-
Duct Connection: 4 Inches
-
Maximum Air Flow: 80 CFM
-
Minimum Air Flow: 70 CFM
-
Mount Type: Ceiling
-
Maximum Sound Level: 1 Sone
-
Energy Star Listed: Yes
-
Power Consumption: 27.6 Watts
-
Includes Light: Yes
-
Housing Material: Metal
-
Style: Modern
-
Wattage: 6 watts
-
Room Type: Bathroom
-
Model Name: LEDAK80
-
Power Source: Ac
-
Blade Material: Plastic
-
Air Flow Capacity: 70 Cubic Feet Per Minute
-
Specification Met: Energy star certified
-
Batteries Required?: No
-
Electric fan design: Exhaust Fan
-
Recommended Uses For Product: Exhausting
-
Mounting: Hanger Bars
-
Speed: 80
-
CFM @ .1 SP: 80
-
CFM @ .25 SP (High-speed): 67
-
Sones @ .1 SP: 1.2
-
Sound Level: 1 sones
-
Maximum Fan Watts: 27.6
-
Effective Ventilation Area: 80 to 100 sq. ft.
-
Lighting: 8.5 watt 3000K LED, 800 Lumens (94 lumens/watt)
-
ASHRAE 62.2 Ventilation: Local
-
ENERGY STAR® certified: YES
-
Duct Size: 4″ round
-
Collar / Damper: Plastic
-
Housing: Metal
-
Special Feature: LED Light, Night Light
-
Mounting Type: Wall Mount
-
Controller Type: Button Control
-
Noise Level: 1 Sones
-
Number of Blades: 30
-
Switch Type: Push Button
-
Indoor Outdoor Usage: Indoor
-
Control Method: Touch
-
Light Type: LED
-
Standby Power Shutoff: High Efficiency
-
Is Product Cordless: No
-
Number of Power Levels: 1
-
Material: Alloy Steel, Plastic
-
California Prop 65 Warning: No
-
CFM: 70,80
-
Fan Speeds: 1
-
Number of Bulbs: 1
-
Current Rating: 0.6 A
-
Grill Shape: Rectangular
-
Installation Type: Ceiling
-
Speed Rating: 984 rpm
-
Wattage Rating: 27.6 W
-
Lamp Type: LED
-
Air Flow Rate: 80 cfm
-
LED Wattage: 8.5 Watts
-
LED Color Temperature: 3000K Warm White
-
LED Lumens: 800 Lumens
-
LED Efficiency (Lumens per Watt): 94 LPW
-
Dimmable: Yes
-
LED Cover: Moonstone Glass Lens
-
Grill Dimensions: 13-3/4" D x 11" W
-

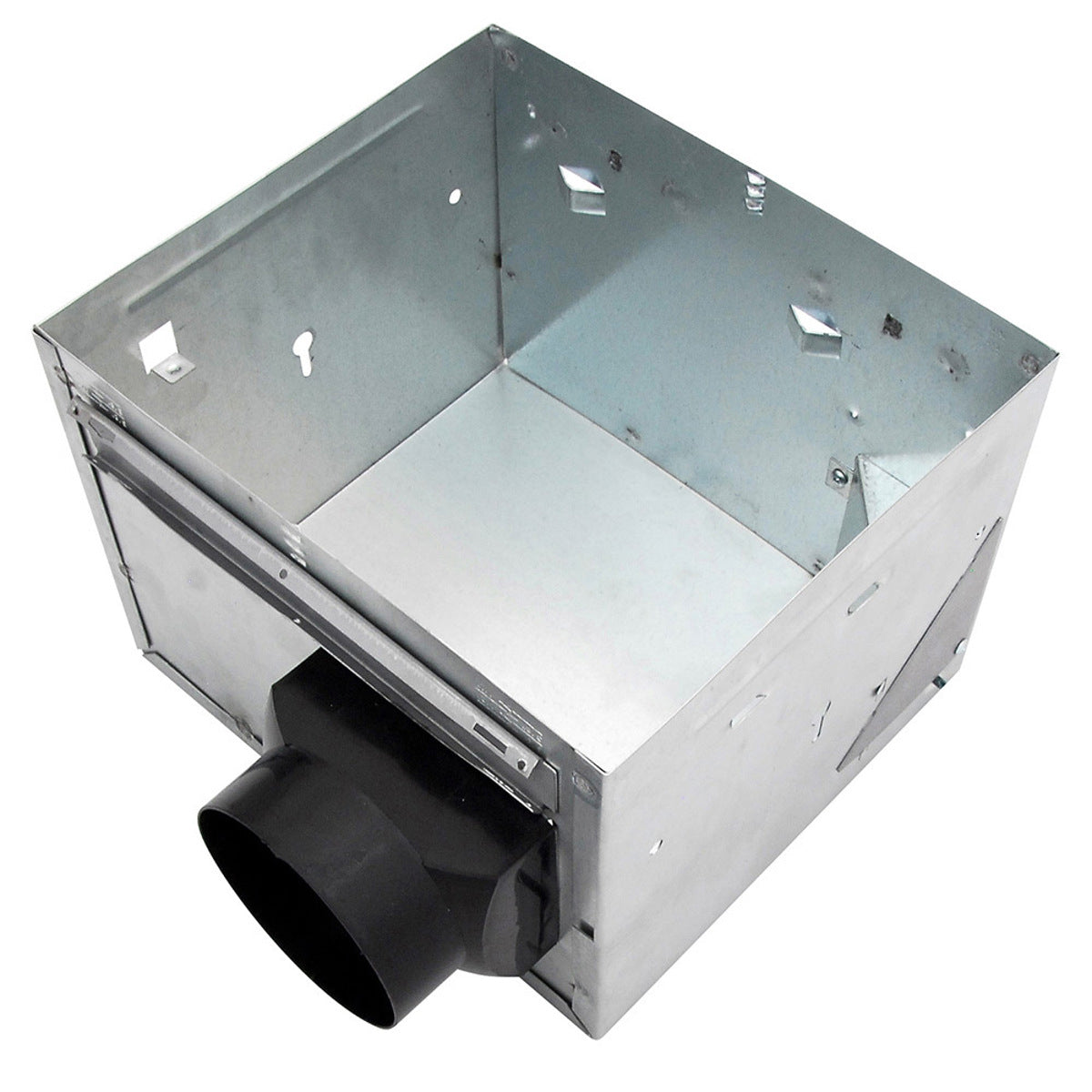

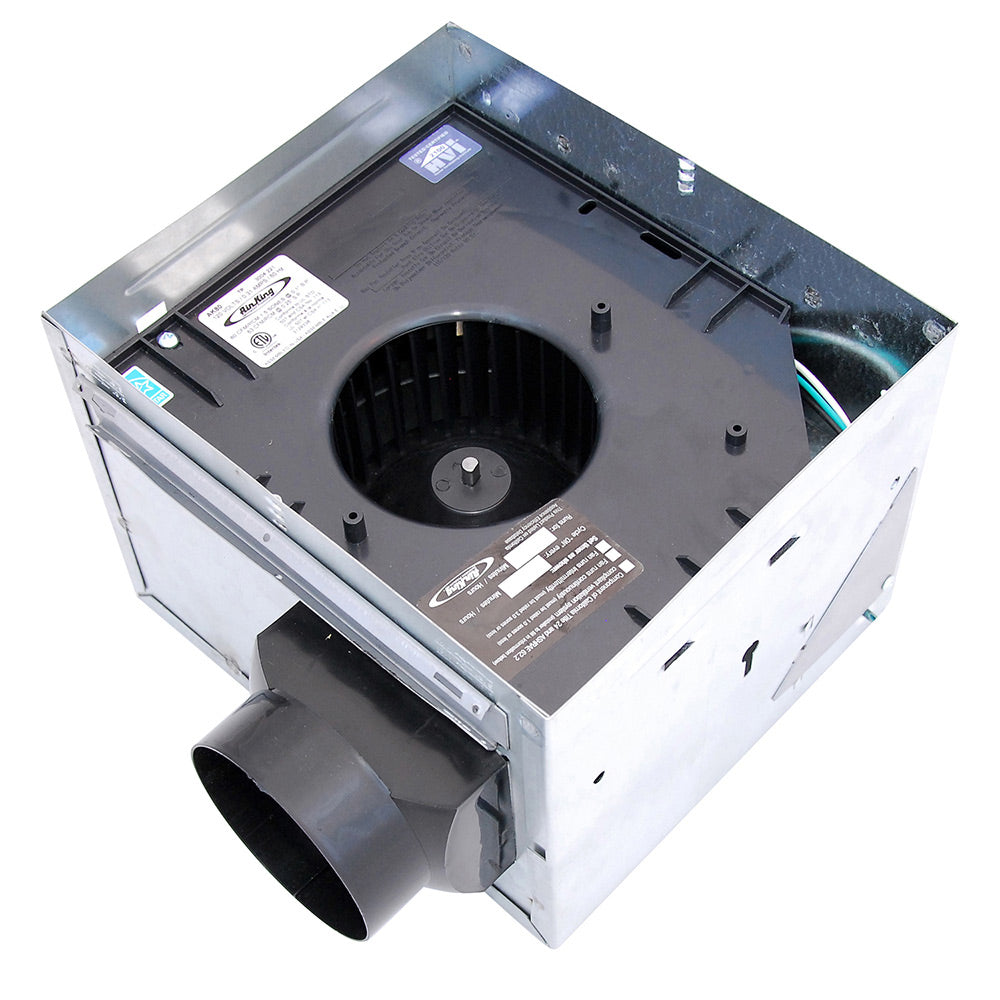

Fan Housing Dimension: 10-7/8" D x 9-3/8" W x 7-7/8" H
-
Fan Certifications: Energy Star, Title 24 Compliant
-
LED Certifications: JA8 Compliant, Title 24 compliant
