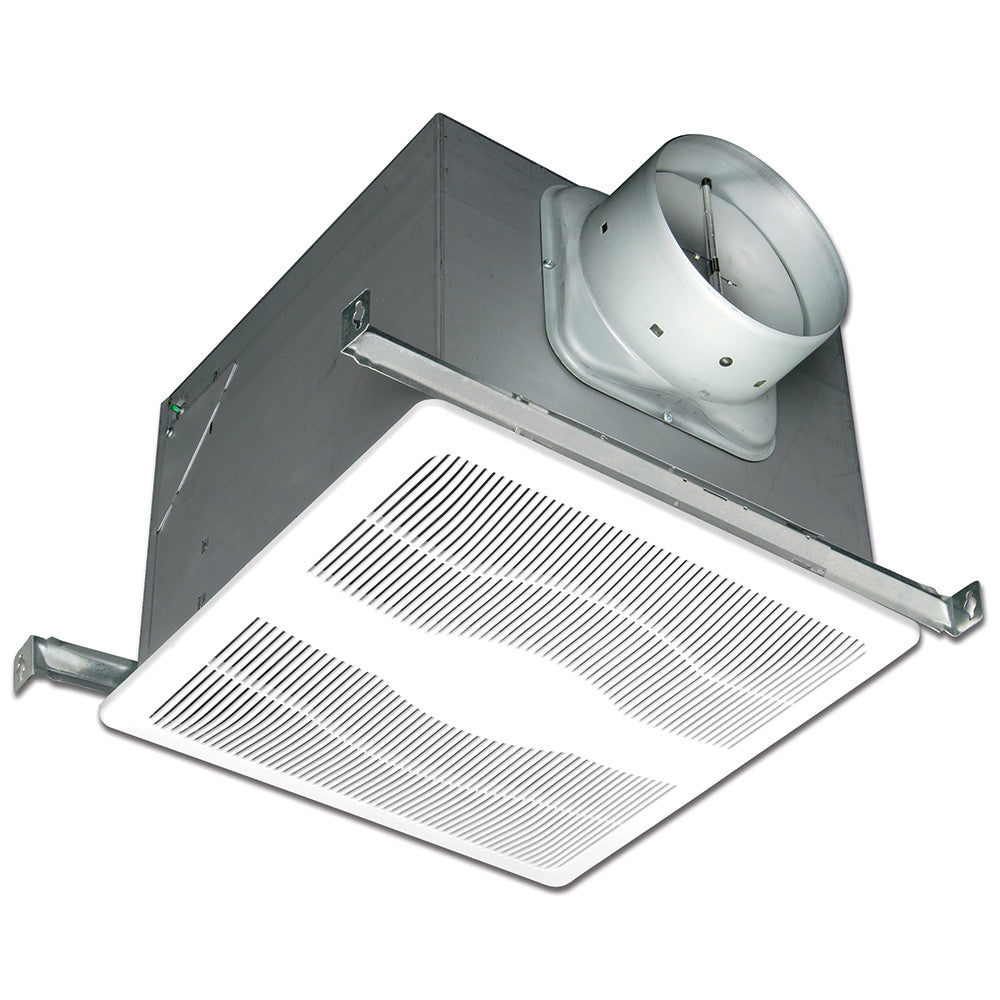

Air King EVD 30-130 CFM 6 inches Variable Speed Bathroom Fan Ceiling Mount

Product Description

The Air King EVD is a variable speed bathroom exhaust fan with airflow ranging from 30 to 130 CFM. It features adjustable hanging brackets for simple installation and a 6-inch plastic duct collar with a built-in damper to protect against backdrafts. Operates at less than 0.3 sones, making it a quiet fan suitable for areas up to 160 square feet.

• Quiet, variable-speed operation with 12 capacity settings.
• Features an optional BOOST setting for homes with high static pressure duct systems.
• Includes a non-metallic backdraft damper to eliminate back drafts.

Product Highlights

Provides effective ventilation while maintaining minimal noise. Easy to install with included adjustable mounting brackets. Ideal for bathroom and home ventilation.

Product Information

Standard Information

• Brand: AIR KING
• Manufacturer Part Number: EVD
• Country of Origin: United States

Technical Specifications

• UPC: 083162941619
• Voltage: 120 Volts
• UL Listed: Yes
• Product Width: 14 1/4 Inches
• Type: Bathroom Fan
• ETL Listed: Yes
• Product Height: 9 7/8 Inches
• Product Length: 14 1/4 Inches
• Frequency: 60 Hz
• Duct Connection: 6 Inches
• Current Draw: 0.3 Amps
• Maximum Air Flow: 150 CFM
• Minimum Air Flow: 30 CFM
• Warranty: 5 Year Limited
• Mount Type: Ceiling
• Maximum Sound Level: 0.3 Sones
• Country of Origin: United States
• Power Consumption: 37 Watts
• Includes Light: No
• Product Category: Fans
• Low Speed CFM Settings @ .1 SP: 30, 40, 50, 60, 70, 90, 100, 120
• High-speed CFM Settings @ .1 SP: 80, 110, 130 & Boost (150)
• Sones @ .1 SP: <0.3 (Boost Speed: 0.6)
• Sound Level: Very Quiet
• Maximum Fan Watts: 37.0
• ASHRAE 62.2 Ventilation: Whole House/ Local
• ENERGY STAR® certified: YES
• Can be used to Comply with California Title 24 requirements: YES
• CALGreen: Rooms other than bathrooms
• Duct Size: 6 in
• Collar / Damper: Metal
• Mounting: Hanger Bars
• Housing: Metal
• Boost Speed (CFM/Sones) @ .1 SP: 150/0.6
• Maximum Power Wattage: 37.0 Watts
• Amps: 0.3 Amps
• Grill Dimensions: 14-1/4" D x 14-1/4" W
• Fan Housing Dimension: 12-7/8" D x 12-3/4" W x 9-7/8" H
• Certifications: Energy Star, Title 24 Compliant
• Amperage Rating: 0.3 A
• Domestic/Import: Domestic
• Duct Diameter: 6 in
• Flow Rate: 150 cfm
• Frequency Rating: 60 Hz
• Grille Length: 14-7/16 in
• Grille Material: Polymeric
• Grille Width: 14-7/16 in
• Housing Height: 9-7/8 in
• Housing Length: 12-7/8 in
• Housing Material: Galvanized Steel
• Housing Width: 12-3/4 in
• Humidity Sensing: No
• Motion Sensing: No
• Power Rating: 37 W
• Series: ECO
• Voltage Rating: 115/120 V AC
• Material: 23 ga Steel
• Finish: Galvanized
• Width: 12-7/8 in
• Height: 9-7/8 in
• CFM Rating: 30 to 150 cfm
• Coverage Area: 150 sq-ft
• Noise Rating: 0.2 sones
