Product Description

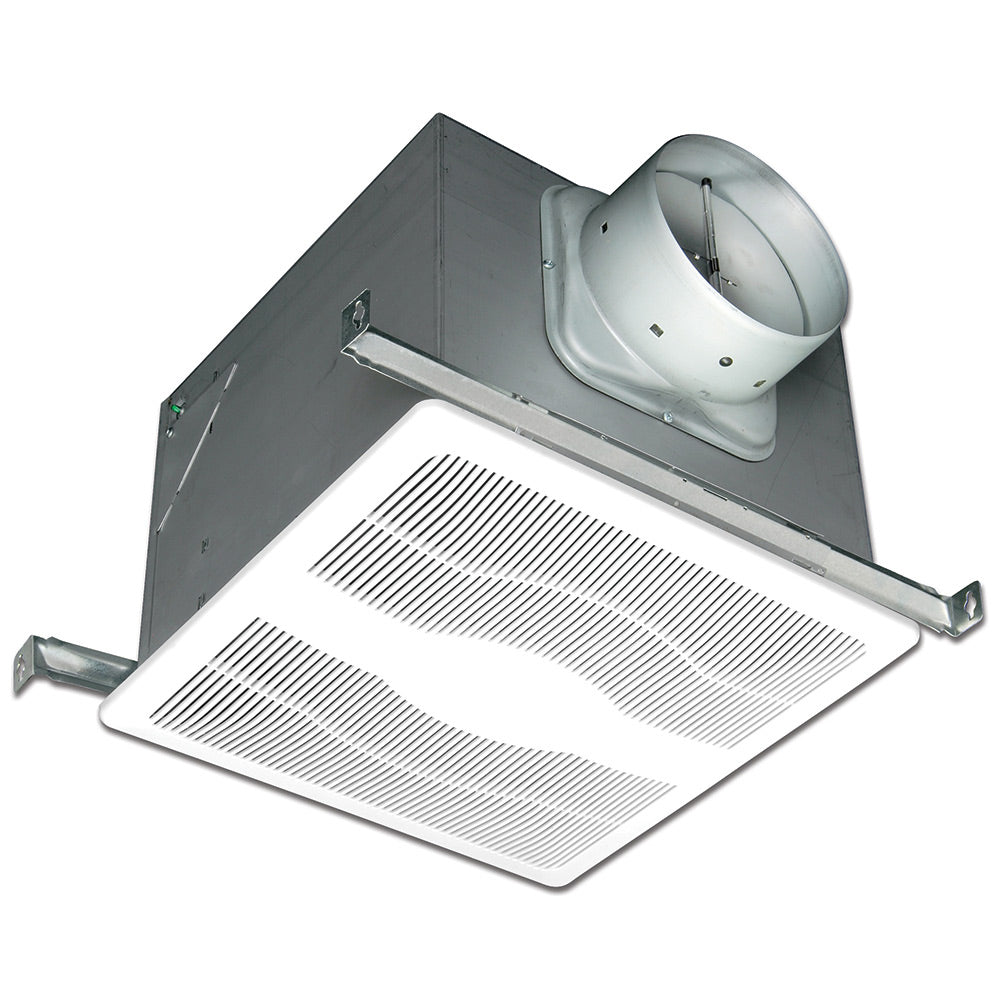

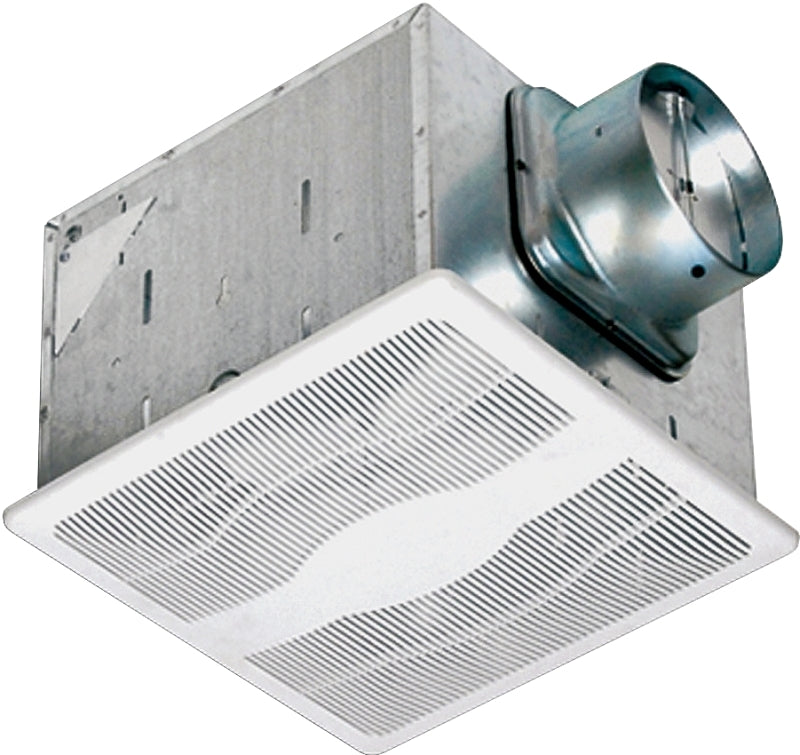

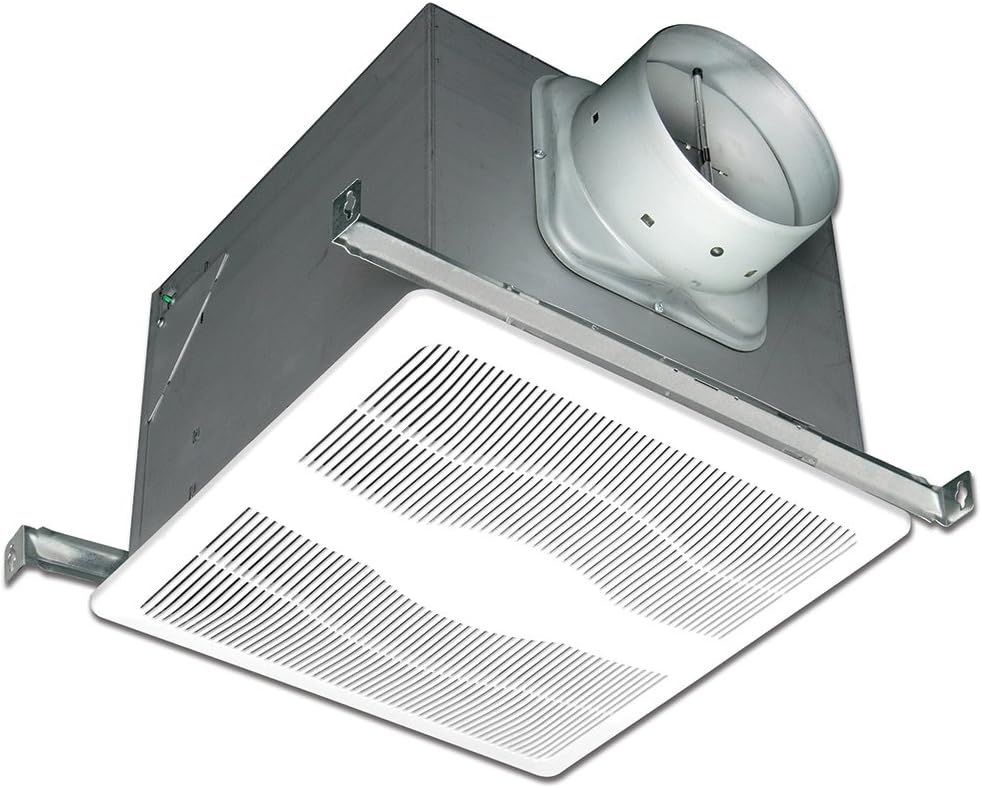

The Air King E130S is a 130 CFM bathroom exhaust fan with a low-profile grille that blends into the ceiling. Featuring a boost setting for optimal airflow in ducts with high static pressure. Simple to install with adjustable hanging brackets, it includes a 6-inch plastic duct collar with a built-in damper. Operates at less than 0.3 sones.
- Quiet operation with an airflow of 130 CFM and a sound level of less than 0.3 sones.
- BOOST setting for homes with high static pressure duct systems.
- Includes a non-metallic backdraft damper to eliminate back drafts.
Product Highlights
Provides effective ventilation while maintaining minimal volume levels. Adjustable mounting brackets allow for quick and easy installation.
Product Information
Standard Information
-
Brand: AIR KING
-
Manufacturer Part Number: E130S
-
Country of Origin: United States
Technical Specifications
-
UPC: 083162941329
-
RPM: 783 RPM
-
Voltage: 120 Volts
-
UL Listed: Yes
-
Product Width: 14 1/4 Inches
-
Type: Bathroom Fan
-
Product Height: 9 7/8 Inches
-
Product Length: 14 1/4 Inches
-
Frequency: 60 Hz
-
Duct Connection: 6 Inches
-
Current Draw: 0.3 Amps
-
Maximum Air Flow: 130 CFM
-
Warranty: 1 Year
-
Mount Type: Ceiling
-
Maximum Sound Level: 0.3 Sones
-
Country of Origin: United States
-
Energy Star Listed: Yes
-
Power Consumption: 32.5 Watts
-
Includes Light: No
-
Product Category: Fans
-
Wattage: 37 watts
-
Room Type: Bathroom
-
Model Name: E130S
-
Power Source: Electric
-
Blade Material: Plastic
-
Specification Met: Energy Star
-
Batteries Included?: No
-
Batteries Required?: No
-
Electric fan design: Exhaust Fan
-
Recommended Uses For Product: Exhausting, Ventilating
-
Size: 130-CFM
-
Number of Items: 1.0
-
Product Type: ELECTRIC_FAN
-
MODEL: E130S: 130 CFM @ <0.3 sones
-
CFM @ .1 SP: 130
-
CFM @ .25 SP (Boost): 113
-
Sones @ .1 SP: <0.3
-
Boost Speed (CFM/Sones) @ .1 SP: 150 / 0.7
-
Sound Level: Very Quiet
-
Effective Ventilation Area: 130 to 160 sq. ft.
-
ASHRAE 62.2 Ventilation: Whole House/ Local
-
Can be used to comply with California Title 24 requirements: YES
-
CALGreen: Rooms other than bathrooms
-
Duct Size: 6″ round
-

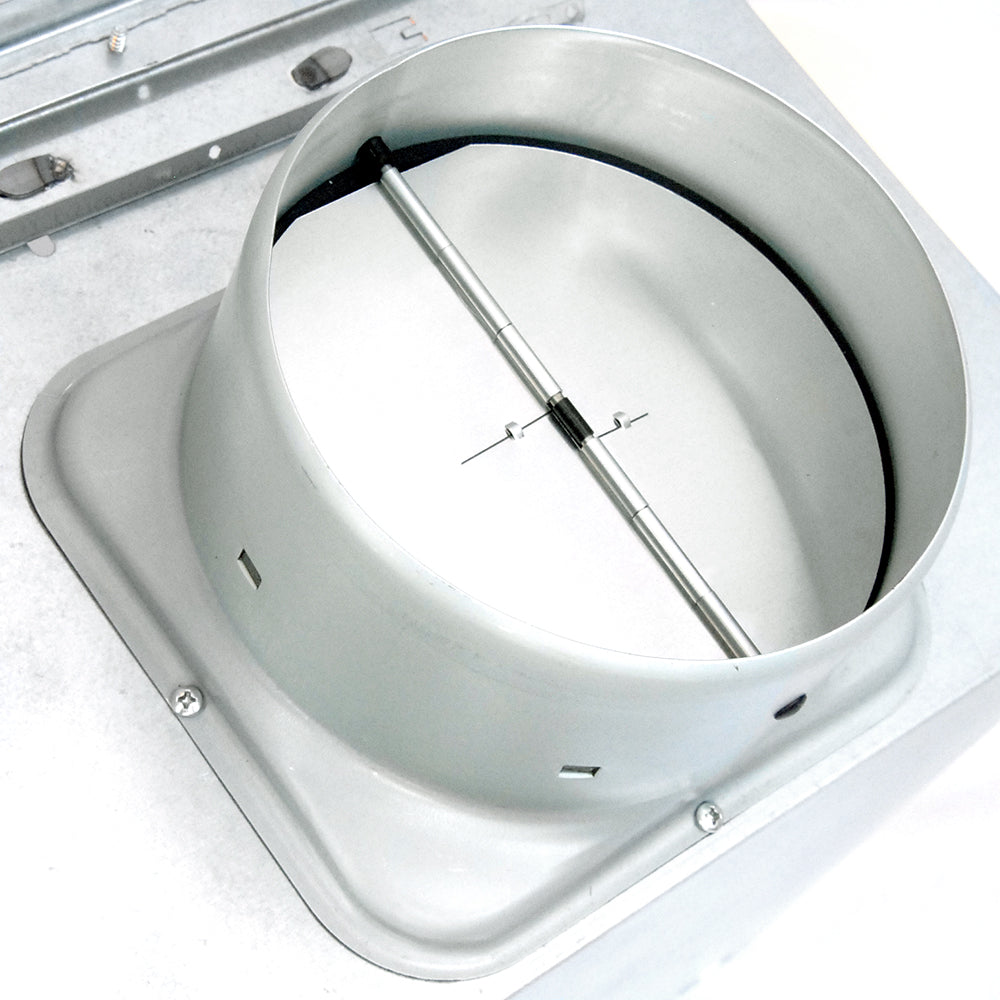

Collar / Damper: Metal
-
Mounting: Hanger Bars
-

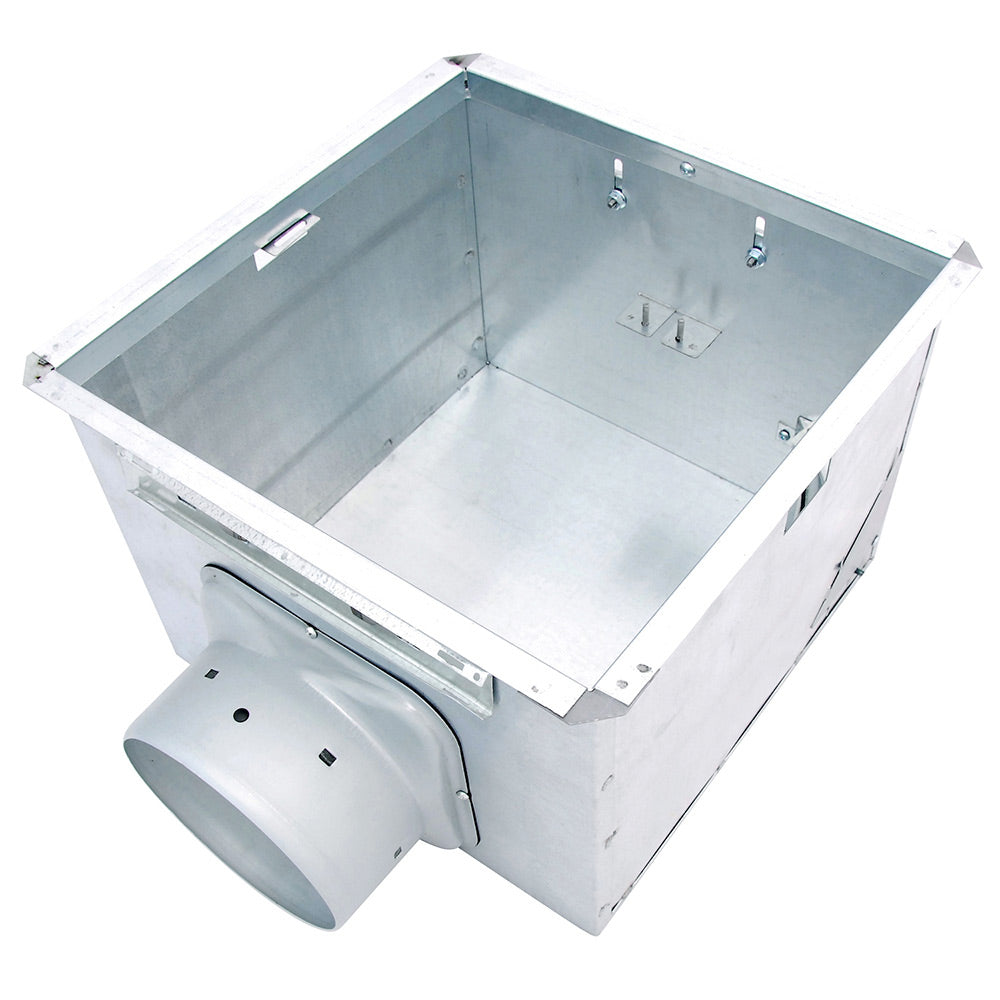

Housing: Metal
-
Voltage Rating: 115/120 V
-
Current Rating: 0.3 A
-
Wattage Rating: 34.9 W
-
Grille Length: 14-1/4 in
-
Grille Width: 14-1/4 in
-
Length: 12-3/4 in
-
Width: 12-7/8 in
-
Height: 9-7/8 in
-
Material: Steel
-
Grille Material: Polymer
-
Max CFM: 130
-
Housing Length: 12.875 in.
-
Housing Width: 12.75 in.
-
Housing Depth: 9.875 in.
-
CFM (High): 130
-
Max Ventilation Area: 150 sq. ft.
-
Sones: 0.3
