Product Description

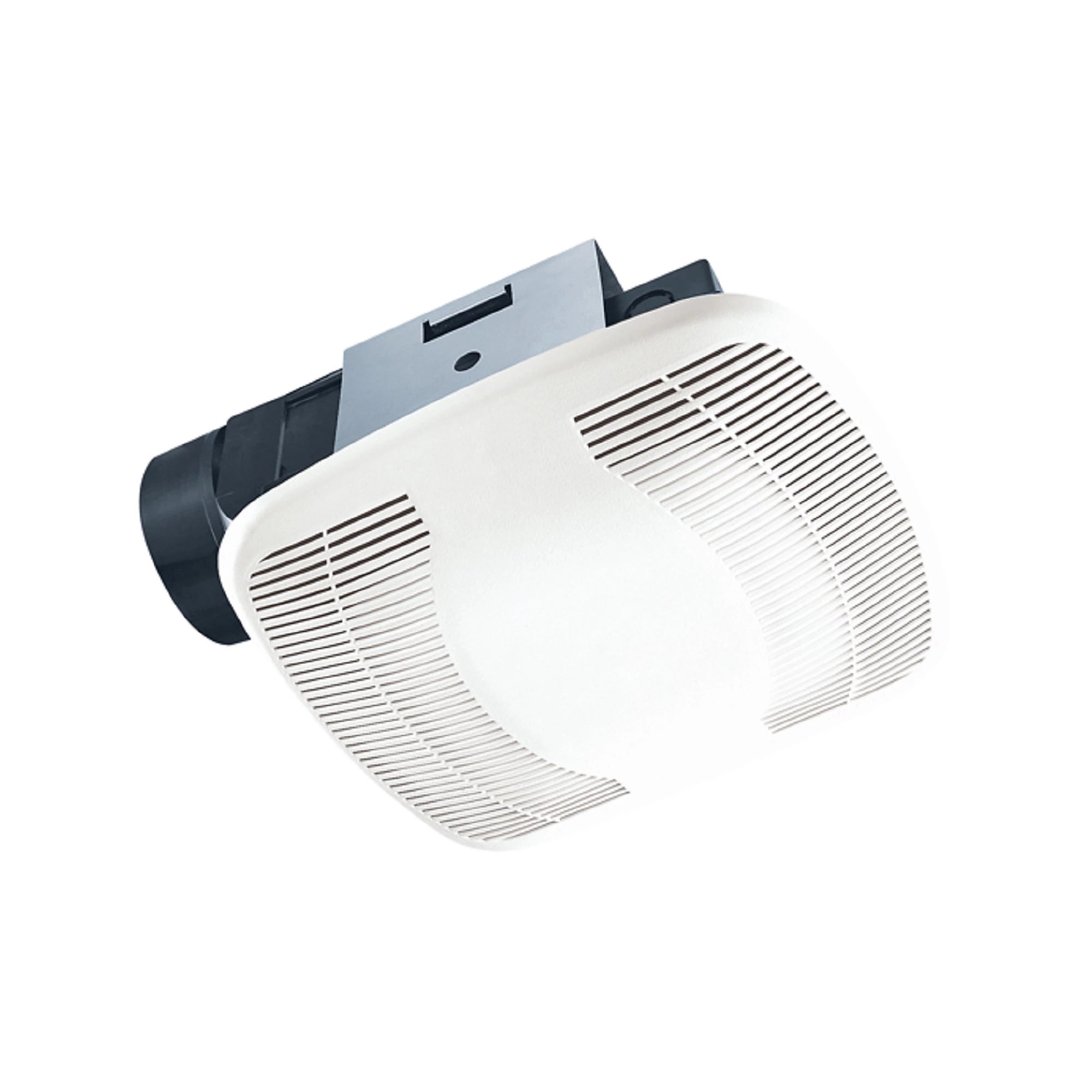

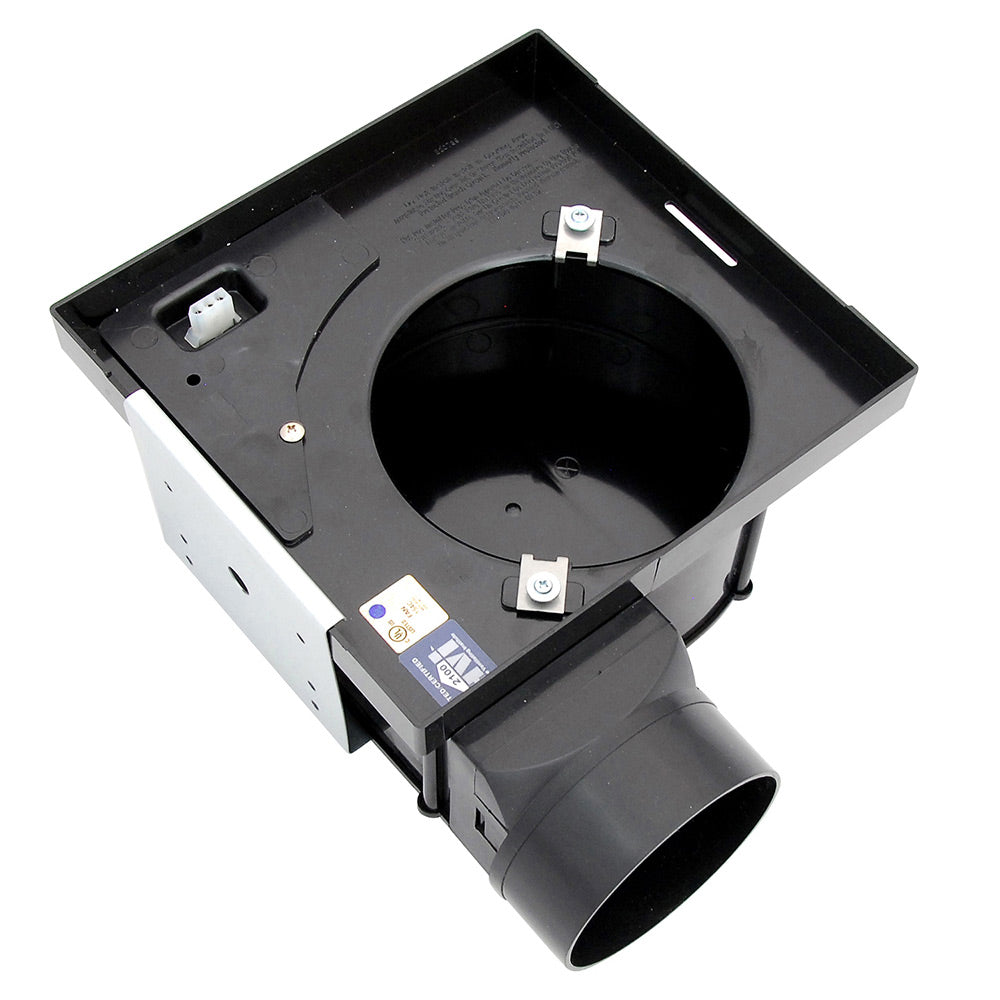

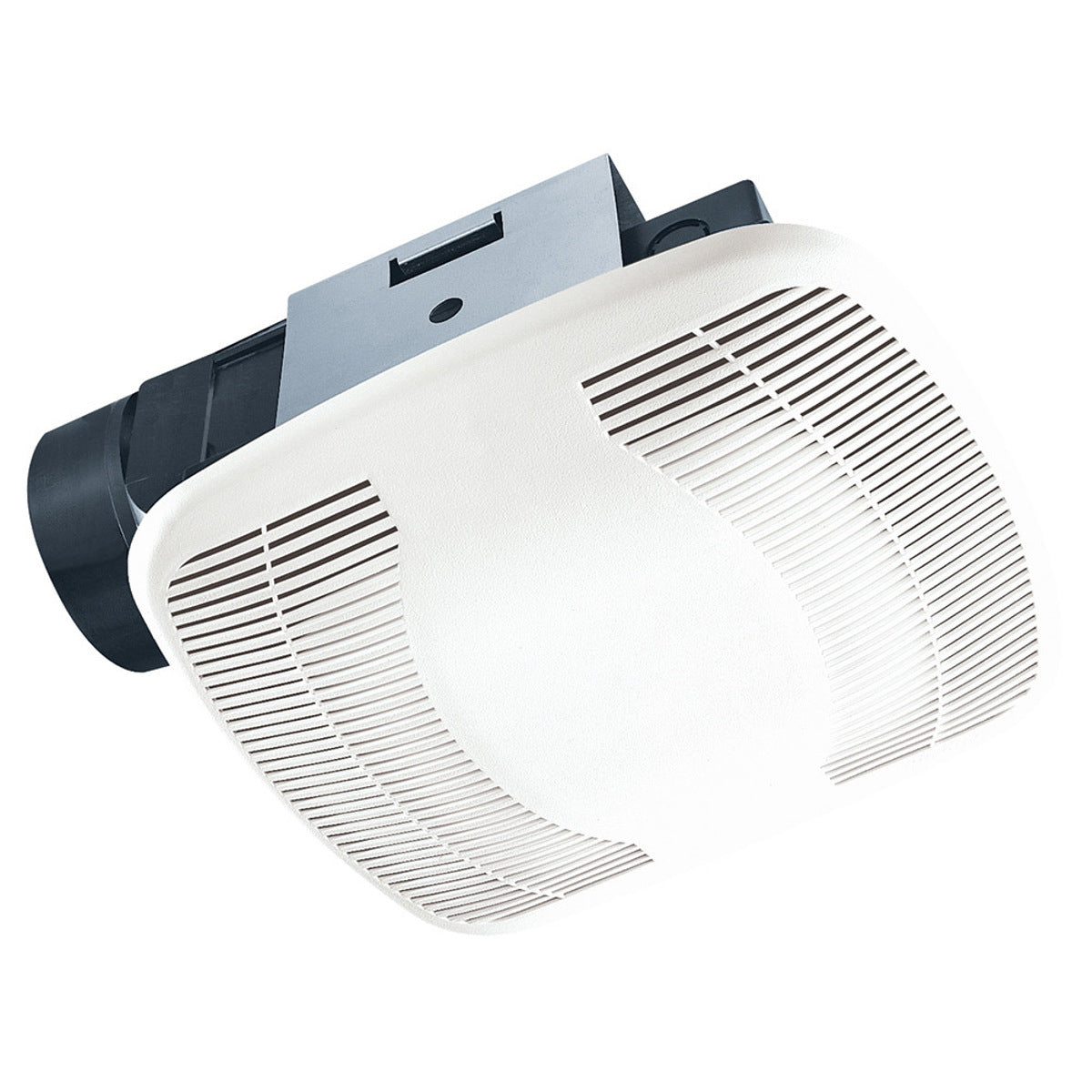

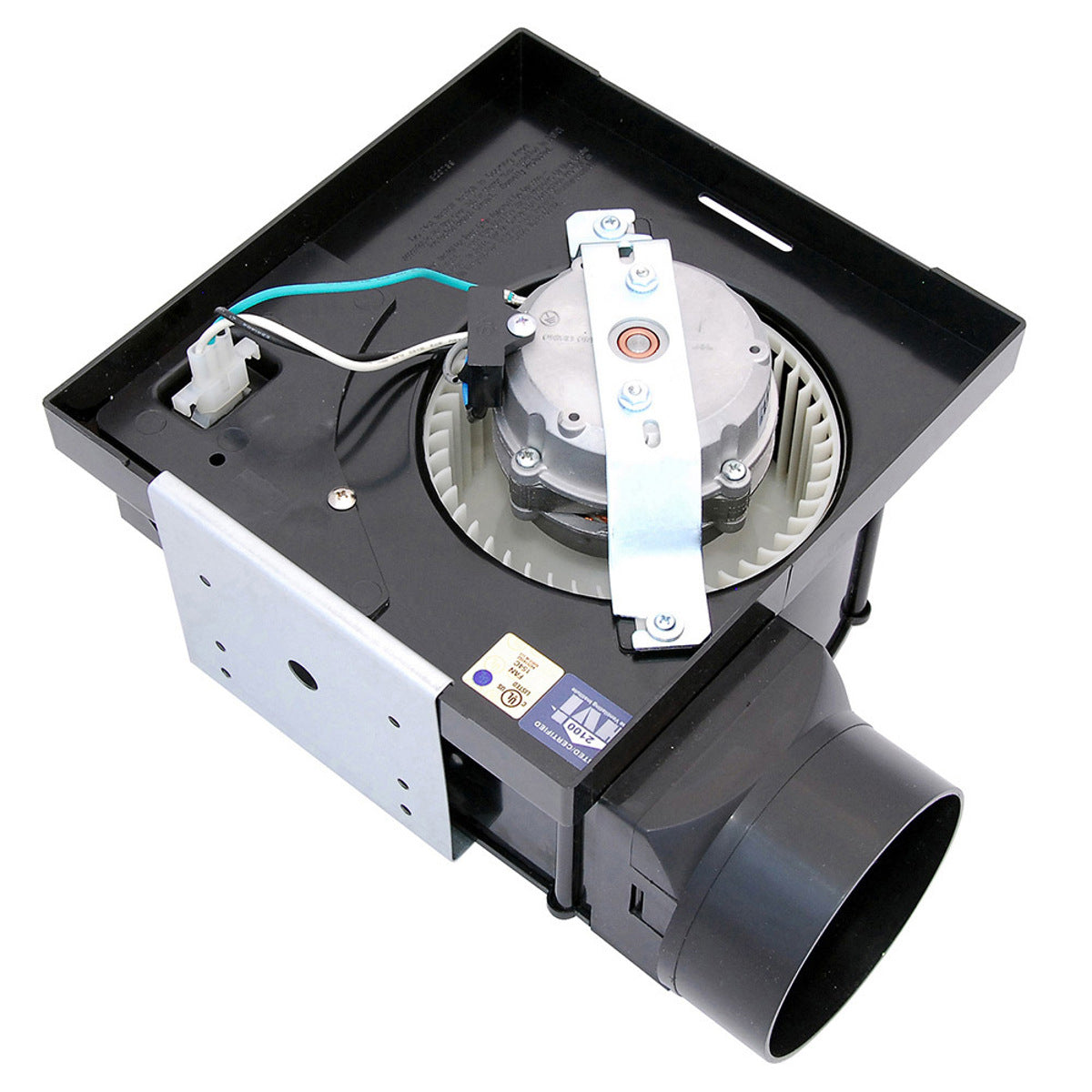

The Air King BFQ90 is a 90 CFM bathroom exhaust fan with a low-profile grille that blends into the ceiling. Featuring a Snap-In System for simple installation, the BFQ90 has a 4-inch plastic duct collar with a built-in damper to protect against backdrafts and ensure quiet operation. Effective for areas up to 115 square feet, it provides ventilation in most home applications.
- Quiet operation with an airflow of 90 CFM and a sound level of 2.5 sones.
- Includes a non-metallic backdraft damper to eliminate back drafts.
- Simple installation with Air King's Snap-In System.
Product Highlights
The Air King BFQ90 exhaust fan provides ventilation with a snap-in system, backdraft damper, and quiet operation.
Product Information
Standard Information
-
Brand: AIR KING
-
Manufacturer Part Number: BFQ90
-
Country of Origin: United States
Technical Specifications
-
Air Flow (CFM): 90
-
RPM: 1375 RPM
-
Voltage: 120V/60Hz
-
UL Listed: Yes
-
Type: Bathroom Fan
-
Frequency: 60 Hz
-
Duct Connection: 4 Inches
-
Current Draw: 0.45 Amps
-
Maximum Air Flow: 90 CFM
-
Mount Type: Ceiling
-
Maximum Sound Level: 2.5 Sones
-
Power Consumption: 50 Watts
-
Includes Light: No
-
Product Category: Fans
-
Amps: 0.5
-
Bearing Type: Sleeve
-
Brand: Air King
-
Cycle/Hertz: 60 Hz
-
Duct Size: 4"
-
Energy Star Rated: No
-
Grille Color: White
-
Grille Size (L x W): 10" x 10"
-
Housing Material: PC/ABS Polymeric
-
Phase: Single
-
Prop 65: No
-
Sones: 2.5
-
Watts: 50
-
Wheel Material: Plastic
-
Catalog Number: BFQ90
-
Manufacturer: Air King
-
Mounting: Snap-In
-
Item: Heavy Duty High Performance Fan
-
Product Type: Heavy Duty High Performance Fan
-
Electric fan design: Exhaust Fan
-
Power Source: Corded Electric
-
Style: Classic
-
Room Type: Bedroom, Home Office, Kitchen, Living Room
-
Recommended Uses For Product: Exhausting, Ventilating
-
Controller Type: Button Control
-
Number of Speeds: 1
-
Noise Level: 3 Sones
-
Wattage: 50 watts
-
Air Flow Capacity: 90 Cubic Feet Per Minute
-
Switch Type: Push Button
-
Indoor Outdoor Usage: Indoor
-
Control Method: Touch
-
Light Type: LED
-
Is Product Cordless: No
-
Number of Power Levels: 1
-
Material: Plastic
-
Blade Material: Plastic
-
CFM @ .1 SP: 90
-
Sones @ .1 SP: 3.0
-
Sound Level: Moderate
-
Effective Ventilation Area: 90 to 115 sq. ft.
-
ASHRAE 62.2 Ventilation: Local
-
ENERGY STAR� certified: No
-
Can be used to Comply with California Title 24 requirements: No
-
CALGreen: No
-
Collar / Damper: Plastic
-
Housing: UL listed high impact plastic housing
-
Air Volume (CFM): 90 CFM
-
Duct Diameter: 4-In round
-
Grill: 10-In x 10-in white polymeric grill
