Product Description

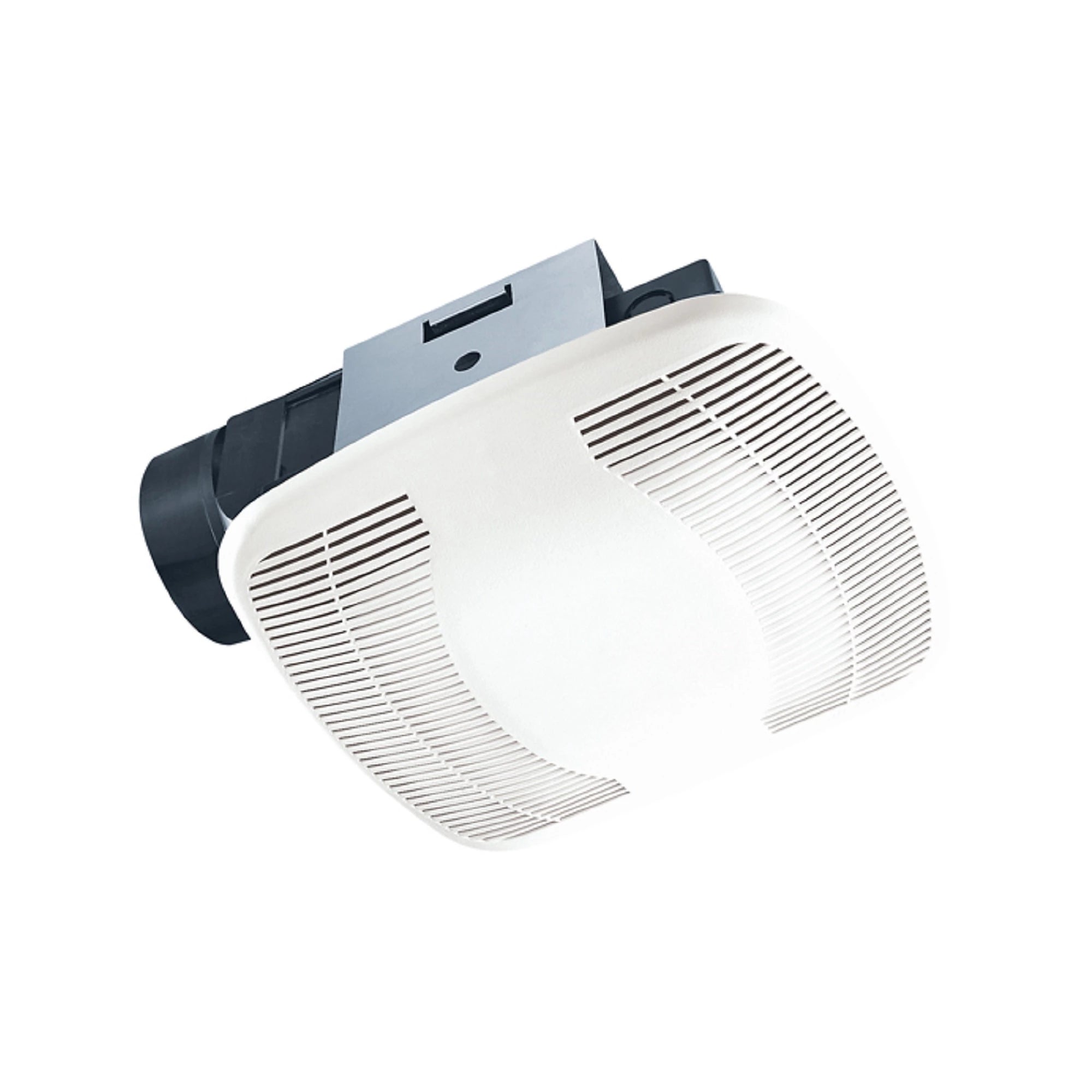

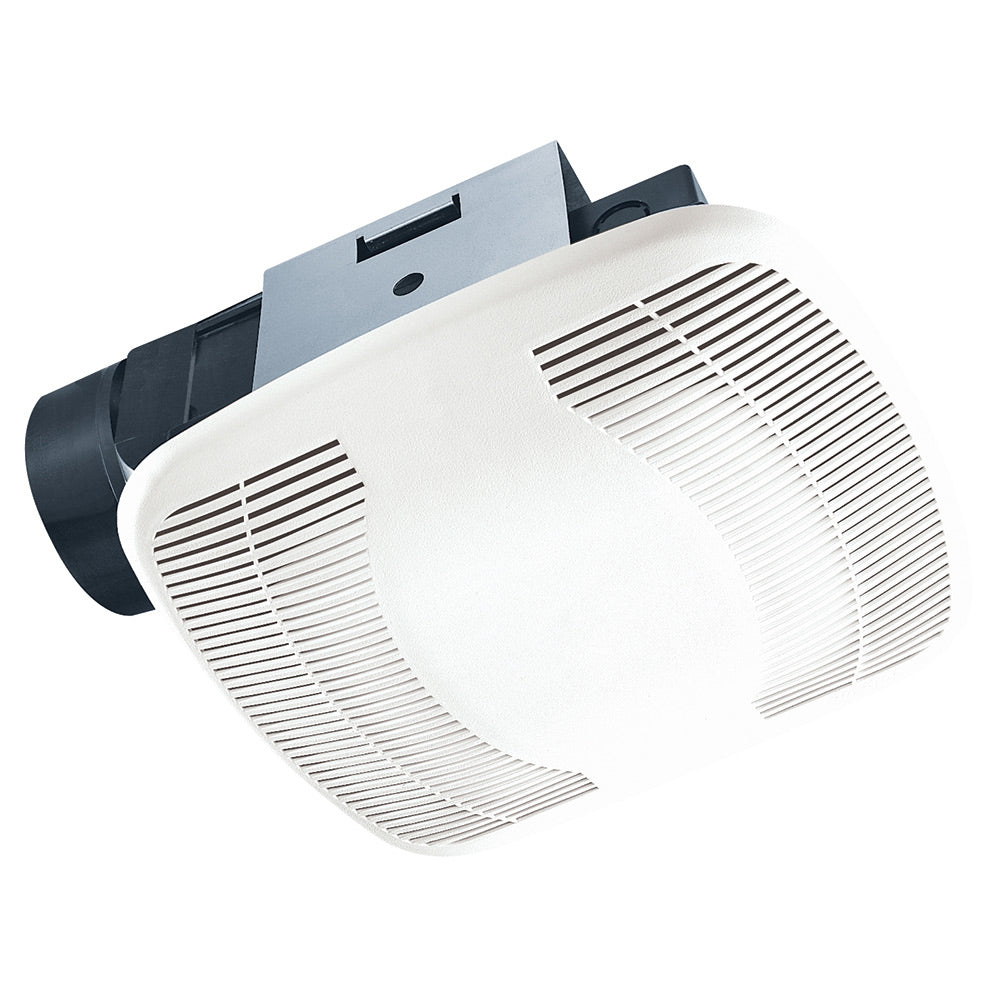

The Air King BFQ140 is a high-performance exhaust fan designed for effective ventilation. With an airflow of 120 CFM and a sound level of 4.0 sones, it provides ventilation with minimal noise. The snap-in system makes installation simple, and the non-metallic backdraft damper eliminates back drafts. It is suitable for bathrooms up to 150 square feet.
- Features a snap-in installation system for easy setup.
- Includes a non-metallic backdraft damper to prevent air backflow.
- The low-profile grille sits nearly flush with the ceiling.
Product Highlights
This exhaust fan provides effective ventilation with a quiet operation, easy installation, and a low-profile design.
Product Information
Standard Information
-
Brand: AIR KING
-
Manufacturer Part Number: BFQ140
-
Country of Origin: United States
Technical Specifications
-
Air Flow (CFM): 120
-
UPC: 083162214010
-
RPM: 2625 RPM
-
Voltage: 120
-
UL Listed: Yes
-
Product Width: 9.125 Inches
-
Type: Bathroom Fan
-
Product Height: 4.75 Inches
-
Product Length: 8.5 Inches
-
Frequency: 60 Hz
-
Product Category: Fans
-
Duct Connection: 4 Inches
-
Current Draw: 0.8 Amps
-
Maximum Air Flow: 120 CFM
-
Warranty: 1 Year
-
Mount Type: Ceiling
-
Maximum Sound Level: 4 Sones
-
Country of Origin: United States
-
Power Consumption: 68 Watts
-
Includes Light: No
-
Amps: 0.83 Amps
-
Bearing Type: Sleeve
-
Brand: Air King
-
Cycle/Hertz: 60 Hz
-
Duct Size: 4"
-
Energy Star Rated: No
-
Grille Size (L x W): 10" x 10"
-
Housing Dimensions: 8 1/2" x 9 1/8" x 4 3/4"
-
Housing Material: PC/ABS Polymeric
-
Phase: Single
-
Prop 65: No
-
Sones: 4
-
Watts: 68
-
Wheel Material: Plastic
-
CFM @ .1 SP: 120
-
Sones @ .1 SP: 5.0
-
Effective Ventilation Area: 120 to 150 sq. ft.
-
ASHRAE 62.2 Ventilation: –
-
ENERGY STAR® certified: No
-
Can be used to Comply with California Title 24 requirements: No
-
CALGreen: No
-
Collar / Damper: Plastic
-
Mounting: SNAP-IN Bracket
-
Housing: ABS Plastic
-
Grill Size: 10-in x 10-in
-
Housing Length: 9.0625 in.
-
Housing Width: 8.5 in.
-
Housing Depth: 4.75 in.
-
Grille Length: 11.6875 in.
-
Grille Width: 10.75 in.
-
Max Ventilation Area: 150 sq. ft.
-
Fan Type: Bath Fan
-
Grille Finish: Whites
-
Installation Type: Full Install
-
Amperage: 0.75
-
MPN: BFQ140
-
SKU: BFQ140
-
CFM @ .25 SP (High Speed): 109
-
Maximum Fan Wattage: 97 Watts
-
Fan Speed: 2625 RPM
-
Grill Dimensions: 11-5/8" D x 10-3/4" W
-
Fan Housing Dimension: 8-3/4" D x 9" W x 4-3/4" H
-
Certifications: cETLus
